1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S Chrome

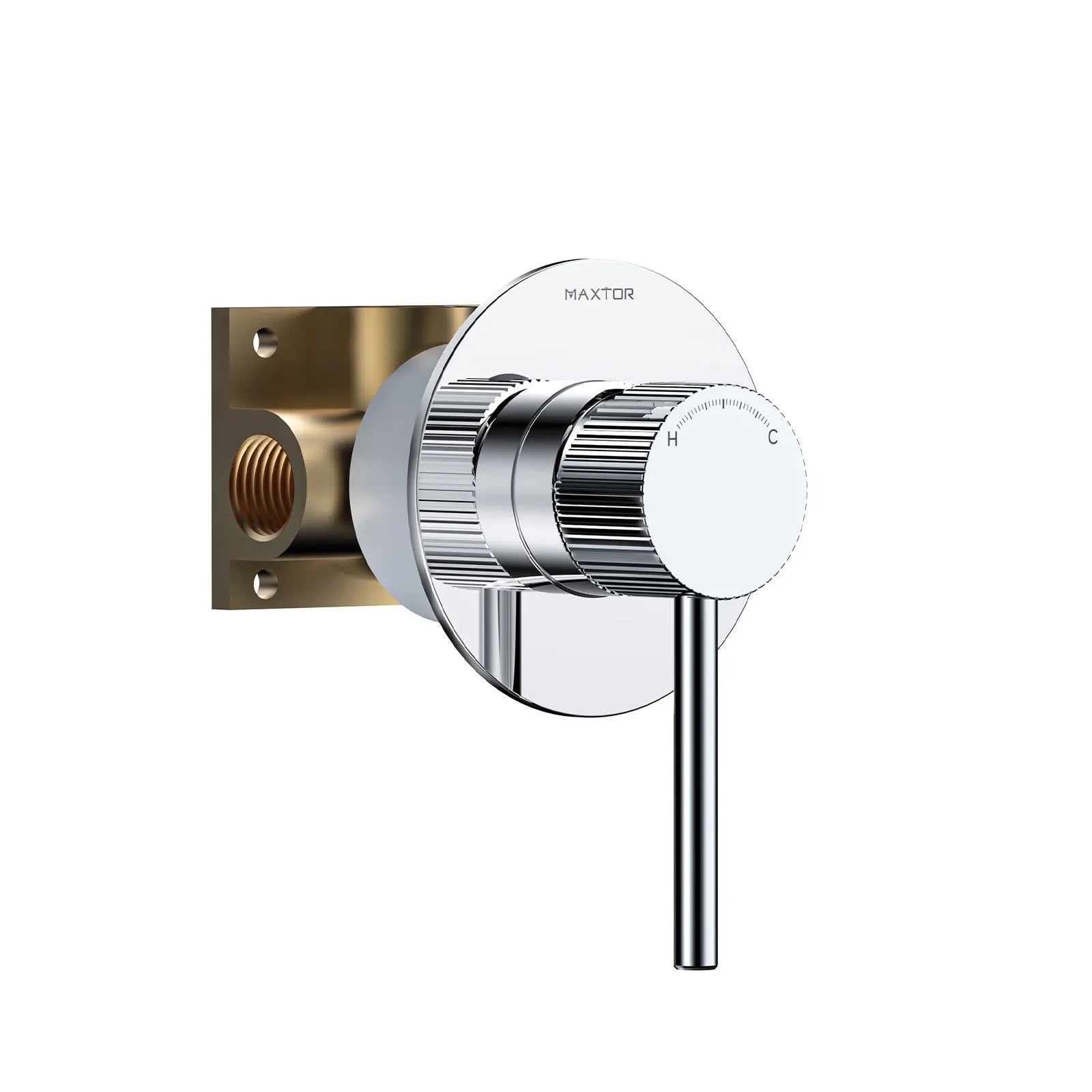

  • 1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S Chrome

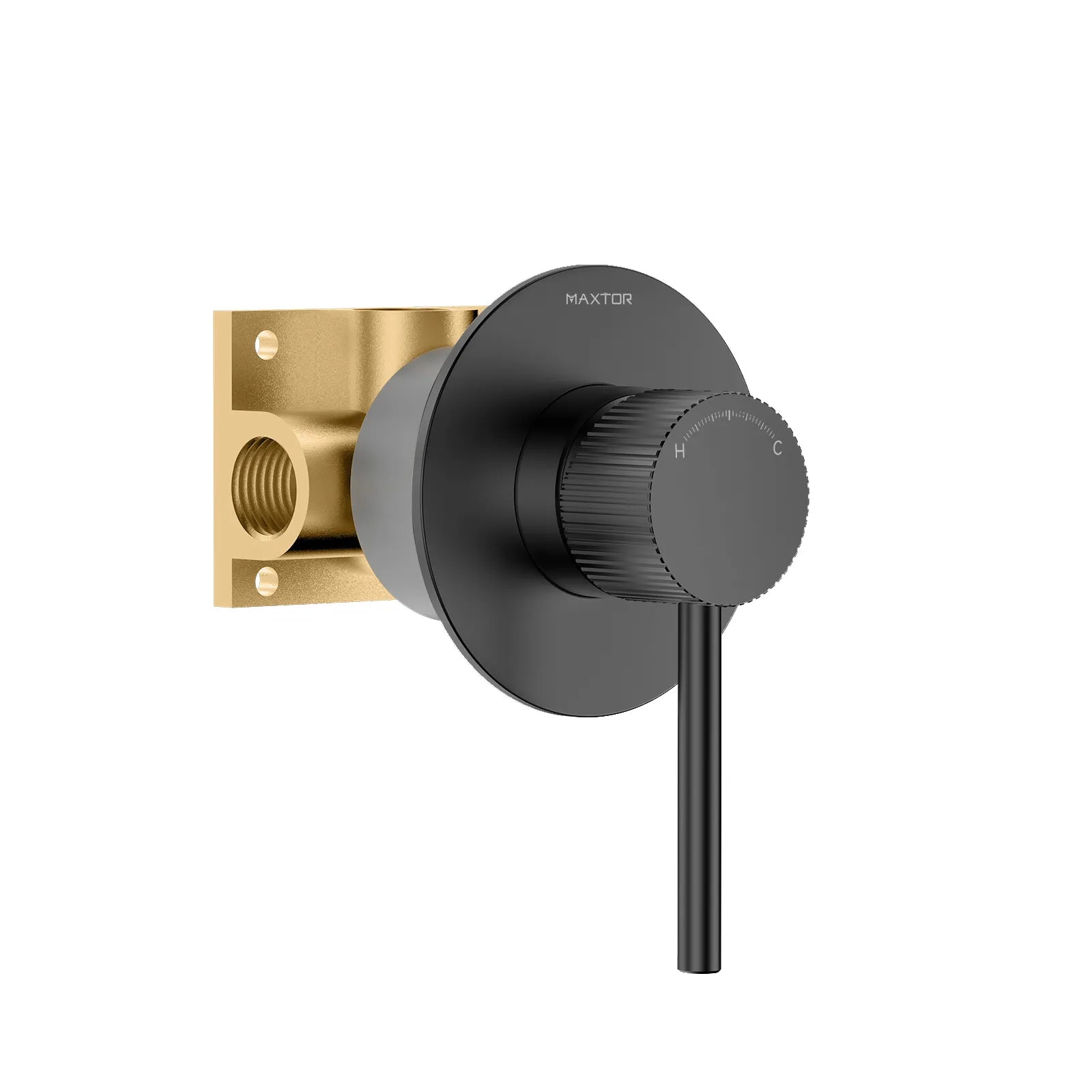

  • 1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S Matte Black

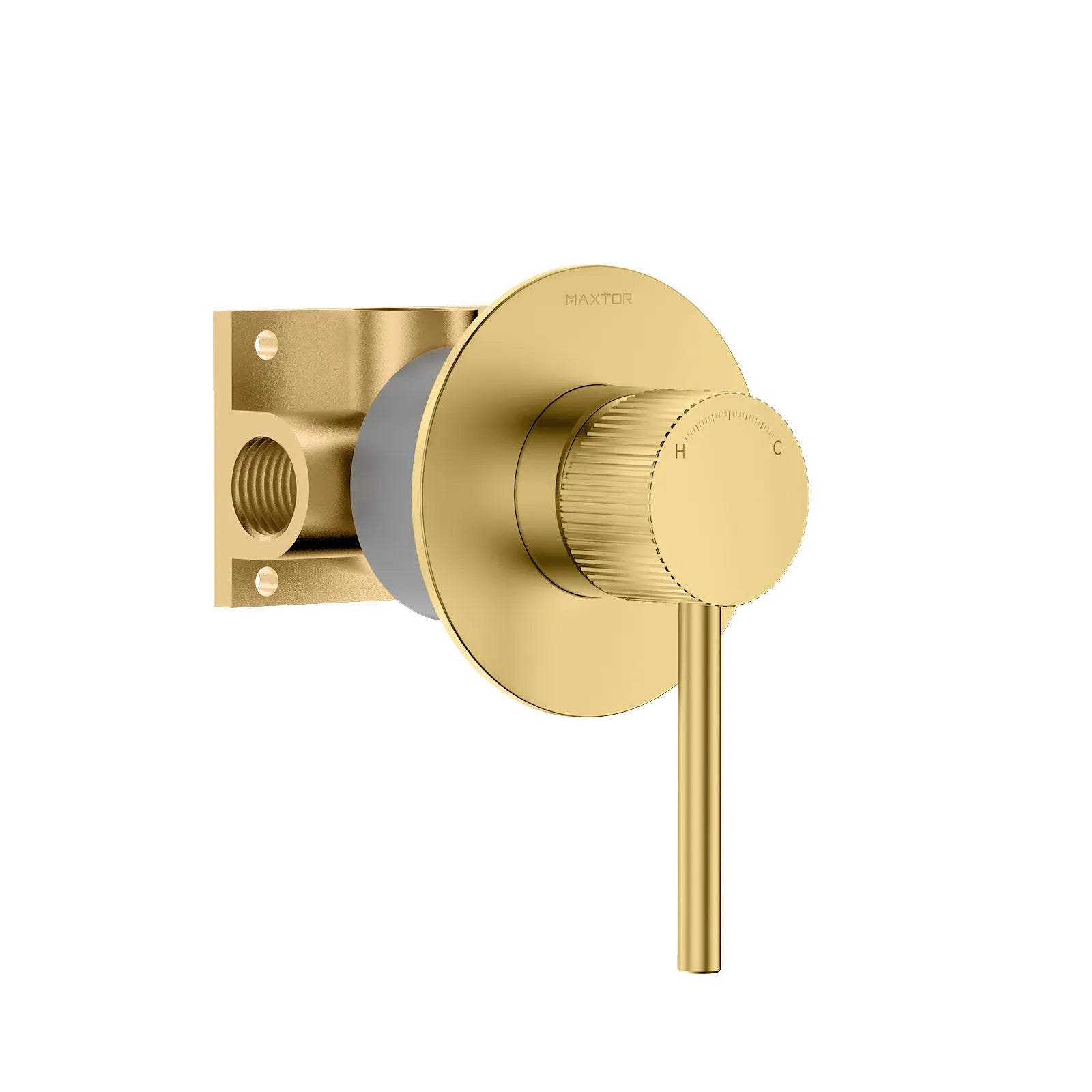

  • 1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S Brushed Gold

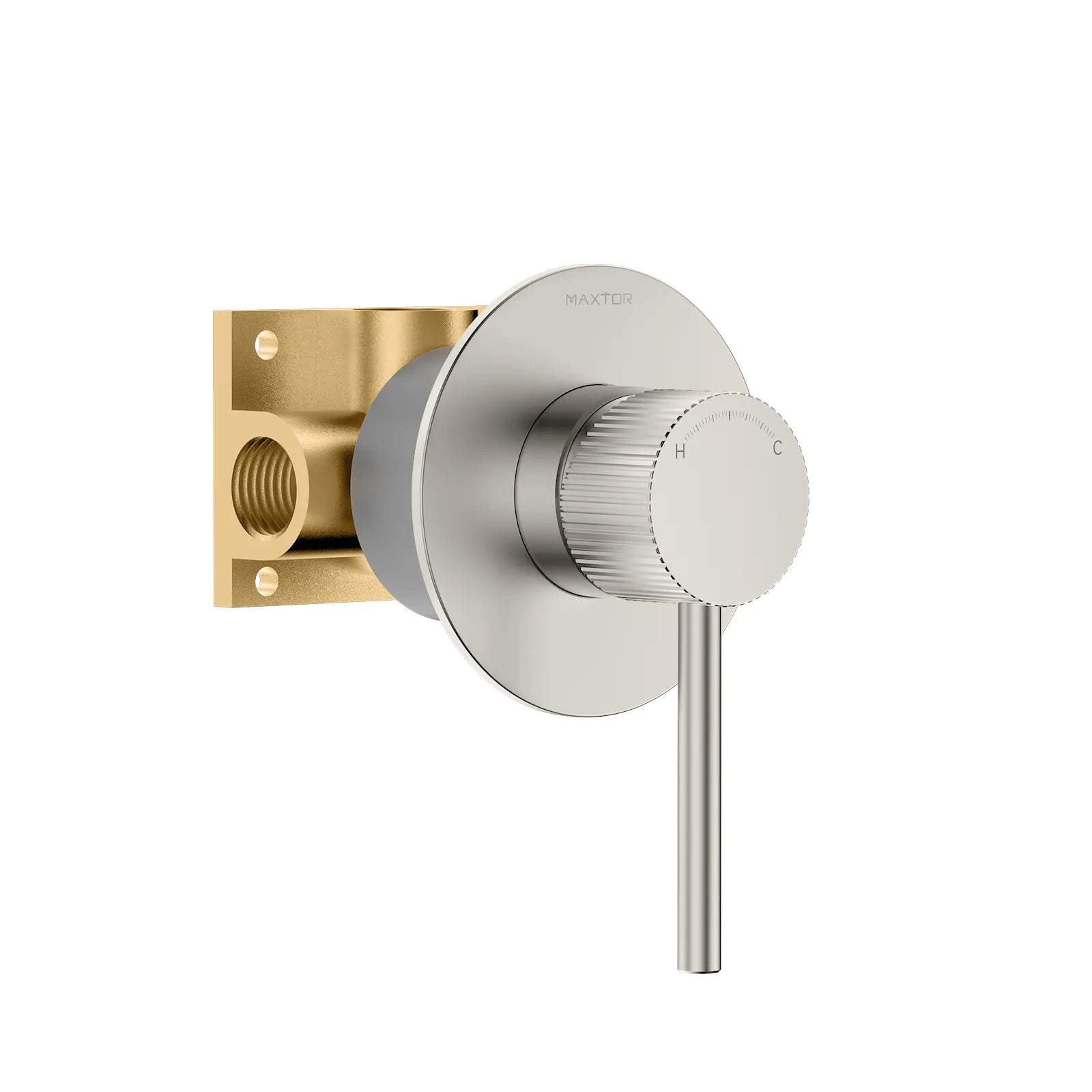

  • 1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S Brushed Nickel

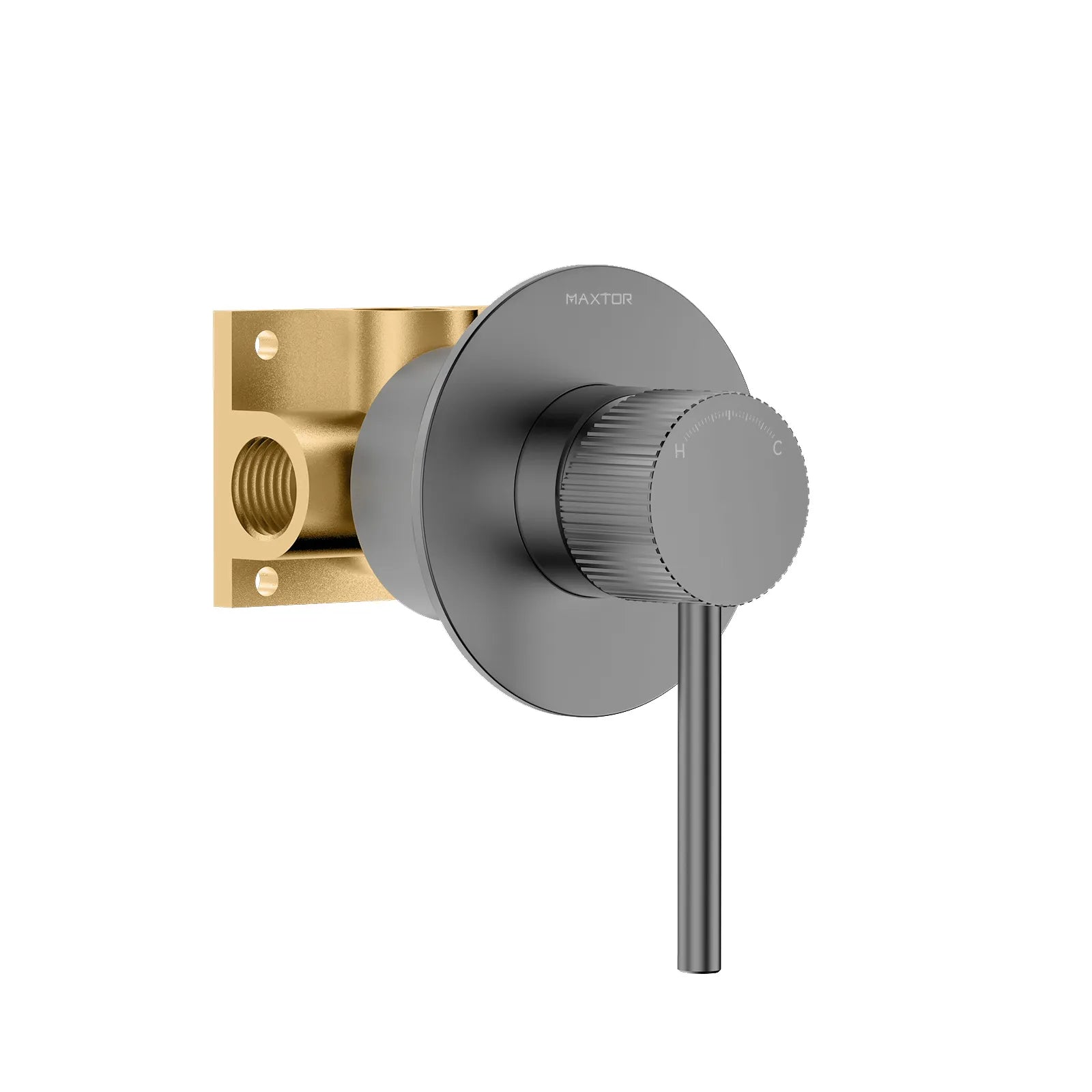

  • 1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S Brushed Gun Metal
1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S
1 Way Wall Concealed Pressure Balance Shower Valve with Trim Plate – Knurled Handle – MT601031S
  • 1 way concealed shower control – Designed for a single outlet such as an overhead shower or shower rail, ideal for simple, clean layouts.
  • Solid brass rough-in valve – Heavy-duty brass body sits safely inside the wall and resists corrosion for long-term stability.
  • Lead-free option for key markets – Lead-free brass version is available and required for New Zealand, Australia and United States projects to meet local regulations.
  • Spain CITEC 45mm cartridge – Pressure balance ceramic cartridge tested over 500,000 cycles for smooth movement and leak-free performance.
  • Pressure balance safety – Helps keep water temperature more stable when pressure changes in the hot or cold line, reducing sudden hot or cold shocks while showering.
  • Knurled brass hand-wheel – Textured metal surface gives precise grip even with wet hands and allows fine control of water flow and temperature.
  • Minimal round trim design – Ø120x3mm SUS304# stainless steel trim plate sits flat on the wall and works with most modern bathroom styles.
  • Multiple premium finishes – Chrome, brushed nickel, brushed gold, gunmetal and matte black finishes match MAXTOR showers, mixers and accessories across the bathroom.
  • Easy installation – Compact valve body, universal connections and clear hot/cold markings help plumbers install quickly and reduce labour cost.
  • Service friendly – Cartridge and trim can be accessed from the front for future maintenance without opening the wall.
  • Project-ready packaging – Each set is packed in a protective white or brown box, convenient for storage, transport and job-site handling.
ColorChrome

MODEL: MT601031SCH

VIEW THE WHOLE COLLECTION

Original:
$321.00 USD
  • Product Feature
  • Documents & Specs
  • Q&A

MAXTOR MT601031S is a 1 way wall concealed pressure balance shower valve with a clean round trim plate and knurled brass control handle.
It is built for projects that need stable temperature control, reliable quality and finishes that match modern showers and accessories.

  • Model: MT601031S (CH / BN / BG / GM / MB finishes)
  • Function: 1 way wall concealed pressure balance shower valve (single outlet)
  • Rough-In Body: Solid brass construction
  • Lead-Free Option: Lead-free brass available for New Zealand, Australia and United States markets
  • Trim Plate: Ø120 x 3 mm SUS304# stainless steel round plate
  • Cartridge: Spain CITEC 45 mm water pressure balance ceramic cartridge, 500,000 cycle test
  • Handle: Solid brass knurled surface hand-wheel with integrated pin lever
  • Control: Precise adjustment of water flow and temperature
  • Installation: Wall concealed, designed for easy installation to save plumbing time and cost
  • Connections: Standard plumbing connections (suitable for most global markets)
  • Application: For use with overhead showers, shower rails or other single shower outlets
  • Packaging: Packed in protective white or brown box
  • Brand: MAXTOR – professional manufacturer of concealed shower valves and systems

Q1: What does “1 way” mean for this shower valve?

It means the valve controls one single outlet only, for example an overhead shower or a shower rail. There is no built-in diverter for a second or third outlet.

Q2: How does the pressure balance function help in daily use?

The pressure balance cartridge reacts to changes in hot and cold water pressure and adjusts the mix automatically. This helps keep the outlet temperature more stable, reducing sudden spikes of hot or cold water.

Q3: Is this valve suitable for New Zealand, Australia and the United States?

Yes. A lead-free brass version is available for these markets, in line with local low-lead requirements. This makes MT601031 suitable for both residential and project work there.

Q4: Can I access the cartridge without opening the wall?

Yes. The trim plate and handle can be removed from the front, allowing access to the cartridge for cleaning or replacement while the rough-in valve stays inside the wall.

Q5: What type of shower heads can be used with this valve?

Most fixed overhead showers or shower rails with matching pressure and flow requirements can be connected to the outlet of this valve.

Q6: Does the knurled handle get dirty easily?

The fine knurling is designed for grip but remains simple to clean. Wipe with a soft cloth and mild soap, avoiding harsh chemicals or abrasive pads.
