3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131 Chrome

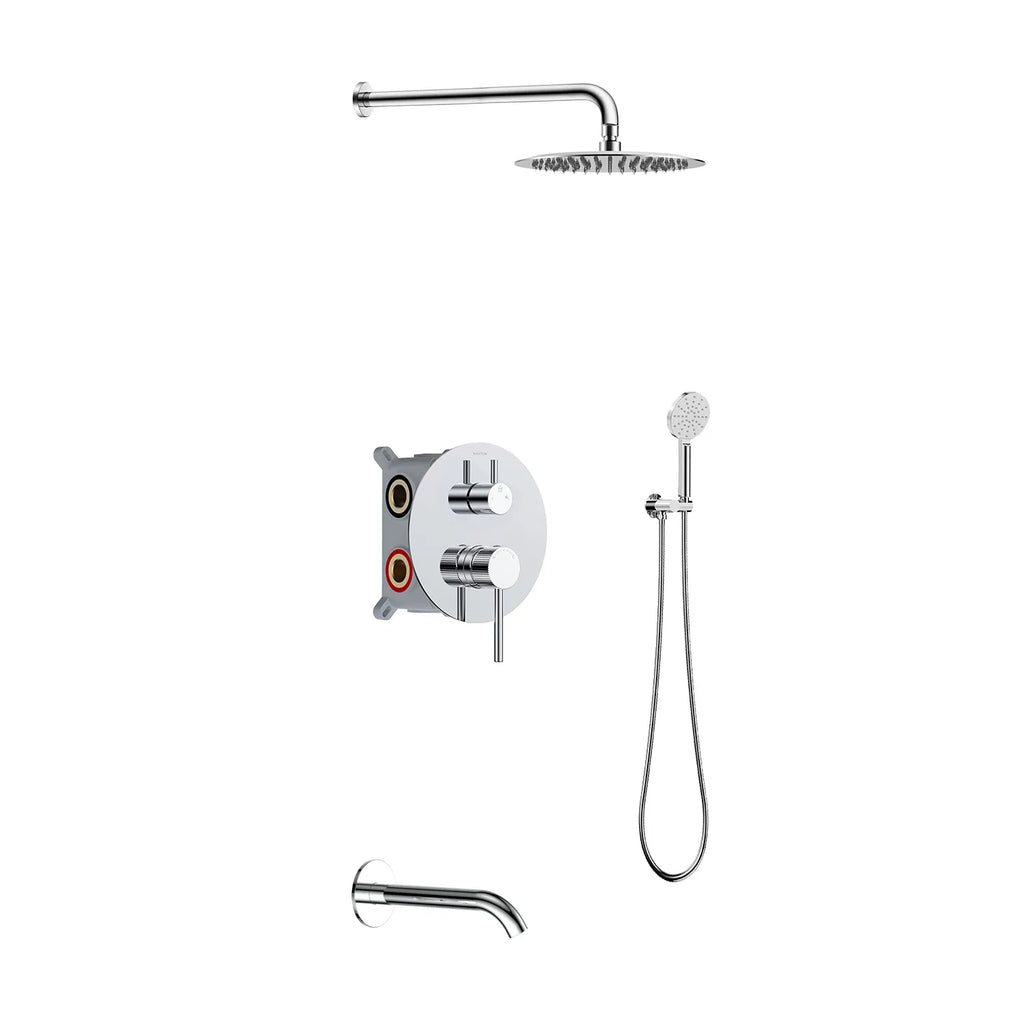

  • 3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131 Chrome

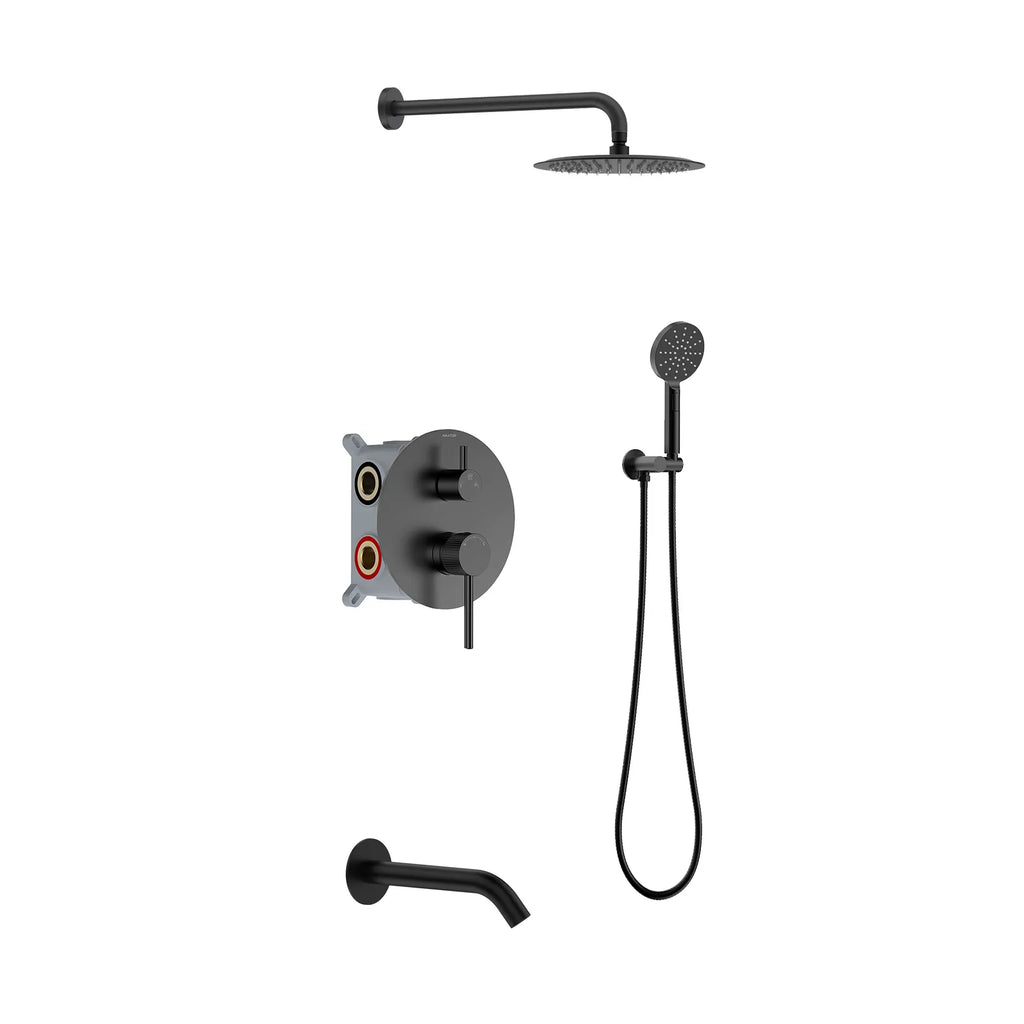

  • 3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131 Matte Black

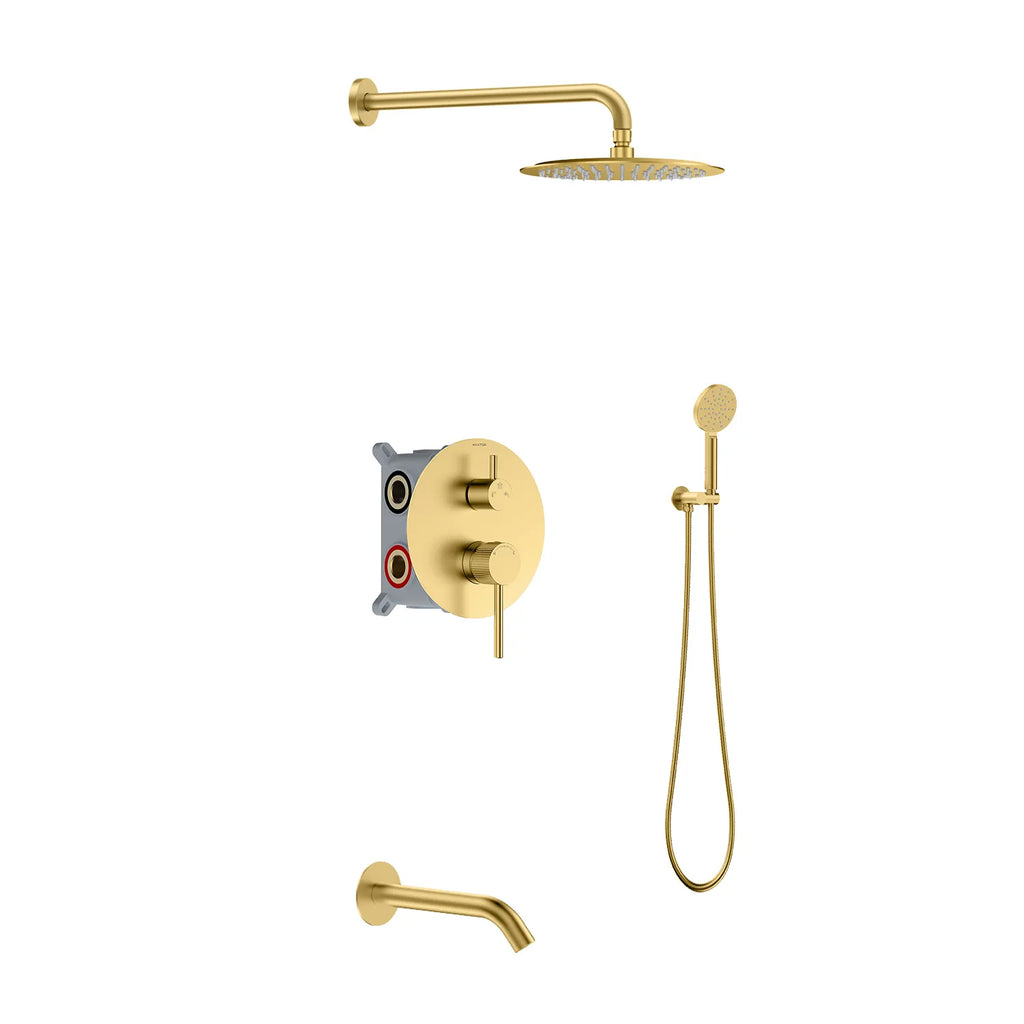

  • 3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131 Brushed Gold

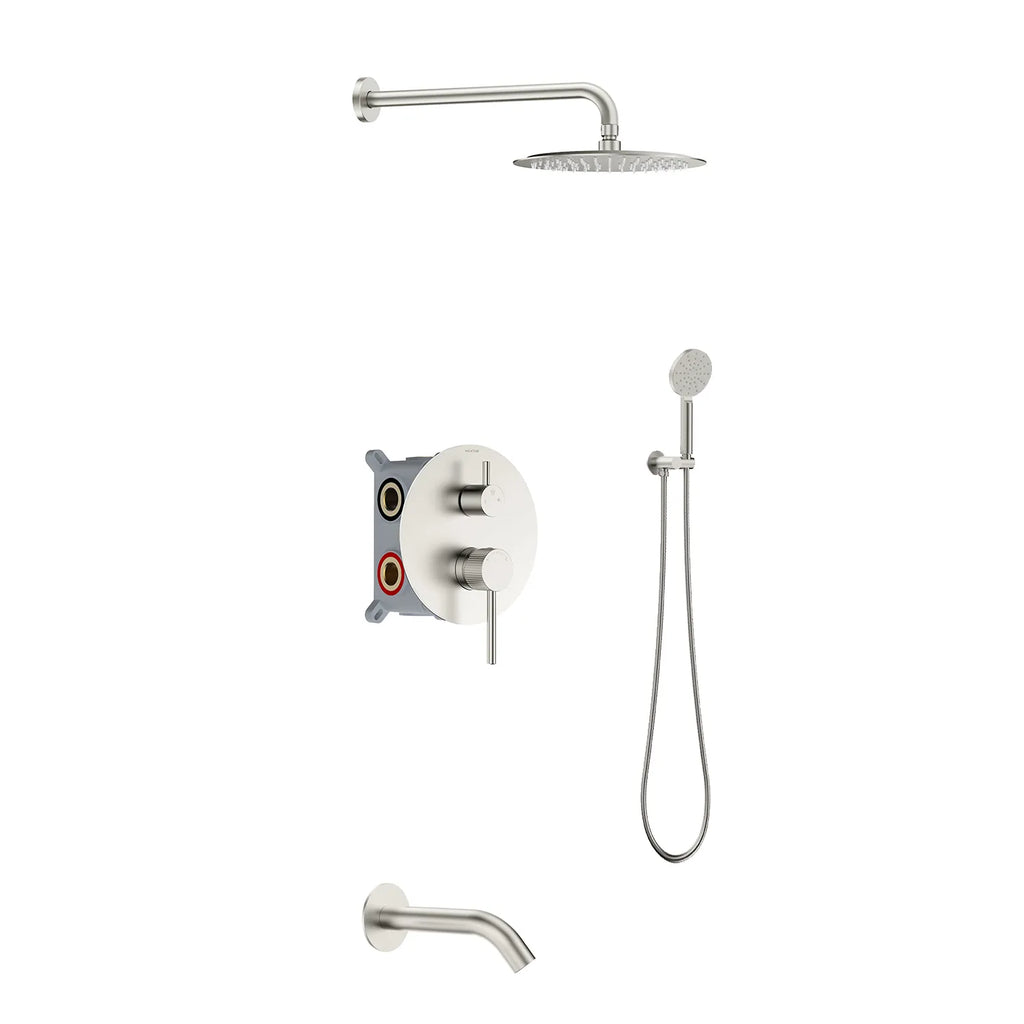

  • 3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131 Brushed Nickel

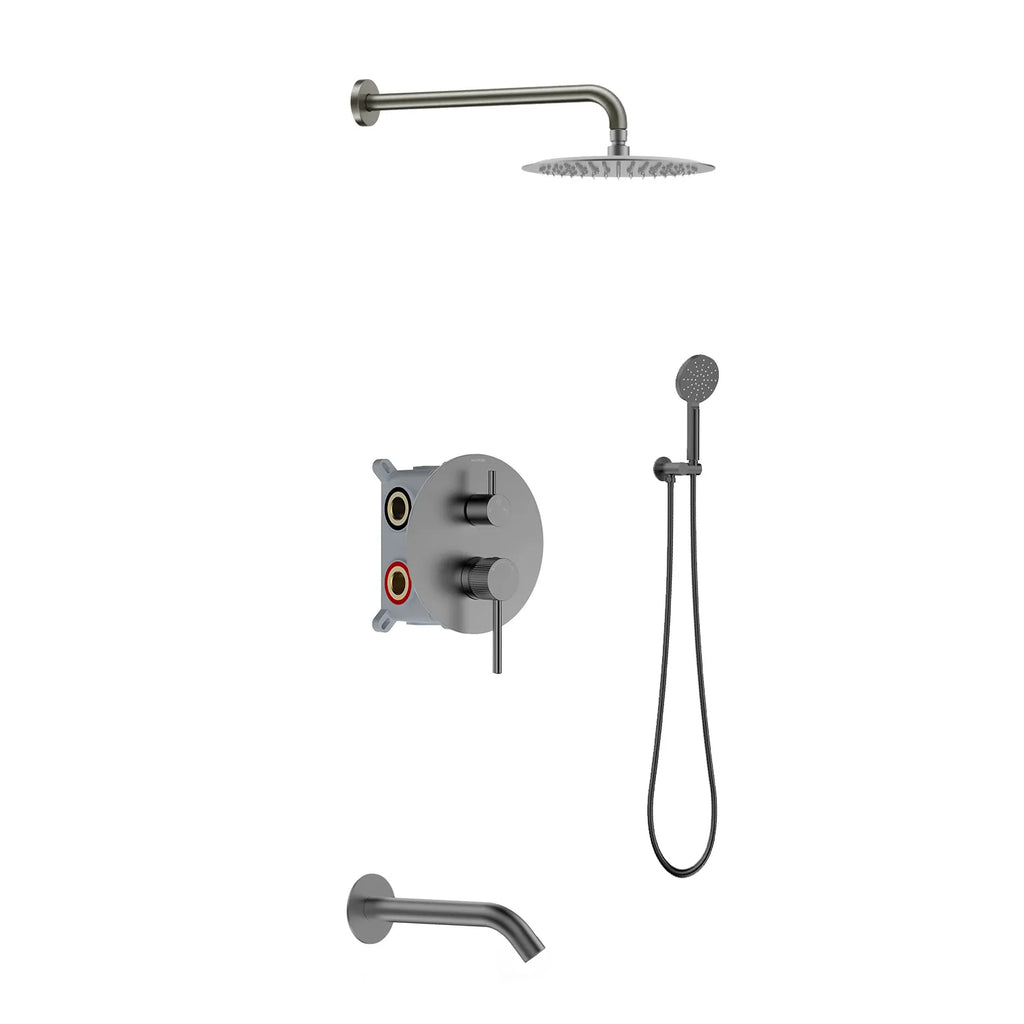

  • 3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131 Brushed Gun Metal
3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131
3 Way Lead-Free Wall Concealed Pressure Balance Shower System with Tub Spout & Hand Shower – AB613131
  • 3 way lead-free brass valve – Solid lead-free brass rough-in shower faucet with mixer box handles three outlets: overhead shower, tub spout and hand shower.
  • Pressure balance safety – Spain CITEC 40mm ceramic pressure balance cartridge, tested over 500,000 cycles, keeps temperature more stable and helps prevent sudden hot or cold shocks.
  • Simple single lever control – Brass handle offers smooth, precise adjustment of both water flow and temperature for daily tub and shower use.
  • Metal diverter hand wheel – Clear metal diverter control lets you easily switch between rain shower, tub spout and hand shower outlets.
  • Clean round trim design – Ø180x3mm SUS304# stainless steel escutcheon plate gives a modern, minimal look on the bathroom wall.
  • Comfortable hand shower – ABS handheld shower delivers a soft, comfortable rain spray, ideal for rinsing hair and cleaning the tub.
  • Strong brass hand shower bracket – Wall-mounted brass bracket with NPT 1/2" inlet and outlet keeps the hose connection secure and tidy.
  • Solid brass tub spout – 185mm wall-mounted brass bathtub spout with Swiss Neoperl aerator provides an aerated stream that feels full yet gentle.
  • Wide stainless steel rain head – Ø200x2mm overhead shower with touch-clean soft silicone nozzles gives a large, natural rainfall shower experience.
  • Long stainless steel shower arm – 350mm SUS304# shower arm with G 1/2" thread offers enough reach for a more comfortable showering space.
  • Explosion-proof hose – 1500mm SUS304# stainless steel handheld shower hose is anti-twist and explosion-proof for safer everyday use.
  • Adjustable mixer box depth – Shower mixer box installation depth can be adjusted from 60mm to 92mm, making it easier to match different wall structures.
  • Time-saving installation – Pre-assembled mixer box, standard threads and clear connections help plumbers save plumbing cost and time.
  • Project-ready packaging – Each complete set is packed in a protective white or brown box for easy warehousing and delivery.
ColorChrome

MODEL: AB613131CH

VIEW THE WHOLE COLLECTION

Original:
$957.00 USD
  • Product Feature
  • Documents & Specs
  • Q&A

MAXTOR AB613131 is a 3 way solid lead-free wall concealed pressure balance shower system with mixer box and trim plate kit.
One compact valve controls a 200mm rain shower, 185mm tub spout and handheld shower, creating a clean and practical tub & shower combo for modern bathrooms.

  • Model: AB613131 (BG / BN / CH / GM / MB finishes)
  • Function: 3 way concealed pressure balance system – overhead shower + tub spout + hand shower
  • Main Body Material: Solid lead-free brass shower faucet rough-in valve
  • Box & Trim: Mixer box with round trim plate kit
  • Cartridge: Spain CITEC 40mm ceramic water pressure balance cartridge, 500,000 cycle test, non-leakage
  • Handle: Single lever brass handle for precise water flow & temperature control
  • Diverter: Metal diverter hand control for overhead shower, tub spout or hand shower outlet
  • Escutcheon Plate: Ø180x3mm SUS304# stainless steel
  • Hand Shower: ABS handheld shower with comfortable rain spray
  • Hand Shower Bracket: Brass bracket with NPT 1/2" water inlet and outlet
  • Tub Spout: Solid brass 185mm length bathtub spout with Swiss Neoperl aerator, aerated stream
  • Shower Arm: 350mm SUS304# stainless steel shower arm, G 1/2" thread
  • Overhead Shower: Ø200x2mm overhead shower with touch-clean soft silicone nozzles, rainfall spray
  • Hose: 1500mm SUS304# explosion-proof handheld shower hose
  • Connections: Standard G 1/2" and NPT 1/2" threads for easy plumbing
  • Installation Depth: Mixer box adjustable from 60mm to 92mm
  • Installation: Wall concealed installation, designed to save plumbing cost and time
  • Packaging: Complete set packed in white or brown box
  • Brand: MAXTOR – specialist in lead-free brass concealed tub & shower solutions

Applications

  • Residential family bathrooms with a bathtub
  • Apartment and condominium tub & shower combos
  • Hotel and serviced apartment bathrooms needing a neat concealed solution
  • Renovation projects upgrading from exposed tub & shower faucets to concealed systems
  • Design-led bathrooms that want matching finishes (brushed gold, brushed nickel, chrome, gunmetal, matte black) across all outlets


Call to Action
Looking for a lead-free concealed tub & shower system that keeps the wall clean and the shower experience comfortable? Contact MAXTOR for AB613131 prices, finish options and OEM/ODM support for your next bathroom project.

Q1: What does “3 way” mean for this shower system?

It means the built-in valve controls three different outlets: the overhead rain shower, the tub spout and the hand shower. You use the diverter control to choose which outlet works.

Q2: How does the pressure balance cartridge improve safety?

The Spain CITEC pressure balance cartridge adjusts the mix of hot and cold water when the pressure changes in the pipes. This helps keep the outlet temperature more stable and reduces sudden hot or cold shocks while showering.

Q3: Can this system replace a traditional tub & shower faucet?

Yes. AB613131 is designed as a concealed upgrade for tub & shower combinations. It hides the valve in the wall, gives a cleaner look and adds a separate hand shower for more flexible use.

Q4: Is the brass really lead-free?

The rough-in valve and brass components in contact with water are made from lead-free brass, engineered to meet common low-lead regulations in markets such as North America and Australia/New Zealand.

Q5: How do I clean the rain head and hand shower?

Both have soft silicone nozzles. Rub the nozzles with your fingers regularly to remove limescale and keep the spray even, especially in hard water areas.

Q6: What if my wall is thicker than normal?

The mixer box allows an installation depth from 60mm to 92mm, so it can adapt to different wall build-ups like tile plus cement board or brick walls.
