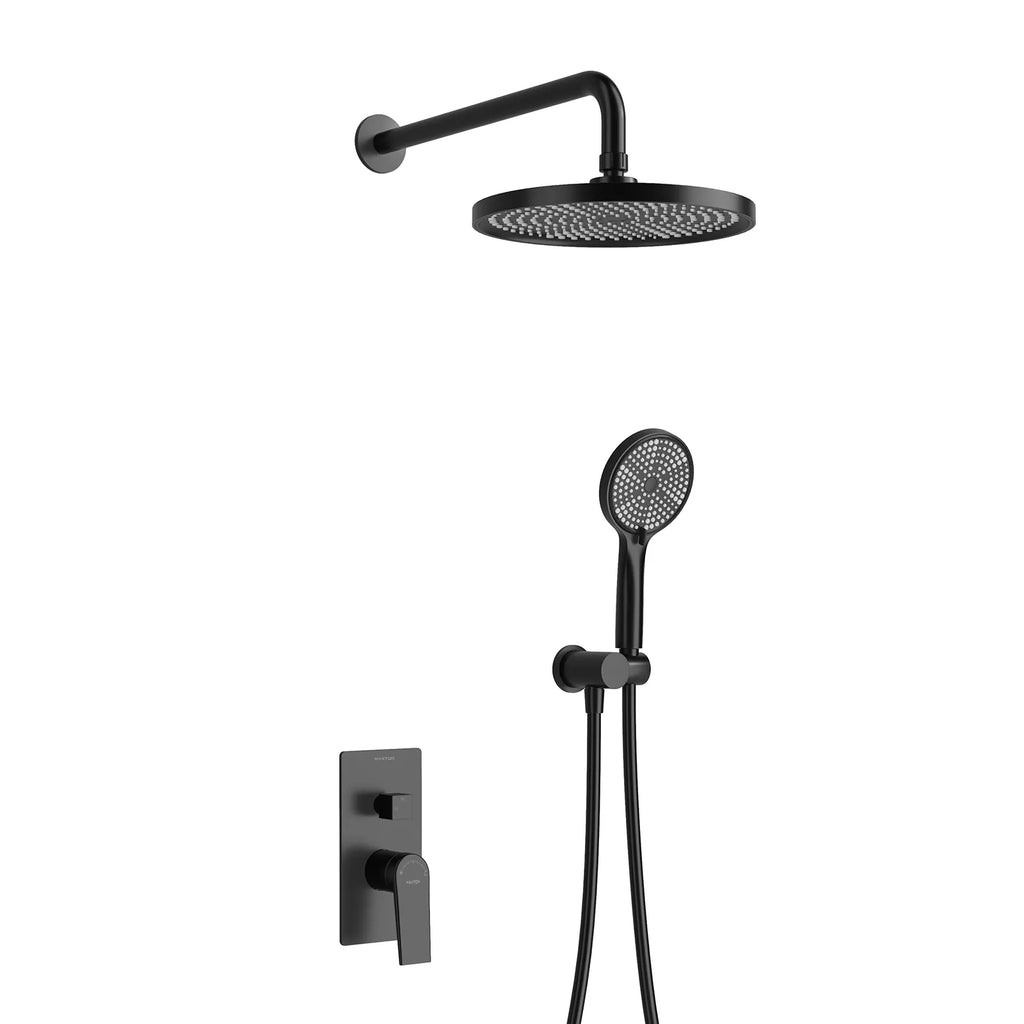

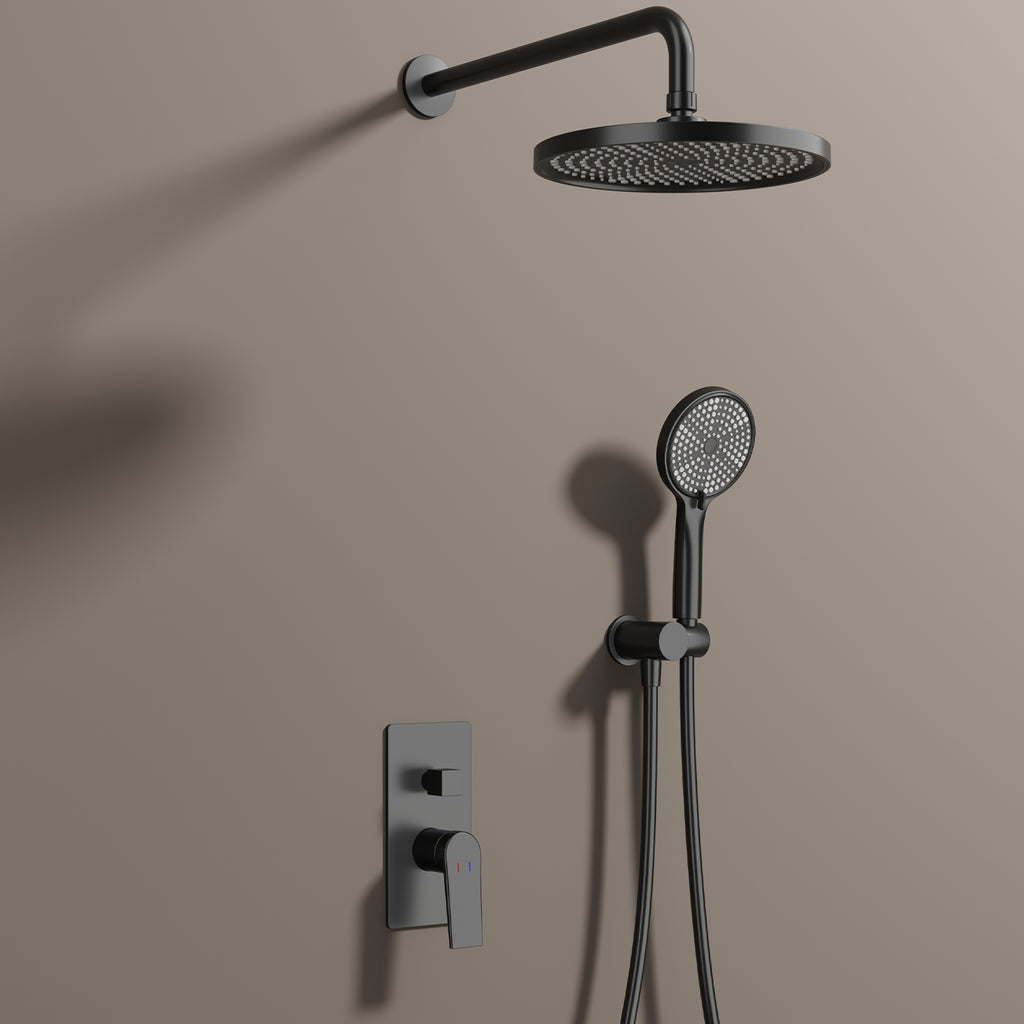

2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Matte Black
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Matte Black

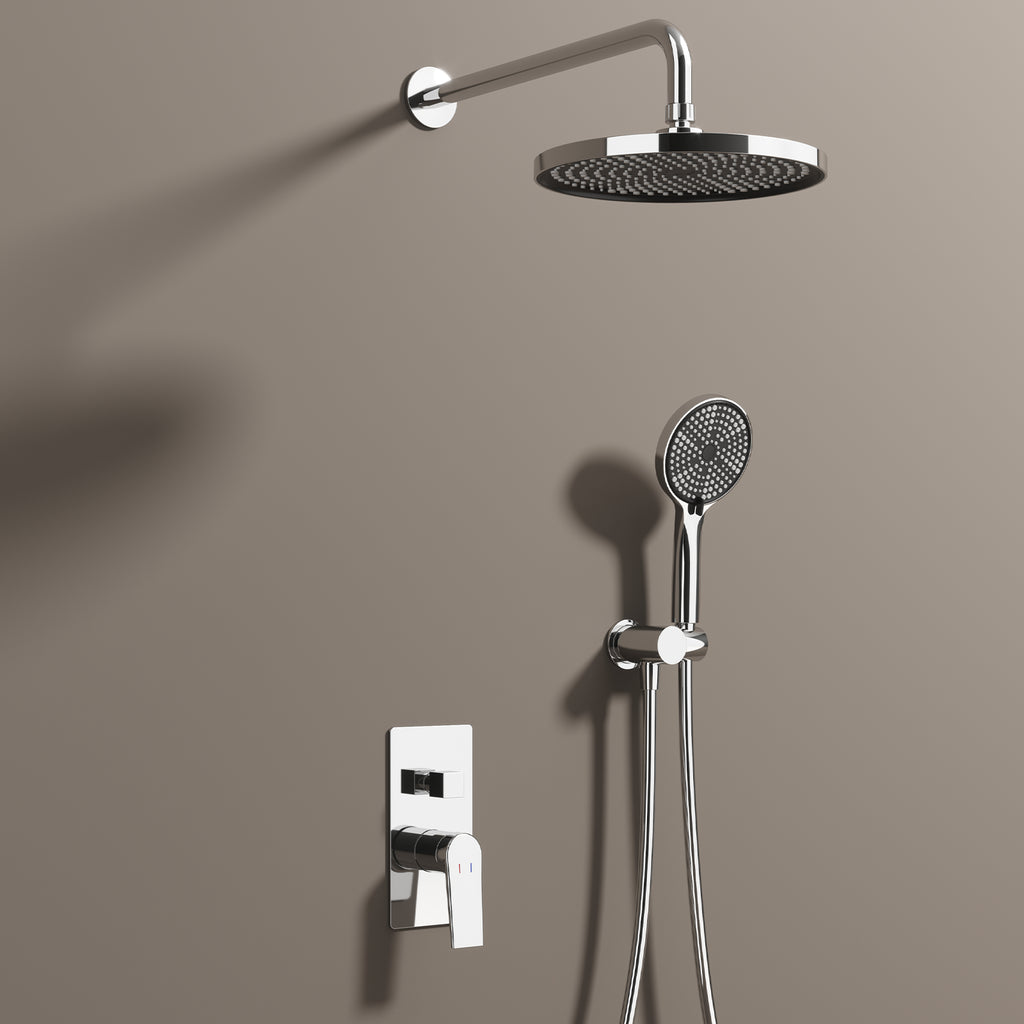

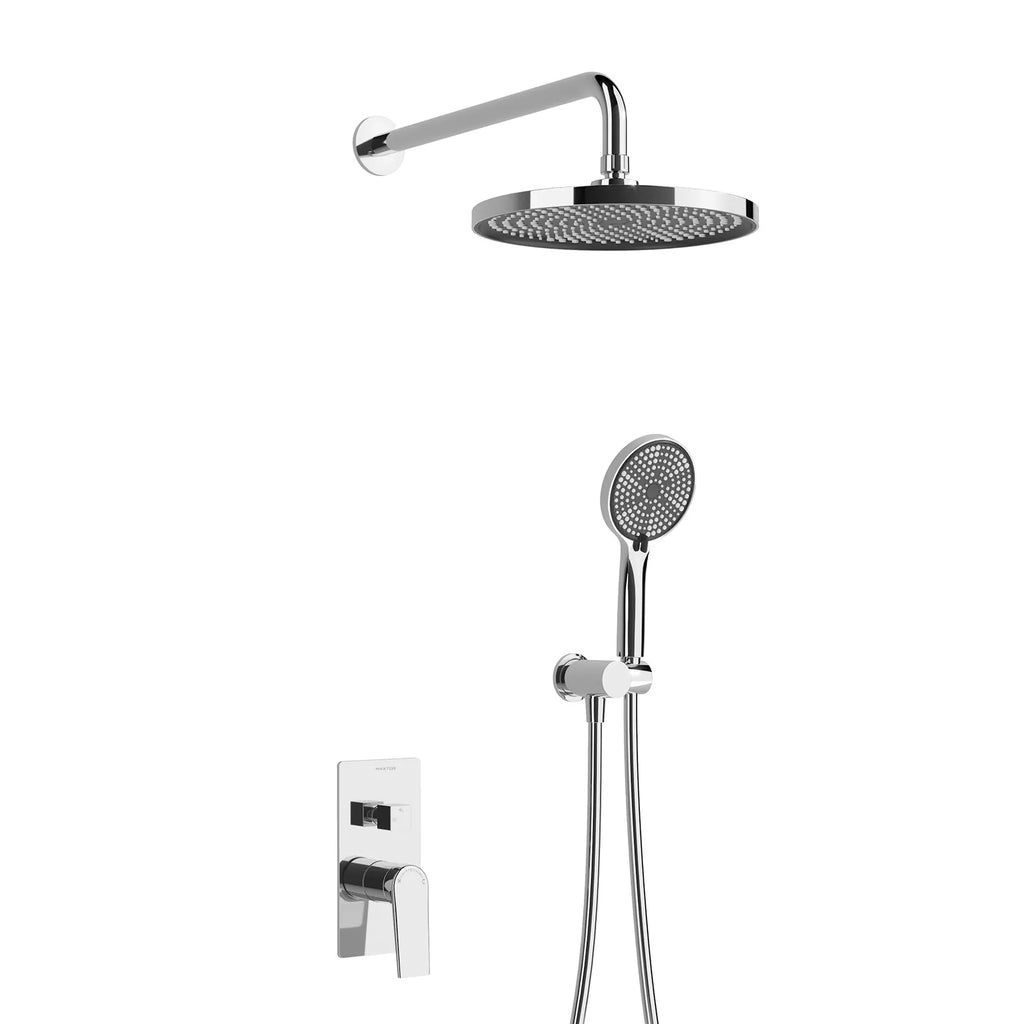

  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Chrome

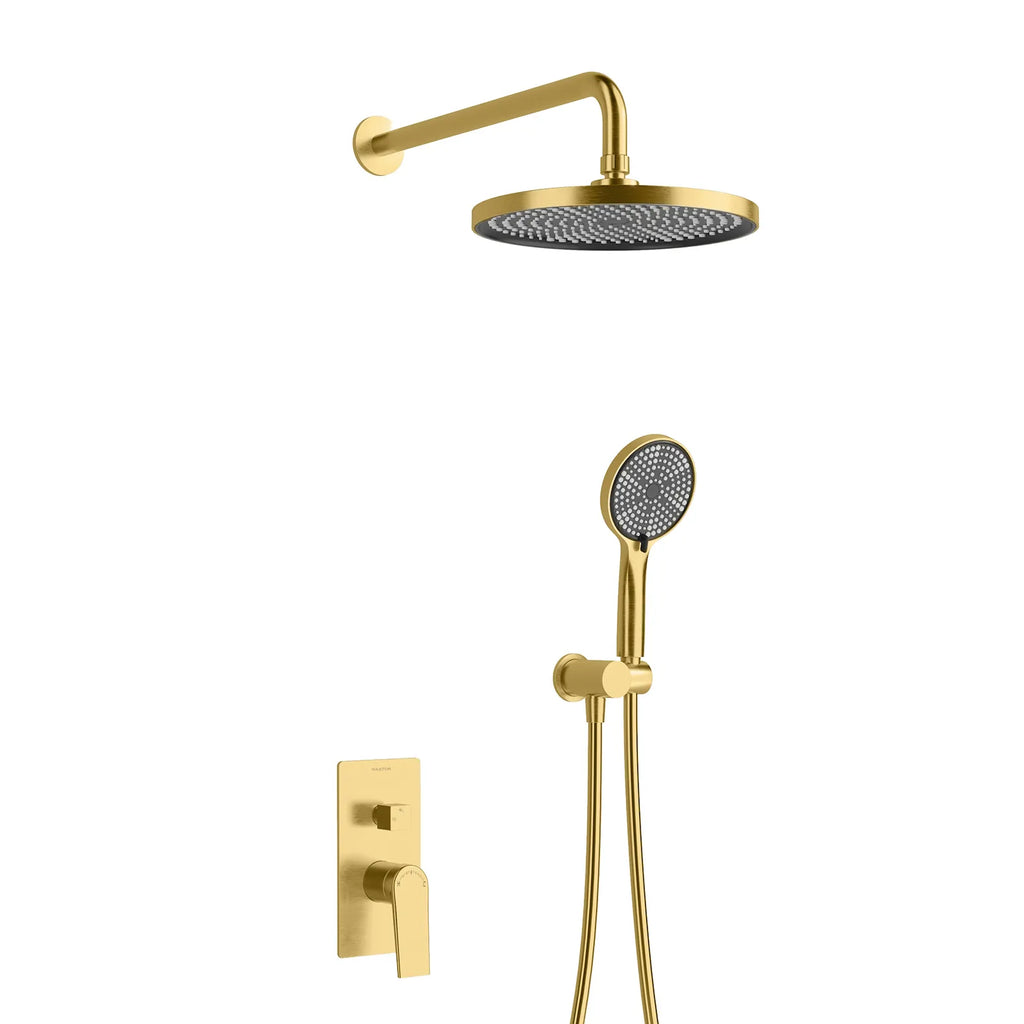

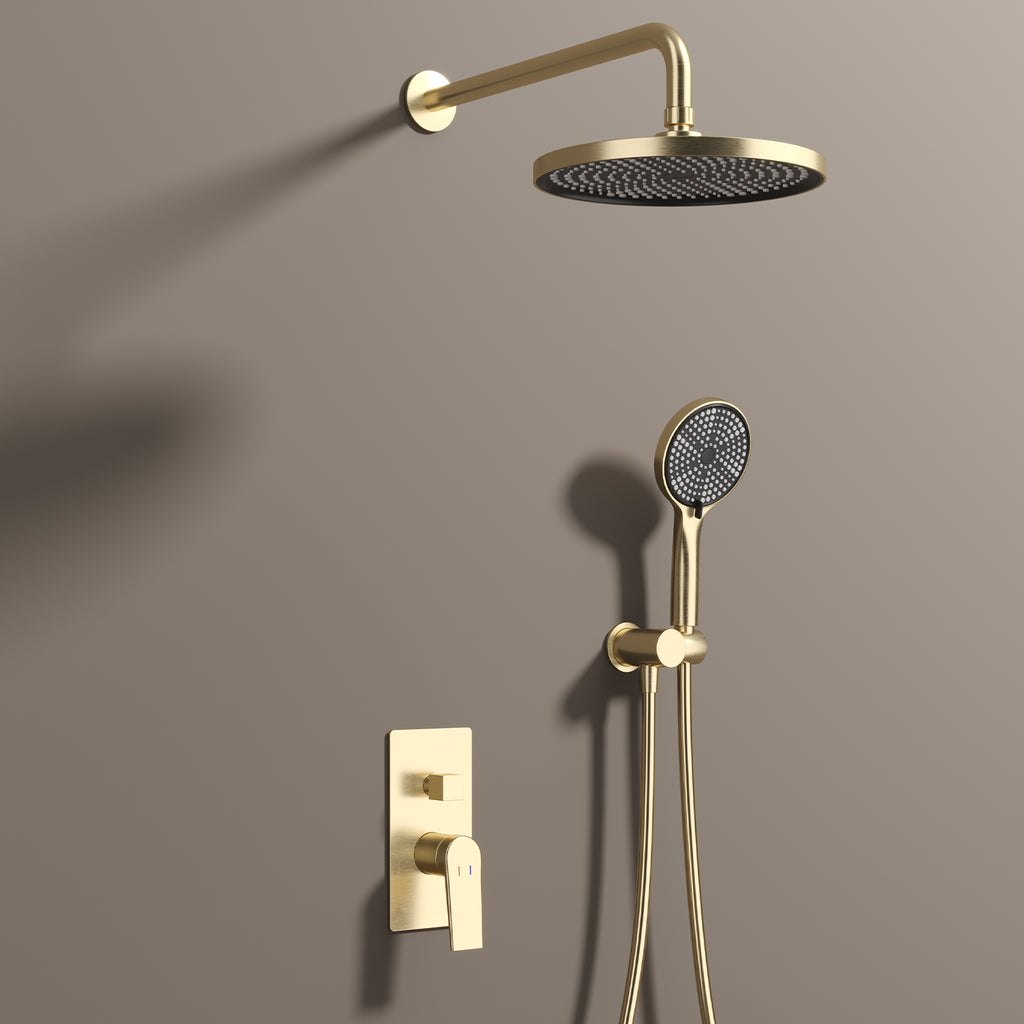

  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Brushed Gold

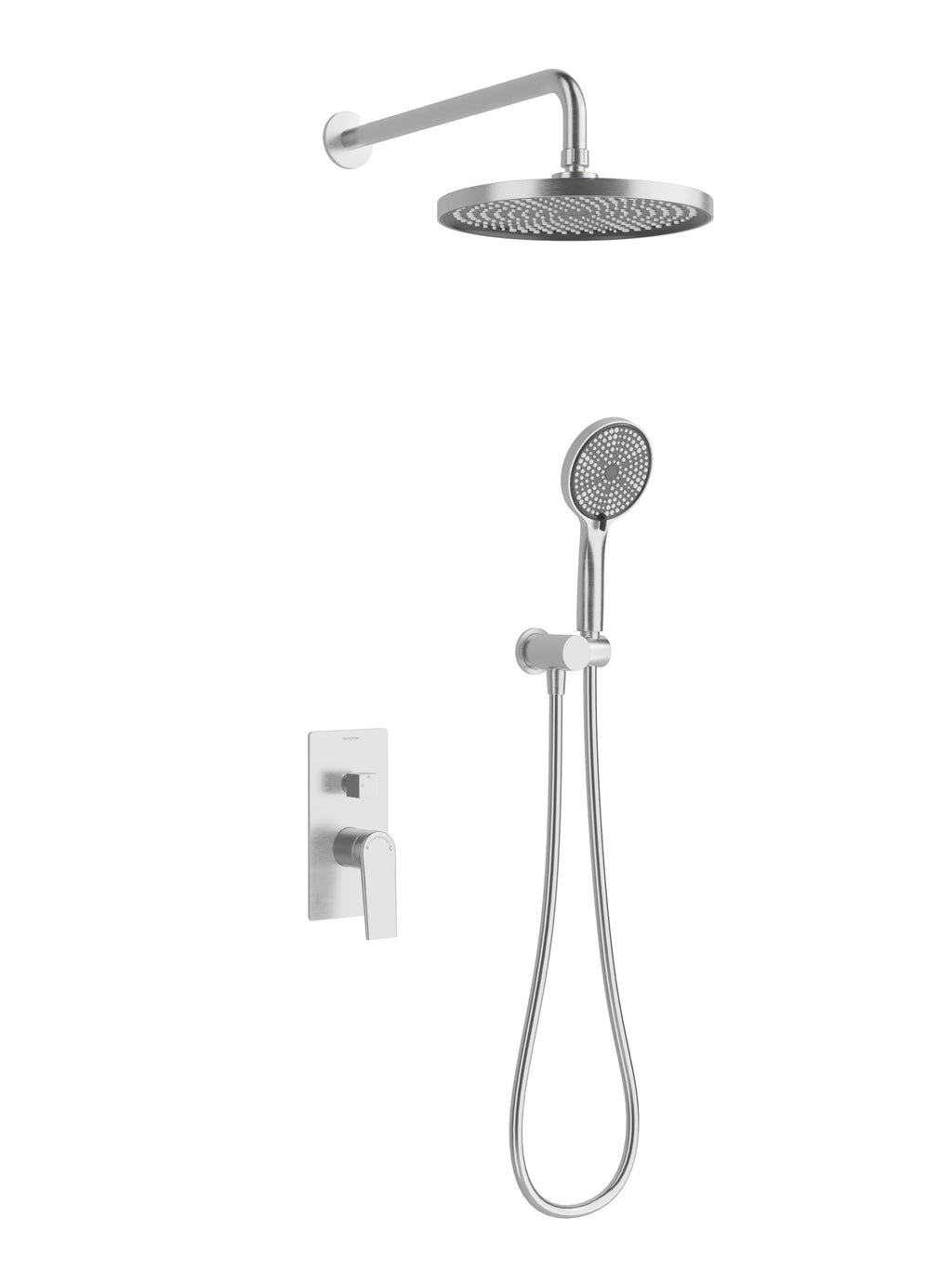

  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Brushed Nickel

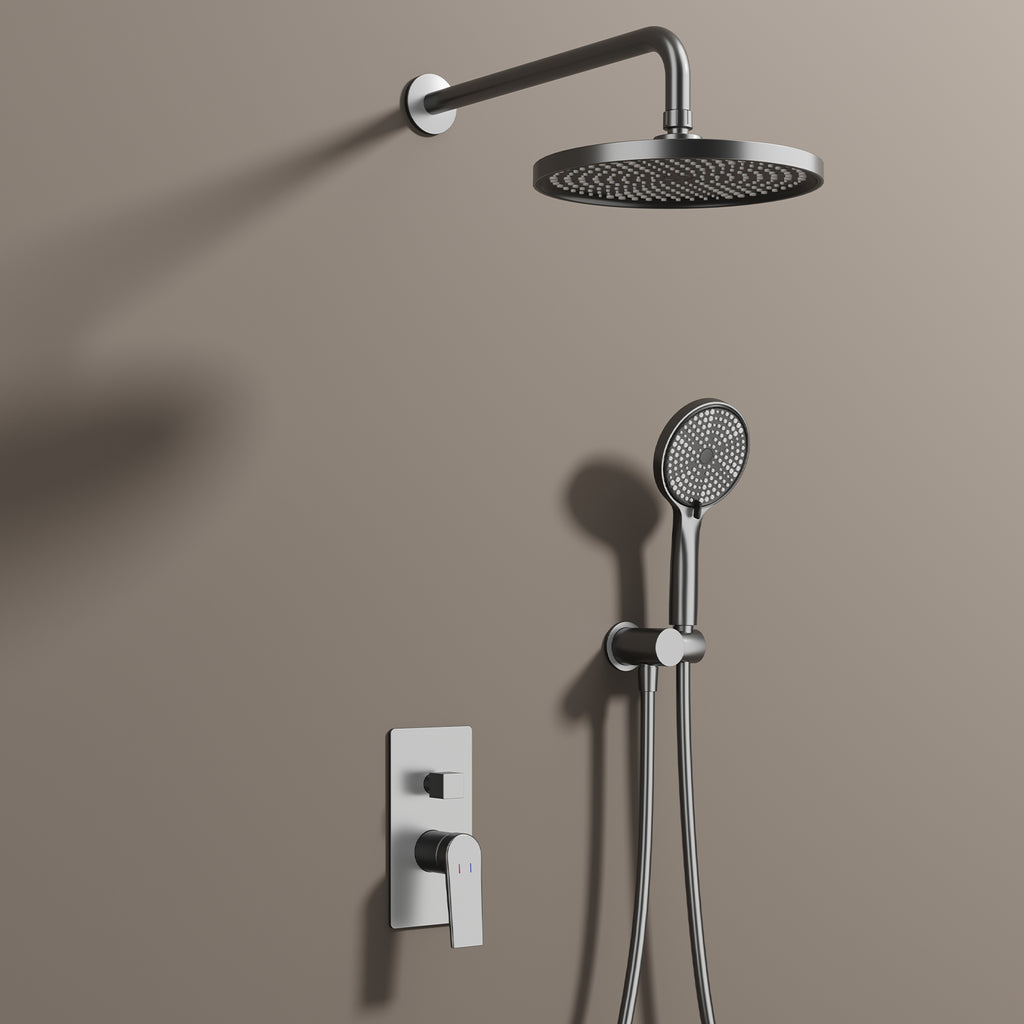

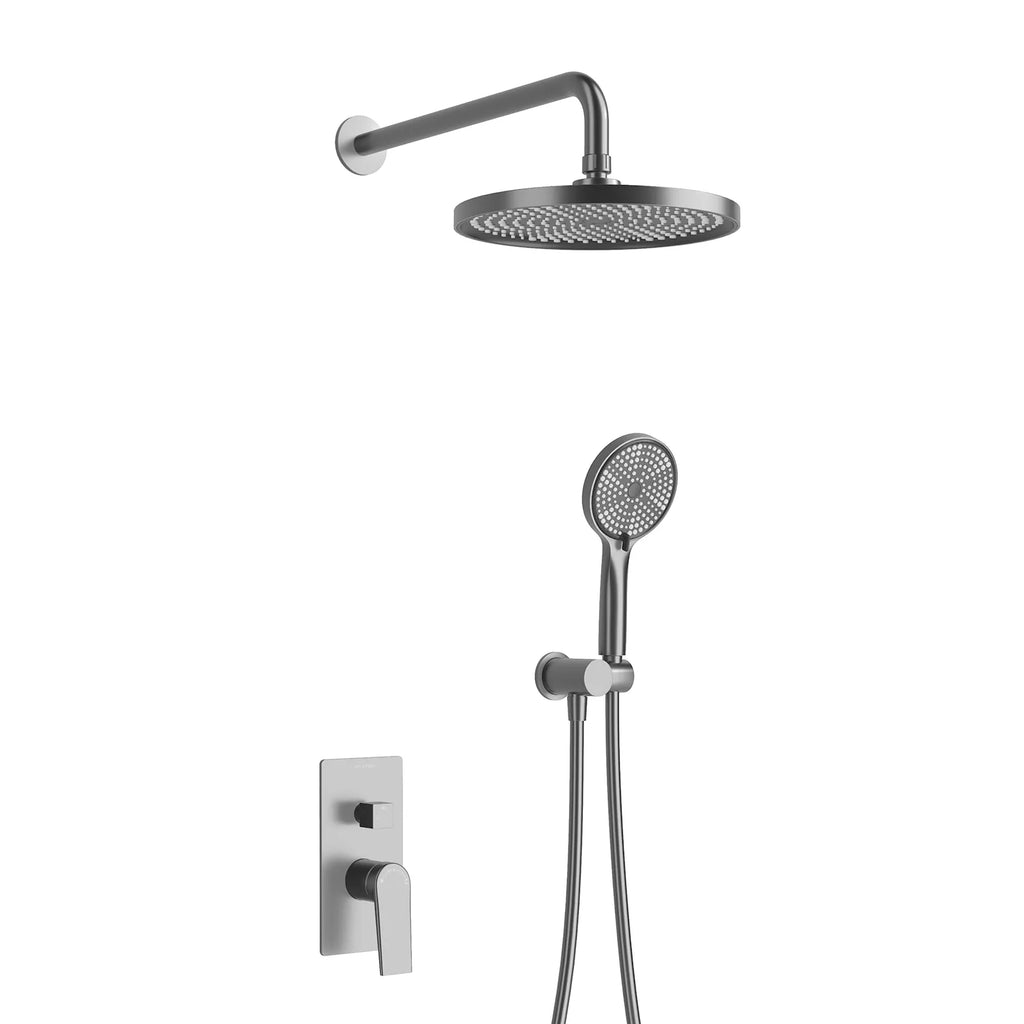

  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Brushed Gun Metal

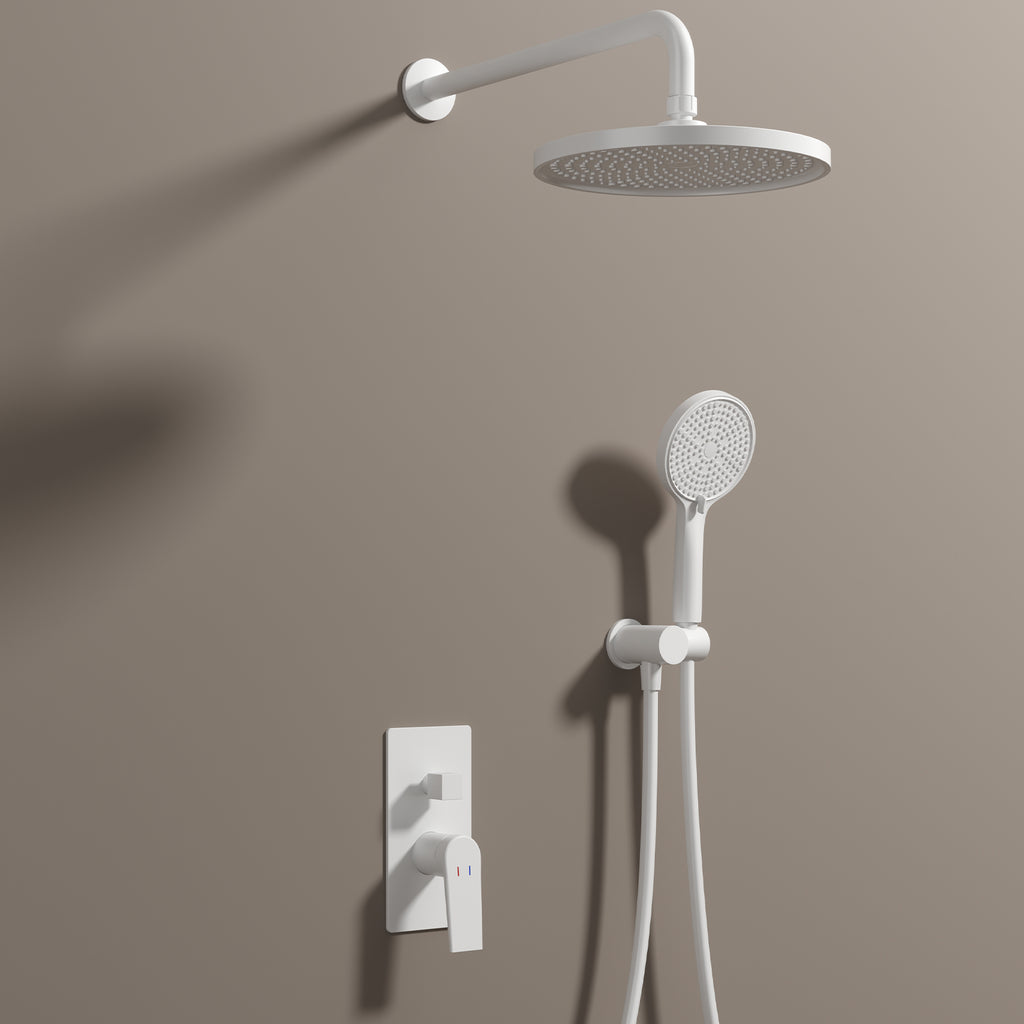

  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Matte White

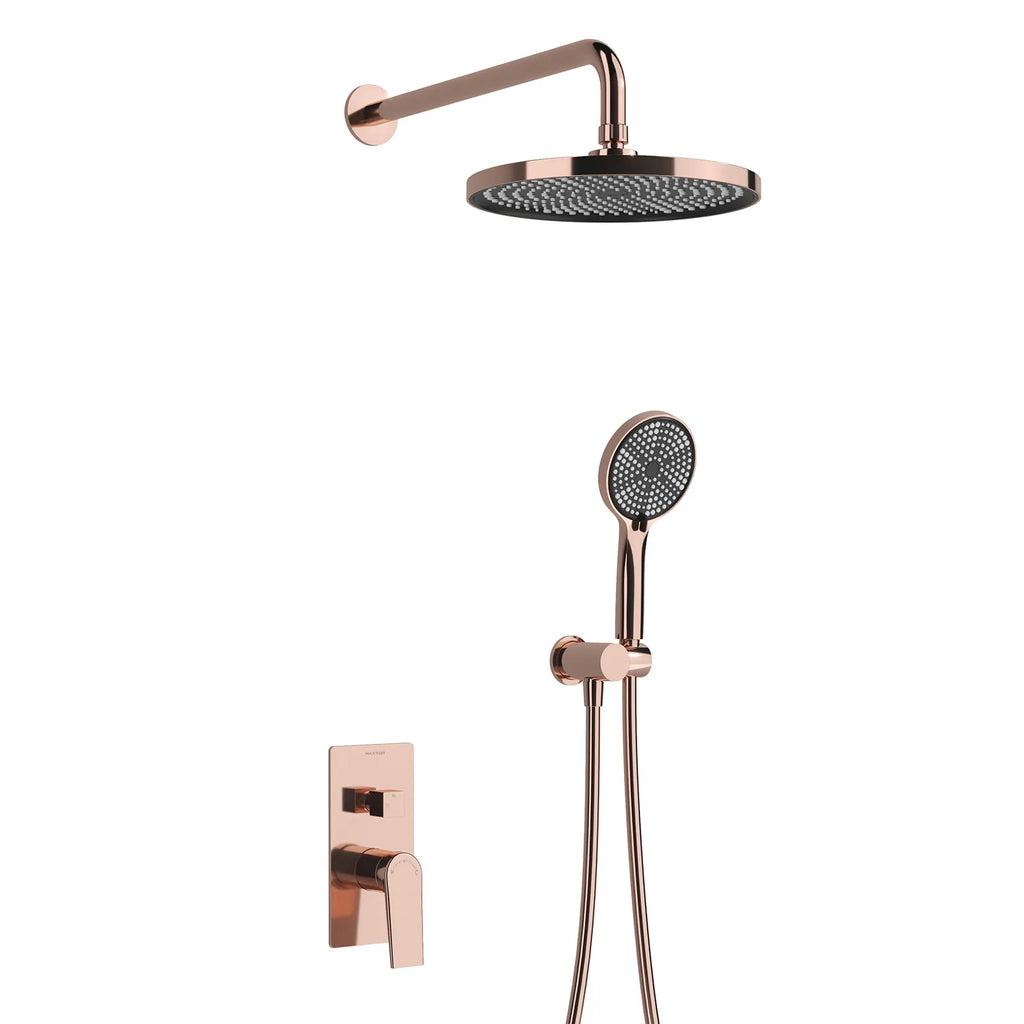

  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164 Rose Gold
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
  • 2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
2 Way Wall Concealed Pressure Balance Shower System with Hand Shower-AB502164
  • 2-way wall concealed pressure balance shower system combines overhead shower and hand shower in one sleek set.
  • Solid lead-free brass rough-in valve body and trim, suitable for USA, Australia and New Zealand (≤0.25% Pb in contact with drinking water).
  • Spain CITEC 35 mm ceramic pressure balance cartridge, tested over 500,000 cycles for smooth operation and long service life.
  • Pressure balance technology helps protect against sudden temperature changes for safer, more comfortable showers.
  • Metal diverter hand-wheel lets you switch effortlessly between overhead shower and hand shower outlet.
  • Ø 255 x 12 mm ABS swivel overhead shower with brass ball joint delivers a wide, rain-style spray for full-body coverage.
  • Ø120MM 3-function ABS hand shower offers rain, spray and mist modes with touch-clean soft silicone nozzles for easy limescale removal.
  • Solid brass wall-mounted hand shower bracket with NPT 1/2" inlet and outlet for secure, leak-free installation.
  • Ø22 x 350 mm SUS304 stainless steel shower arm with NPT 1/2" connections provides sturdy support and modern style.
  • 1500 mm SUS304 explosion-proof hand shower hose offers flexible reach and durability.
  • Supplied with adjustable shower mixer box (60–92 mm installation depth) to simplify fitting and reduce plumbing time.
  • Available in multiple premium finishes, including chrome, brushed nickel, brushed gold, gunmetal, matte black and matte white, to match contemporary bathrooms.
  • Packed in a protective white or brown export box for safe transport and storage.
Color:Matte Black

MODEL: AB502164MB

VIEW THE WHOLE COLLECTION

Original:
$652.17 USD
  • Product Feature
  • Documents & Specs
  • Q&A

This 2 way wall concealed pressure balance shower system pairs a wide rainfall overhead with a 3-function hand shower and brass rough-in valve box.

  • Material: Solid lead-free brass valve body and trim; ABS overhead and hand shower; SUS304 stainless steel shower arm and hose.
  • Valve & Cartridge: Spain CITEC 35 mm ceramic pressure balance cartridge, tested to 500,000+ cycles.
  • Functions: 2-way diverter – overhead shower / hand shower outlet.
  • Overhead Shower: Ø255 x 12 mm ABS swivel shower head with brass joint ball and touch-clean silicone nozzles.
  • Hand Shower: 3-function ABS hand shower – rain, spray and mist with soft silicone nozzles.
  • Shower Arm: Ø22 x 350 mm SUS304 shower arm with NPT 1/2" inlet and outlet threads.
  • Bracket: Solid brass wall-mounted hand shower bracket with NPT 1/2" inlet and outlet.
  • Hose: 1500 mm SUS304 stainless steel explosion-proof hand shower hose.
  • Escutcheon: 200 x 150 x 2 mm SUS304 stainless steel escutcheon plate for a clean wall finish.
  • Installation Box: Adjustable shower mixer box, installation depth 60–92 mm for flexible wall construction.
  • Connections: Standard NPT 1/2" inlets/outlets compatible with most plumbing systems.
  • Finishes: Chrome, brushed nickel, brushed gold, gunmetal, matte black, matte white, rose gold (subject to stock).
  • Packaging: Supplied in protective white or brown box.
  • Applications: Residential bathrooms, hotel suites and renovation projects needing a safe, modern concealed shower.
  • Residential bathrooms upgrading to a concealed rainfall and hand shower system.
  • Hotel and resort showers requiring safe, pressure-balanced performance and modern design.
  • Apartment and condo renovations replacing exposed shower mixers with a sleek in-wall solution.
  • High-end spec homes needing coordinated finishes such as matte black, brushed nickel or brushed gold.
  • Shower cabins or wet rooms where a minimalist trim plate and large overhead shower are desired.
  • Ready to upgrade your bathroom to a clean, hotel-style concealed shower? Choose this MAXTOR pressure balance system for safer, more comfortable daily showers.

Q1: Is this shower system pressure-balance and anti-scald?

A1: Yes. The Spain CITEC pressure balance cartridge keeps the outlet temperature stable by compensating for pressure changes in hot and cold lines, helping to reduce the risk of sudden scalding.

Q2: Does the set include the rough-in valve box and trim?

A2: Yes. The kit includes the solid brass rough-in valve, protective box and finished trim plate, so you don’t need to buy a separate valve.

Q3: Can I use this with my existing NPT 1/2" plumbing?

A3: The valve, shower arm, hand shower bracket and hose are all designed with standard NPT 1/2" threads, making them compatible with most North American-style plumbing systems.

Q4: How do I switch between the overhead shower and hand shower?

A4: Use the metal diverter hand-wheel on the trim plate. Turn it to direct water either to the overhead shower or to the handheld shower outlet.

Q5: Is maintenance difficult with the large overhead shower?

A5: No. Both the overhead and hand shower feature soft silicone nozzles. You can simply rub them with your fingers to remove limescale and keep the spray pattern clear.
