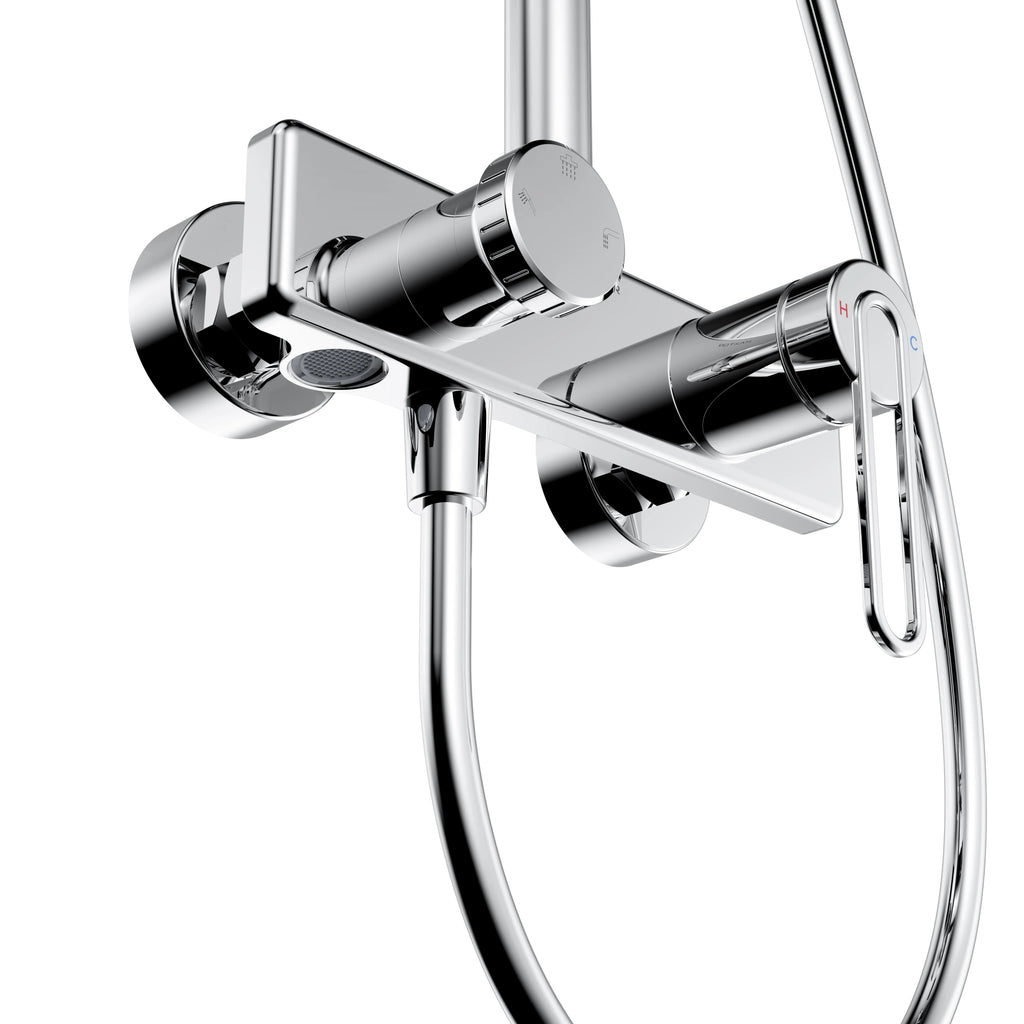

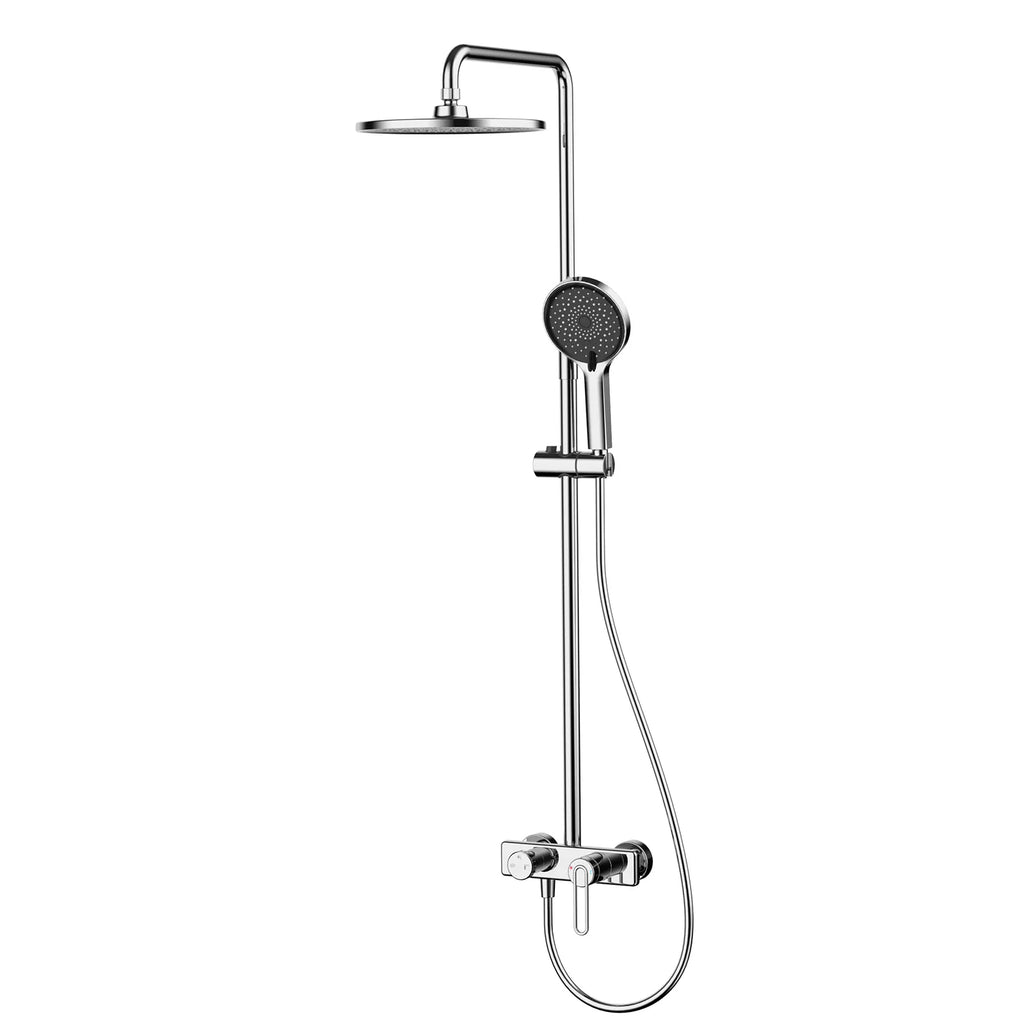

  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069 Chrome

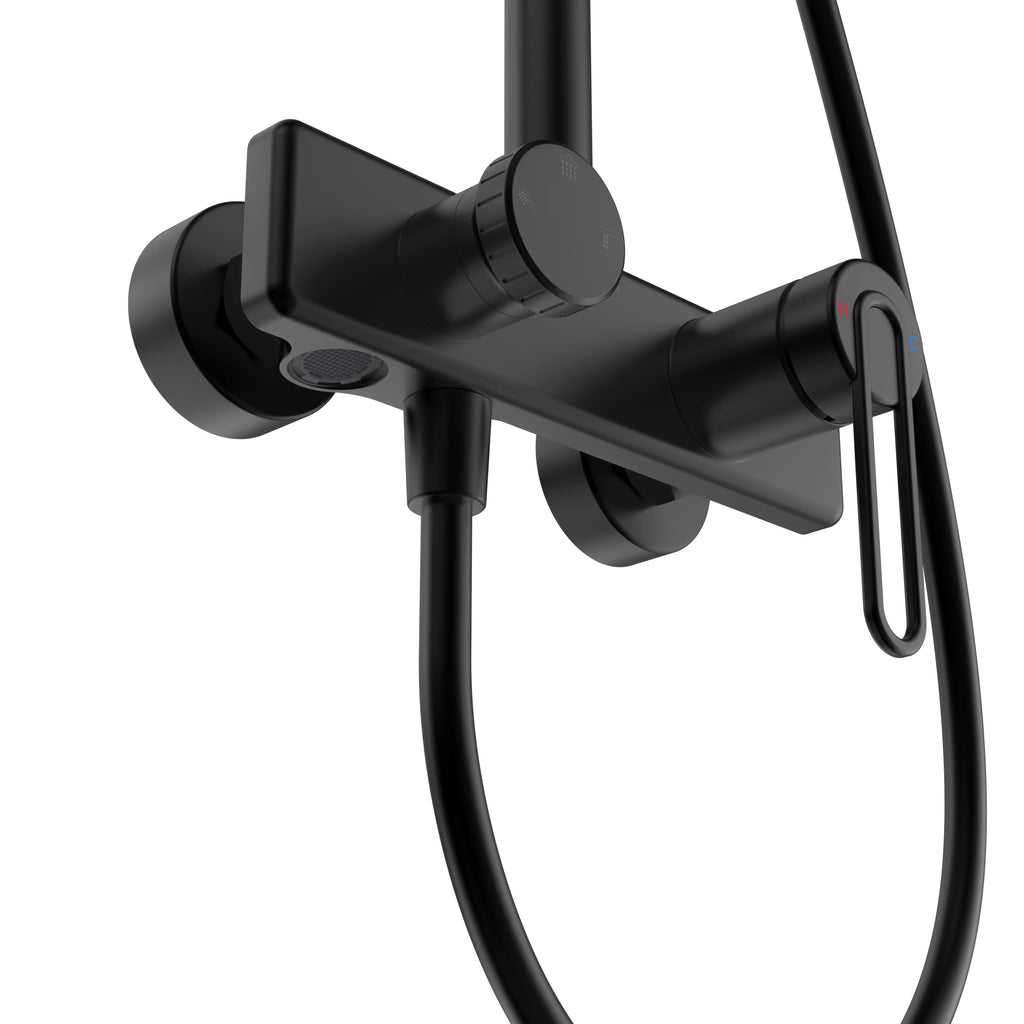

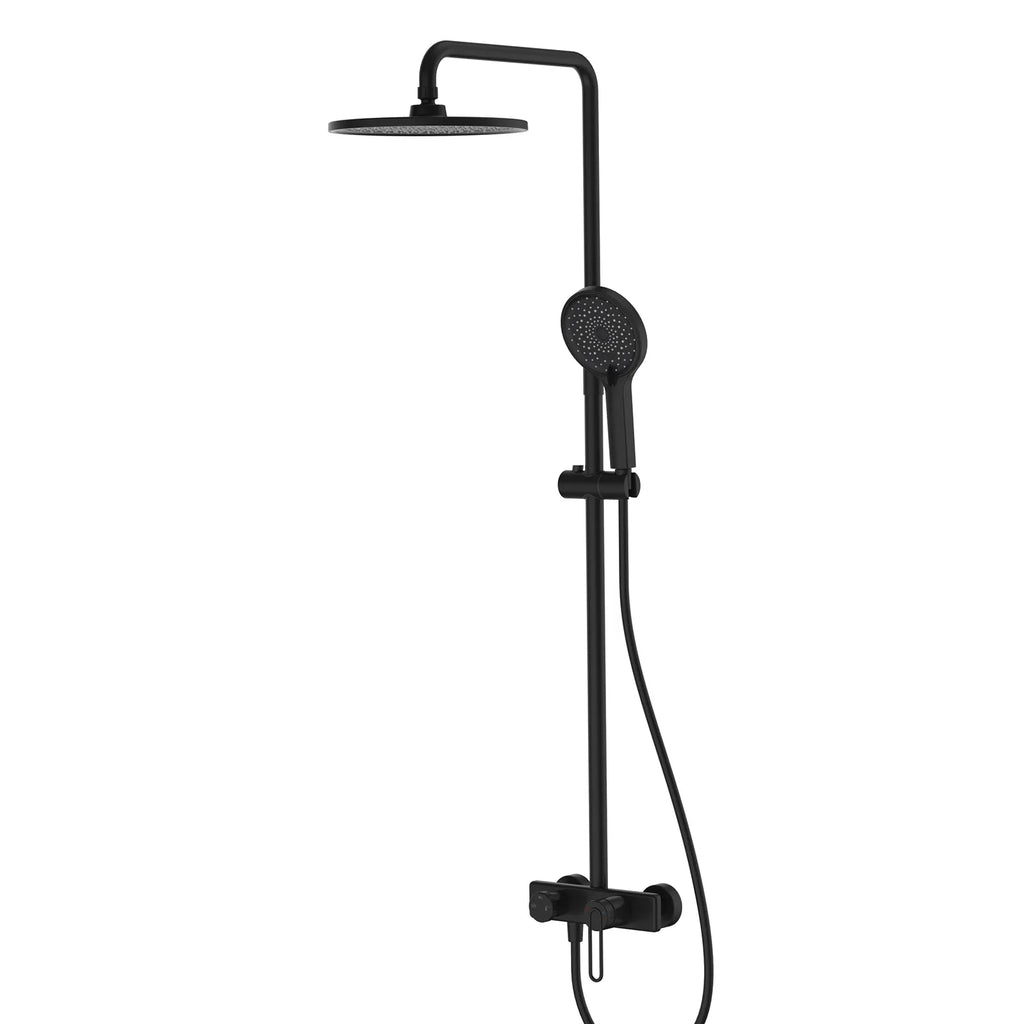

  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069 Matte Black

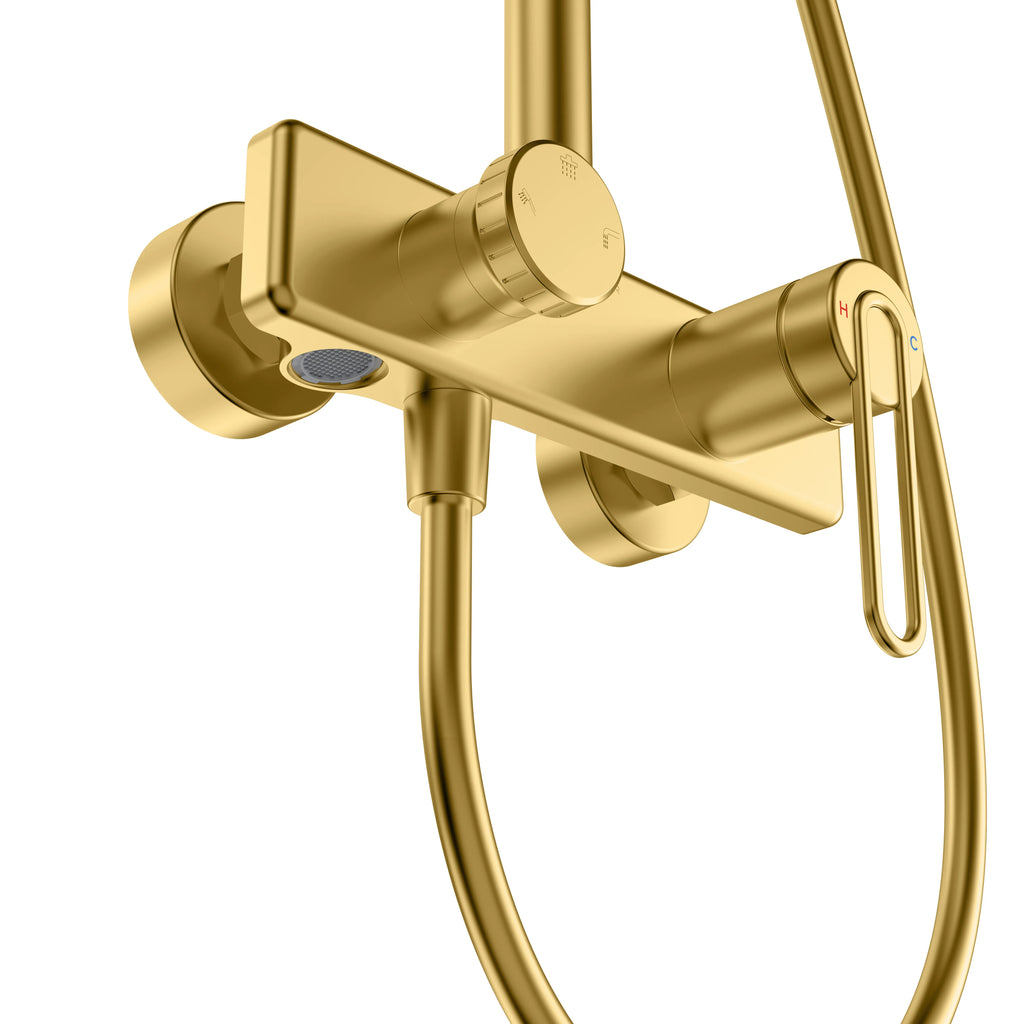

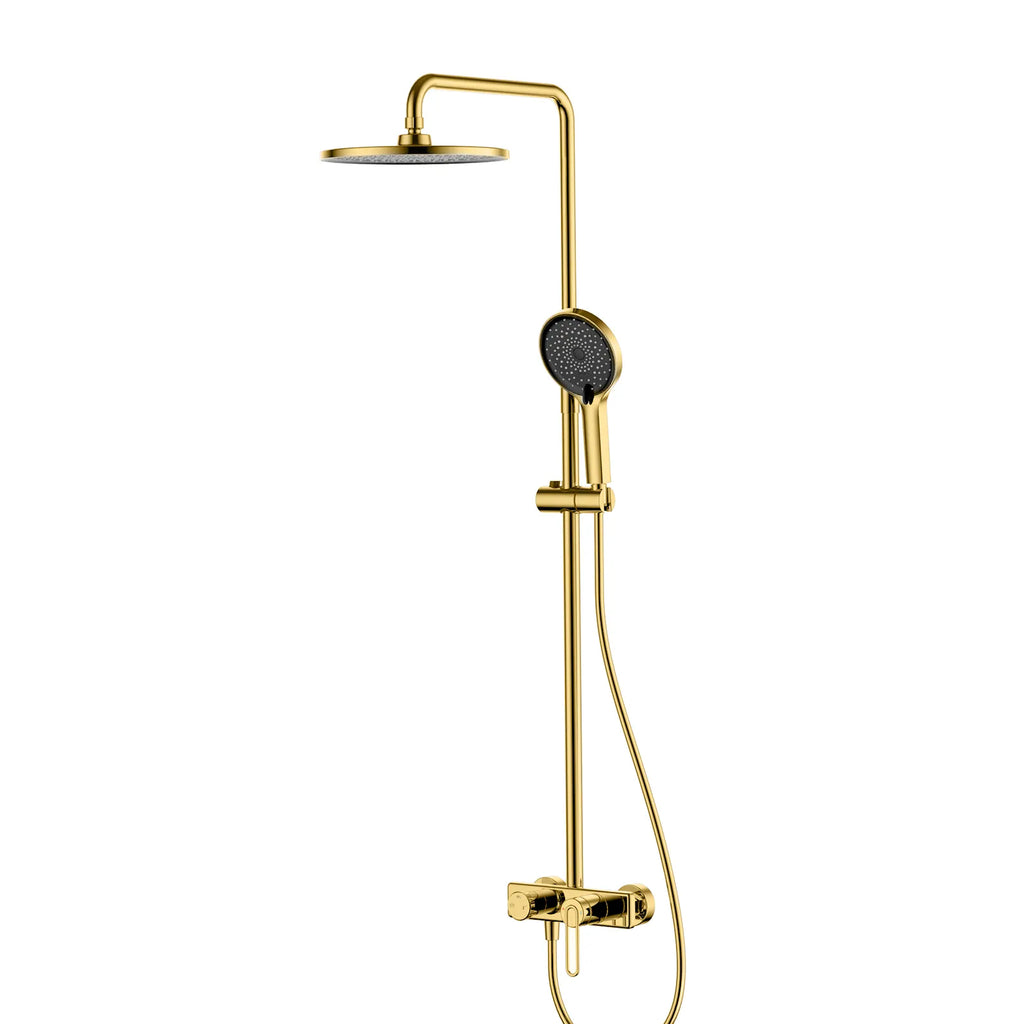

  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069 Brushed Gold

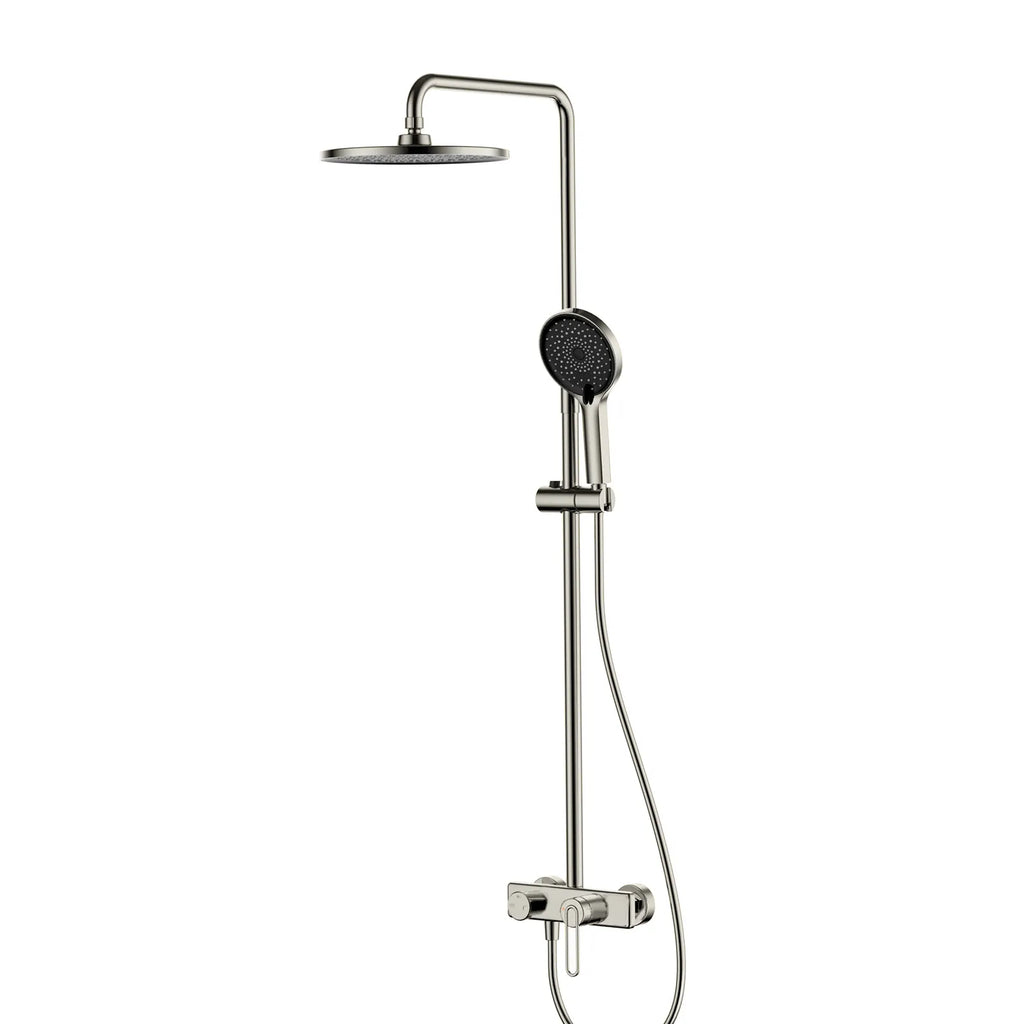

  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069 Brushed Nickel

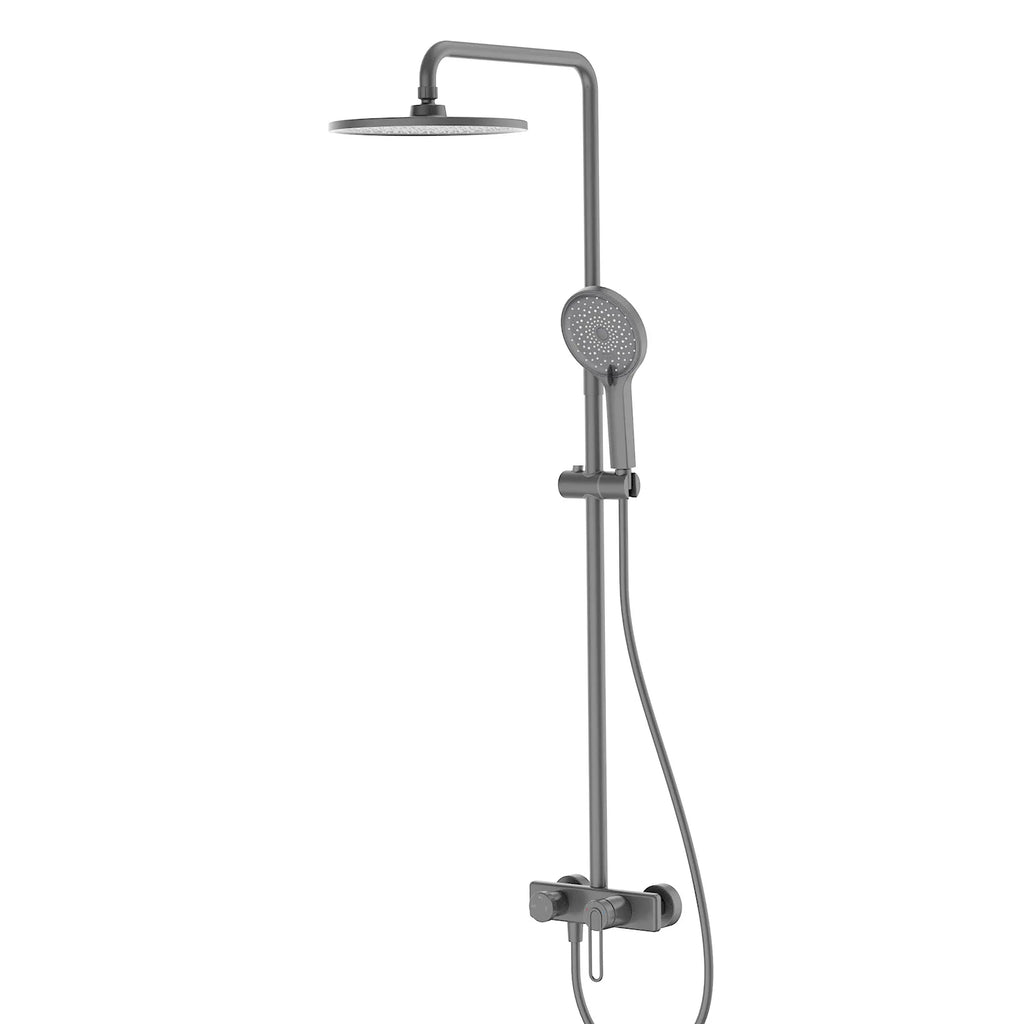

  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069 Brushed Gun Metal

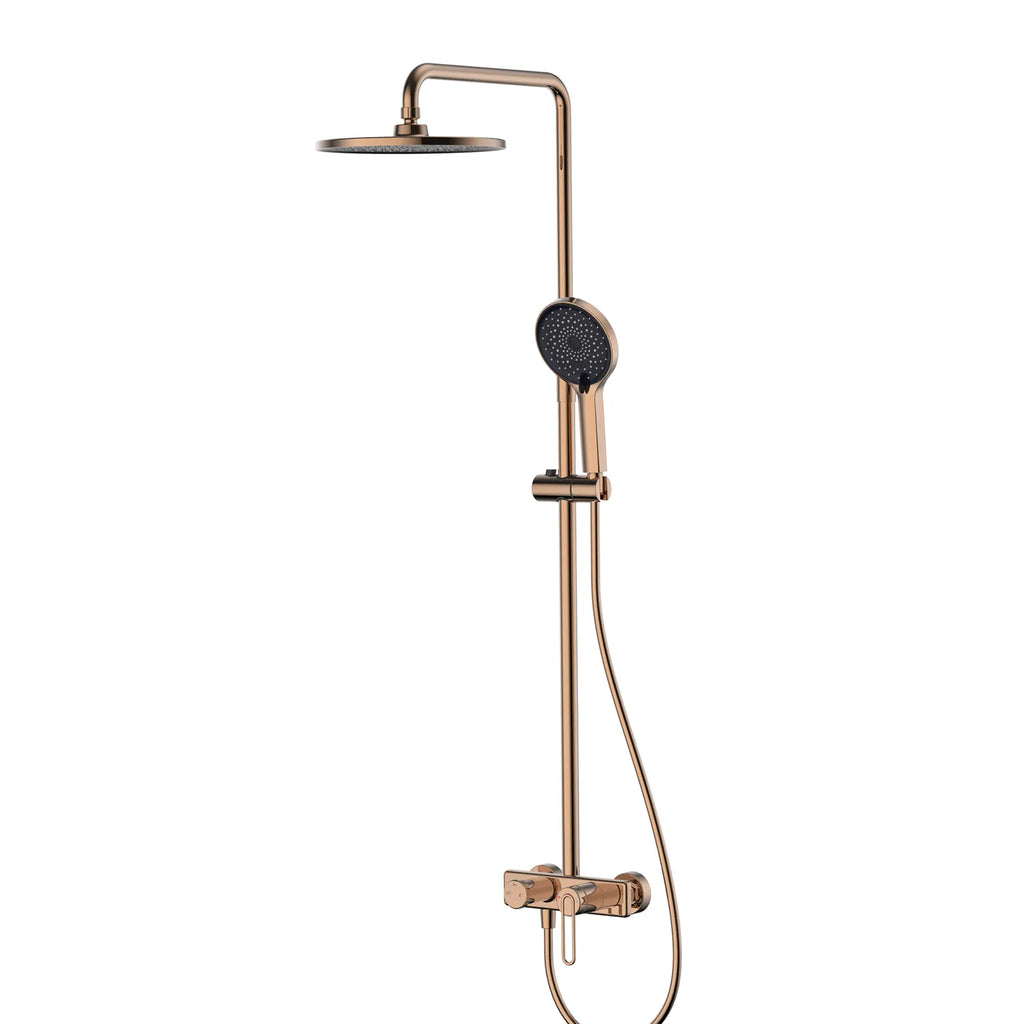

  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069 Rose Gold
  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069
  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069
  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069
  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069
  • 3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069
3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069
3-Way Shower Column System – Exposed Bath/Shower Mixer with Overhead & Hand Shower – AB403069

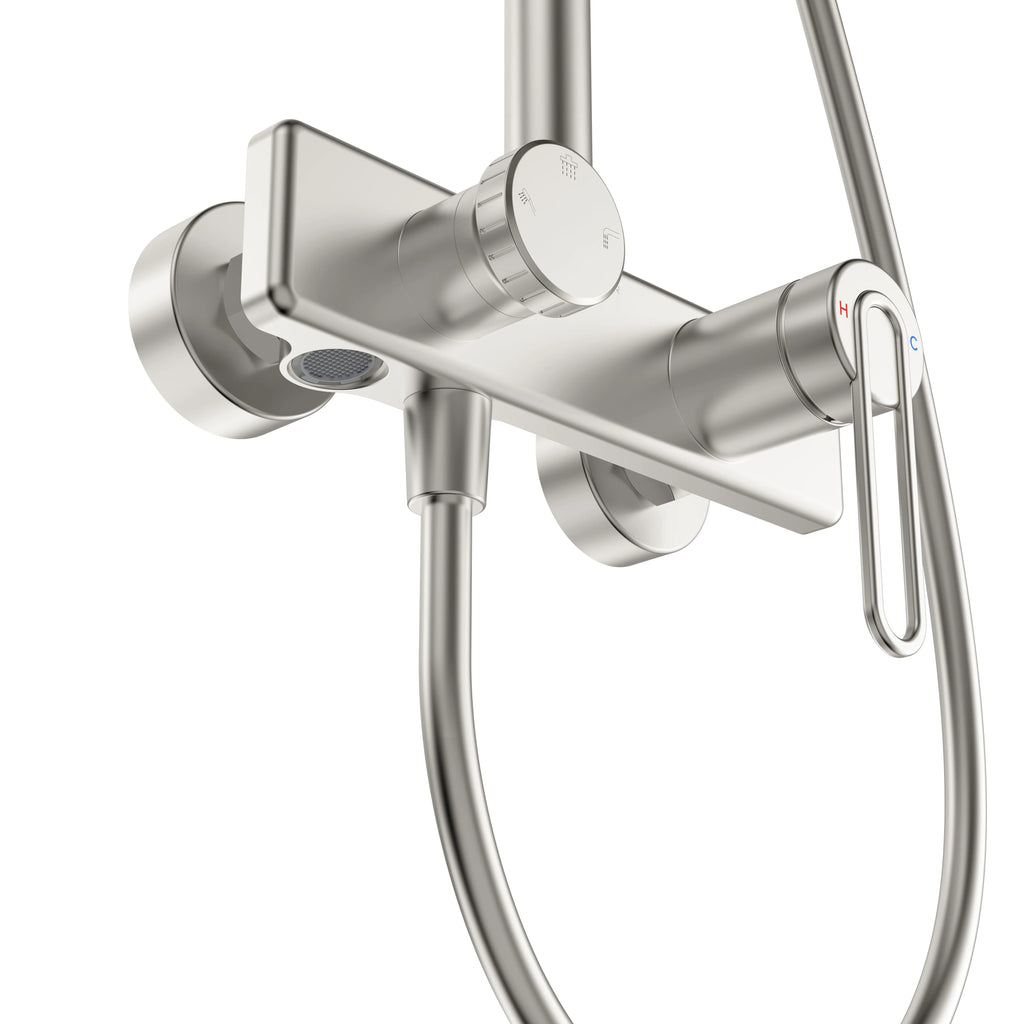

  • 3-Way Shower Column System — Single exposed mixer feeds overhead rain shower, handheld shower and solid brass bath spout via easy hand-wheel control.
  • Solid Lead-Free Brass Construction — Mixer body and 100mm bath spout are cast in solid brass designed to meet US/Australia/New-Zealand ≤0.25% lead requirements.
  • Spain CITEC 35mm Ceramic Cartridge — “Silk move” cartridge gives smooth lever control and reliable sealing for long-lasting, leak-resistant performance.
  • Swiss Neoperl Aerator — Integrated aerator/regulator in the bath spout softens the stream and helps stabilize flow.
  • Comfortable Single-Lever Operation — One slim metal handle controls water flow and temperature precisely for the entire column.
  • Height-Adjustable Metal Rail — Ø25mm metal slider rail can be set between 855–1250mm to fit different users and bathroom layouts.
  • 3-Function ABS Hand Shower — Hand shower offers comfortable rain, spray and mix modes for everyday flexibility.
  • Ø250mm ABS Overhead Shower — Large 250 x 10mm rain head creates a wide, natural rainfall experience for full-body coverage.
  • Easy-Clean Silicone Nozzles — Overhead and hand shower feature soft silicone jets; limescale wipes away with a simple rub.
  • Extended Shower Arm — 368mm-long arm positions the rain head further into the shower area for a more open feeling.
  • Reinforced SUS304 Hose — 1500mm SUS304 explosion-proof hose connects the mixer to the handheld shower for flexible, safe use.
  • Complete Wall Kit — Solid brass or SUS304 shower mixer wall elbows included for fast, secure installation.
  • International Standards — Designed and tested to EN817 / ASME A112.18.1 and CE requirements.
  • Secure Packaging — Packed in a white or brown box with protective inner packing for shipping.
Color:Chrome

MODEL: AB403069CH

VIEW THE WHOLE COLLECTION

Original:
$782.61 USD
  • Product Feature
  • Documents & Specs
  • Q&A

3-way exposed shower column system combining a solid brass bath/shower mixer, overhead rain head and 3-function hand shower on an adjustable rail.

  • Type: 3-way exposed shower column with bath spout, overhead shower and handheld shower
  • Body Material: Solid lead-free brass (≤0.25% Pb for US/AUS/NZ compliance)
  • Cartridge: 35mm Spain CITEC “silk move” ceramic cartridge
  • Control: Single lever handle for flow and temperature
  • Diverter: Hand-wheel to select hand shower, overhead shower or bath spout
  • Bath Spout: Solid brass, 100mm reach with Swiss Neoperl aerator/regulator
  • Overhead Shower: Ø250 x 10mm ABS rain head with silicone nozzles
  • Shower Arm: Approx. 368mm length for extended reach
  • Hand Shower: 3-way ABS hand shower (rain / spray / mix) with silicone nozzles
  • Rail: Ø25mm metal slider rail, adjustable height 855–1250mm
  • Bracket: ABS height-adjustable hand shower bracket
  • Hose: 1500mm SUS304 explosion-proof handheld shower hose
  • Elbows: Solid brass or SUS304 shower mixer wall elbows included
  • Standards: EN817 / ASME A112.18.1 / CE certified
  • Finishes: Chrome, brushed nickel, brushed gold, gunmetal, matte black, rose gold (customizable)
  • Packing: White or brown carton with protective inserts
  • Warranty: 5-year limited warranty on mixer body and cartridge
  • Residential bathrooms needing a combined rain shower, handheld shower and tub spout in one exposed system
  • Apartment and hotel projects where a certified, easy-to-install shower column is required
  • Renovations upgrading from basic wall mixers to a full-featured column shower
  • Showrooms displaying modern rain shower systems with multiple finishes
  • Mixed-use developments seeking a unified bath and shower solution across units

Contact AQUASBATH/MAXTOR now for AB403069 3-way shower column system pricing, finish options and technical documentation →

Q: What does “3-way” mean on this shower column?

A: “3-way” means the exposed mixer can send water to three outlets: the overhead rain shower, the handheld shower and the solid brass bath spout. You choose the outlet using the front hand-wheel selector.

Q: Is the system suitable for markets with low-lead requirements?

A: Yes. The mixer body and brass components are designed to meet ≤0.25% lead limits for the U.S., Australia and New Zealand, making it suitable where low-lead rules apply.

Q: How high can the shower column be adjusted?

A: The Ø25mm metal rail can be set between about 855mm and 1250mm, so installers can tune the height to match the user and ceiling space.

Q: What kind of shower experience does the overhead head provide?

A: The Ø250mm ABS rain head delivers a broad, gentle rainfall feel. Combined with silicone nozzles, it gives full-body coverage and is easy to keep clean from limescale.

Q: Does the hand shower have multiple spray functions?

A: Yes. The ABS hand shower offers three modes—comfortable rain, more focused spray and a mixed pattern—so each user can select the feel they like.

Q: Is it difficult to install this shower column?

A: The system is designed for straightforward wall mounting. Solid brass or SUS304 wall elbows are included, helping installers connect to existing pipework with minimal extra parts.

Q: What certifications does this shower column meet?

A: The AB403069 is engineered to comply with EN817, ASME A112.18.1 and CE requirements, giving confidence for use in international projects.
