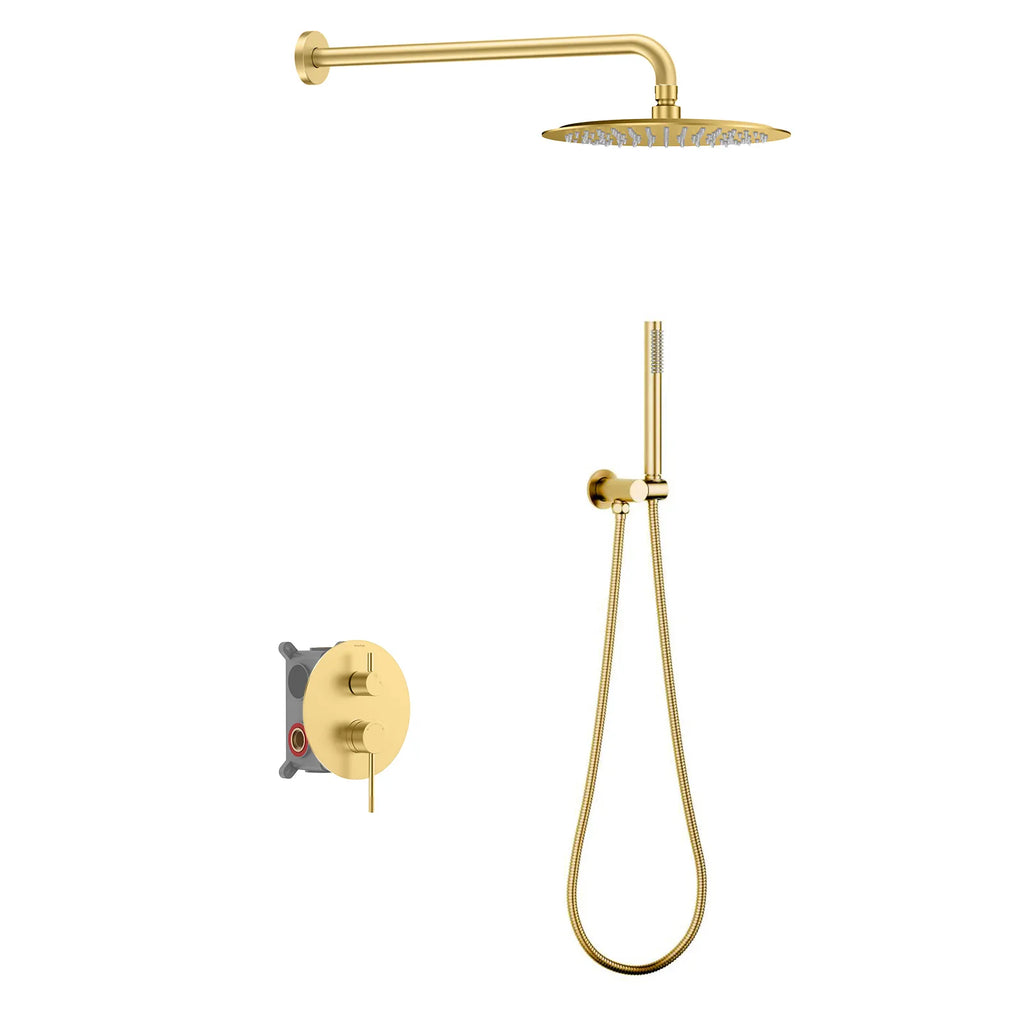

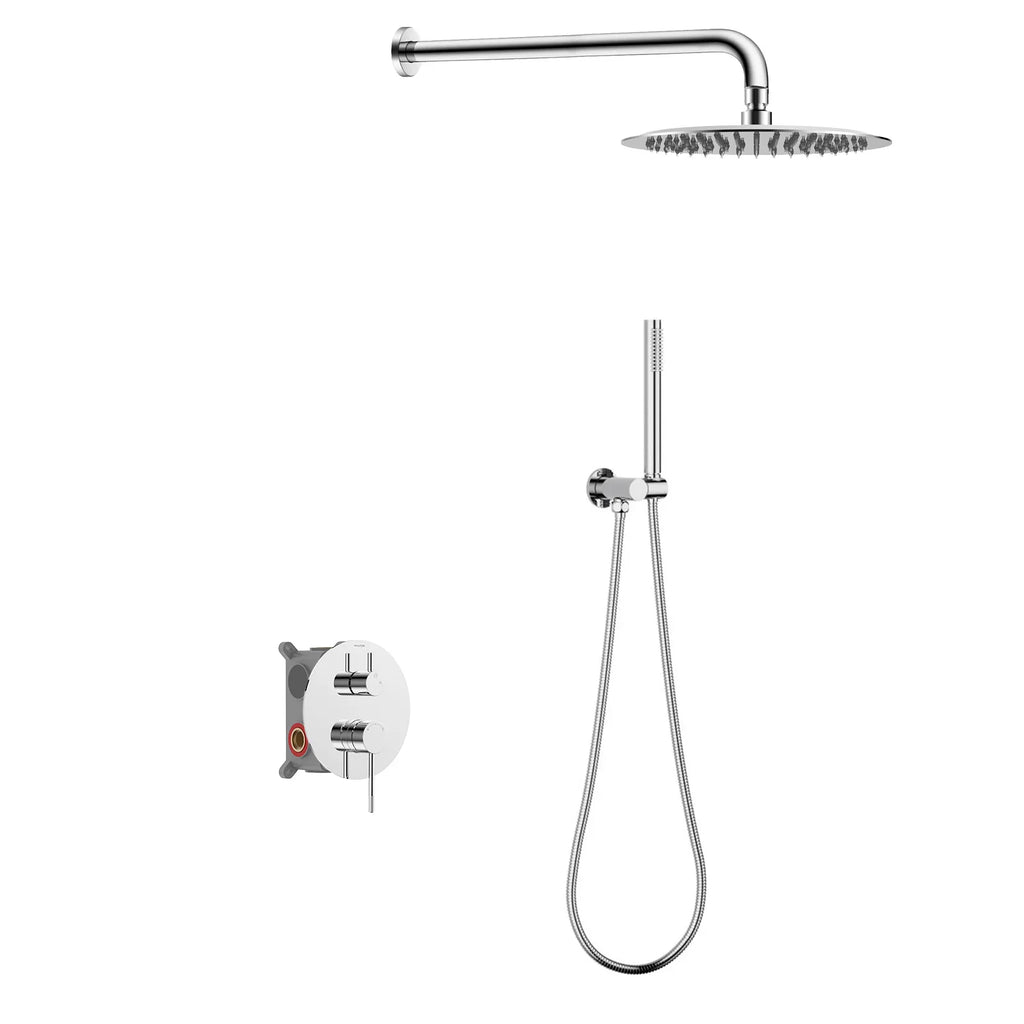

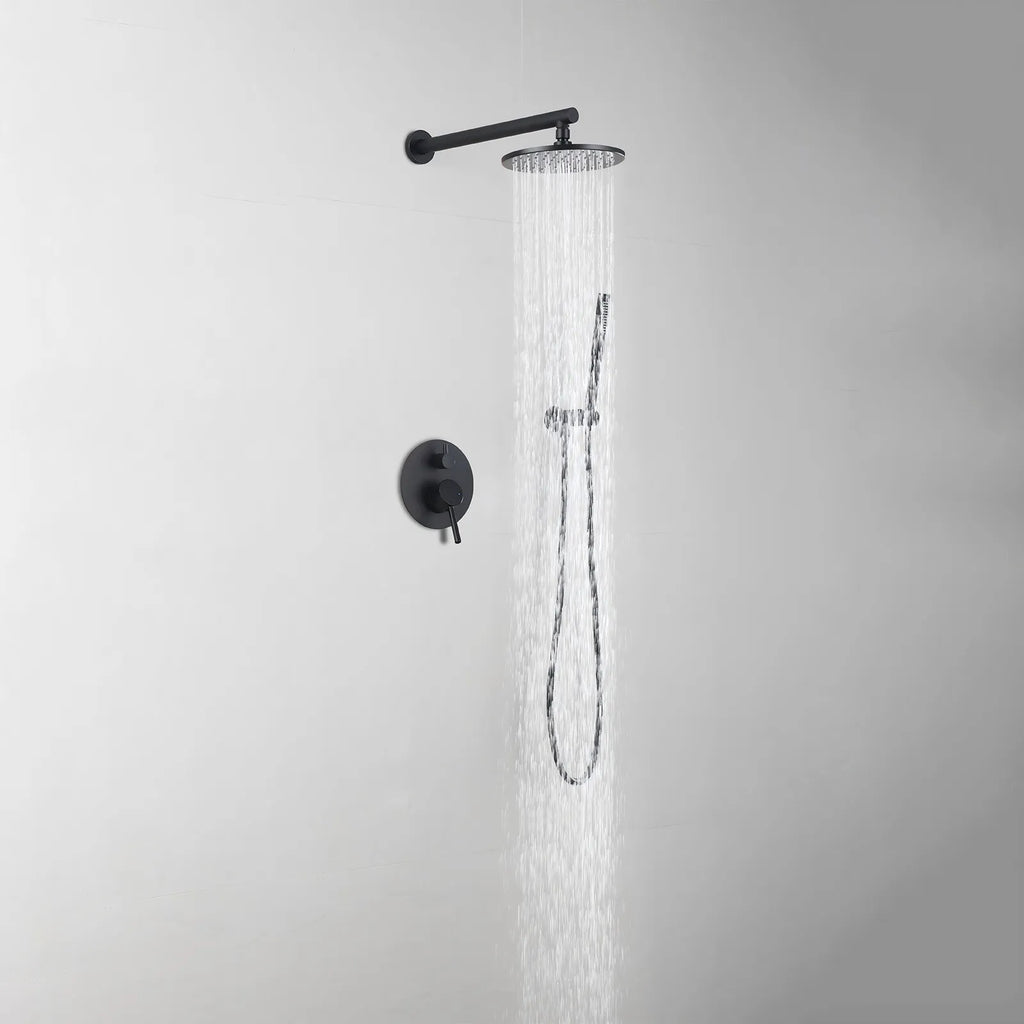

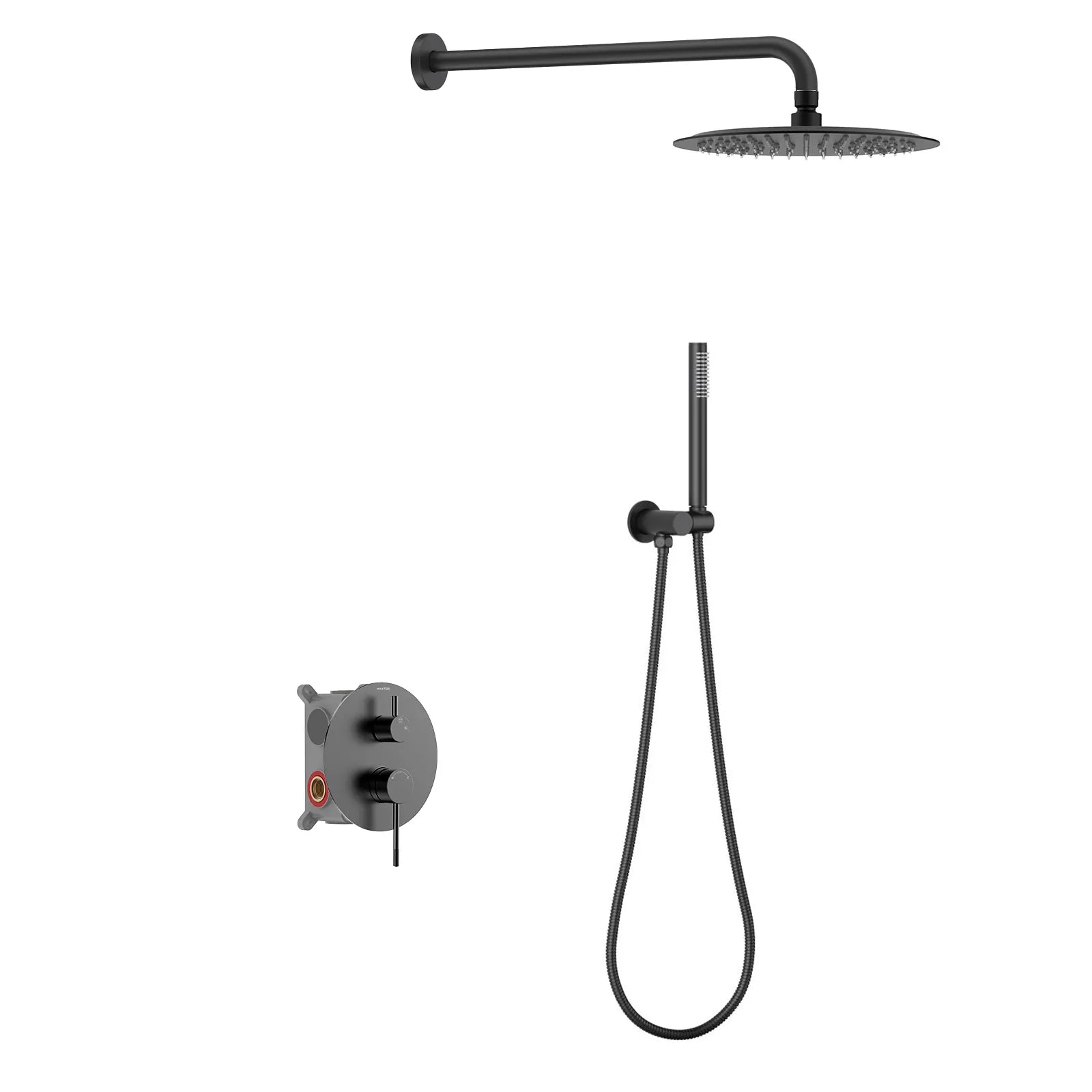

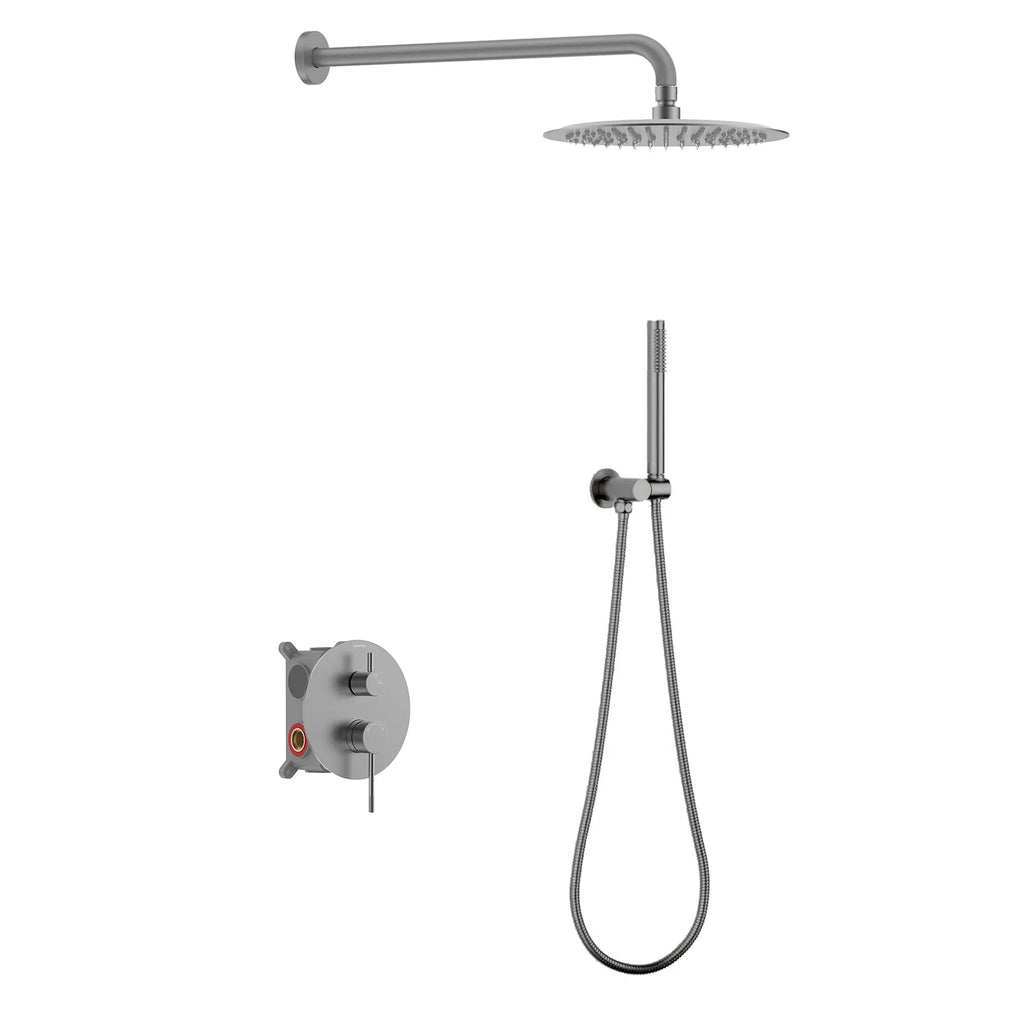

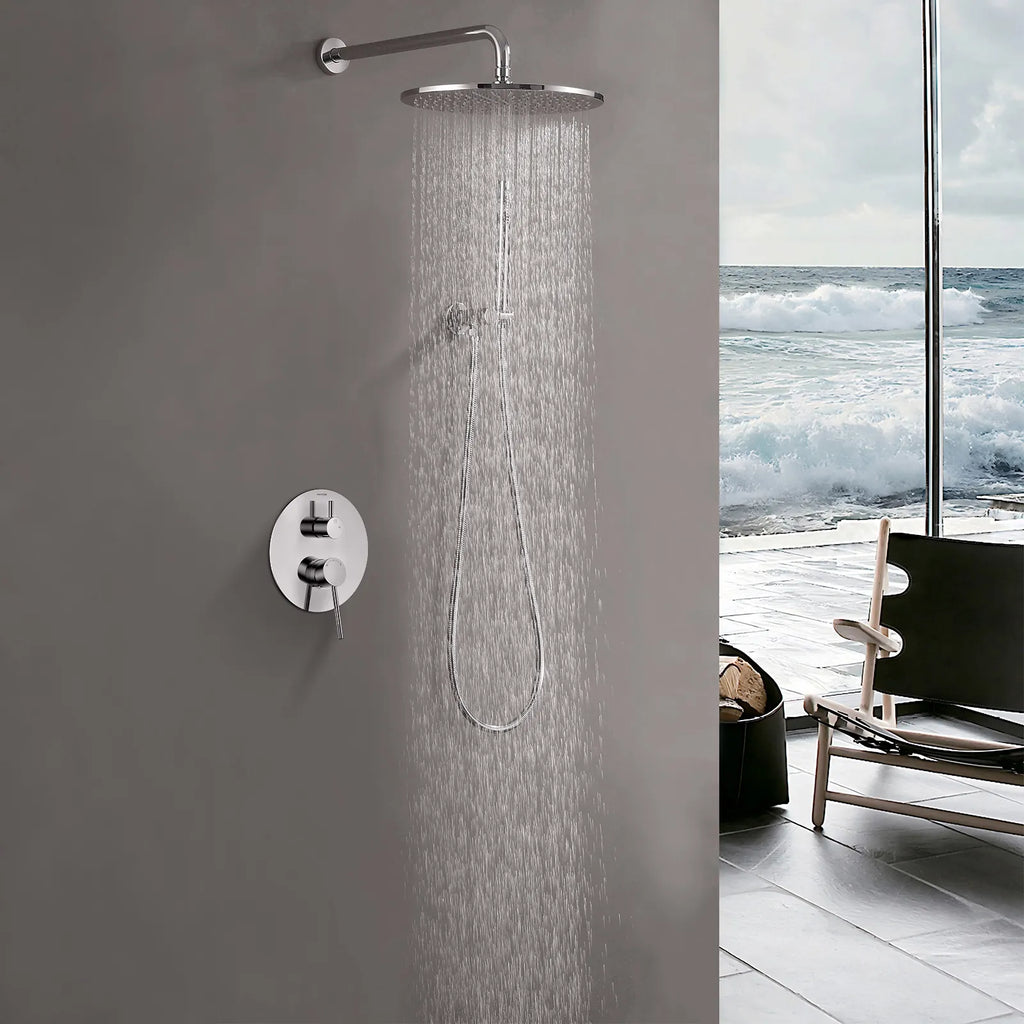

Circular 2-way Wall Concealed Shower Mixer AB502204

Circular 2-way Wall Concealed Shower Mixer AB502204

Solid Brass Valve with Box: Durable brass body ensures stability, corrosion resistance, and long-lasting use.
Spain CITEC Ceramic Cartridge: 35mm high-performance cartridge tested over 500,000 cycles for leak-free operation.
Dual Outlet Design: Easy switch between Ø250mm overhead rain shower and handheld shower outlet.
3-Function Handheld Shower: ABS handheld shower offers Rain, Spray, and Mixed functions for versatile comfort.
Rainfall Overhead Shower: Ø250x10mm ABS shower head with self-clean soft silicone nozzles delivers a natural rainfall experience.
Adjustable Installation Depth: Mixer box depth adjustable from 70–85mm for flexible concealed installation.
Premium Fittings: Solid brass wall elbow, angle-adjustable bracket, and 1500mm SUS304 explosion-proof hose included.
Universal Connector: Standard NPT 1/2” outlets for easy plumbing compatibility.
Multiple Finishes: Chrome, Matte Black, Brushed Gold, Brushed Nickel, Gunmetal.
Safe Packaging: Packed with EPE foam in white or brown export box.

MODEL: AB502204MB

VIEW THE WHOLE COLLECTION

Original:

$732.03 USD

Product Feature
Documents & Specs
Q&A

Short Description:

The MAXTOR AB502204 2-Way Wall Concealed Shower System combines a rain shower and 3-function handheld shower in a sleek concealed design. Featuring a solid brass mixer box, Spain CITEC cartridge, and SUS304 fittings, it ensures durability, leak-free use, and water efficiency for modern bathrooms.

Product Technical Parameters:

Model: AB502204
Type: 2-Way Wall Concealed Shower System
Valve Body: Solid brass with box and escutcheon
Cartridge: Spain CITEC 35mm ceramic cartridge
Handle: Single-lever metal handle
Diverter: 2-way diverter (rain shower / handheld)
Hand Shower: ABS 3-function handheld (Rain / Spray / Mix)
Overhead Shower: Ø250x10mm ABS with silicone nozzles
Shower Arm: 350xØ22mm solid brass wall-mounted arm with SUS304 escutcheon
Hose: 1500mm SUS304 stainless steel explosion-proof shower hose
Connector: NPT 1/2” thread
Installation Depth: Adjustable 70–85mm
Finishes: Chrome, Matte Black, Brushed Gold, Brushed Nickel, Gunmetal

Packaging:

Packed with EPE foam in white or brown export box.

Warranty:

5 Years Finish Warranty (PVD coating)

Lifetime Mechanical Warranty (cartridge & brass body)

Certifications:

CE / ISO9001 Certified

Lead-Free Compliant (US, AU, NZ markets)

Ab502204 drawing 3efcb19c f17c 4c22 b223 c279373d94f8

Q1: What material is the valve body made of?

A1: It is crafted from solid brass with a concealed box for durability and corrosion resistance.

Q2: How many shower outlets does this system support?

A2: It supports 2 outlets – a Ø250mm overhead shower and a 3-function handheld shower.

Q3: Does it include a water-saving feature?

A3: Yes, the overhead and handheld shower are designed with aerator and silicone nozzles for efficient water use.

Q4: What is the installation depth?

A4: The concealed mixer box is adjustable between 70–85mm.

Q5: Which finishes are available?

A5: Chrome, Matte Black, Brushed Gold, Brushed Nickel, and Gunmetal.
