Maxtor 2-Way Concealed Shower – Rain & Hand Shower Pressure Balance Valve

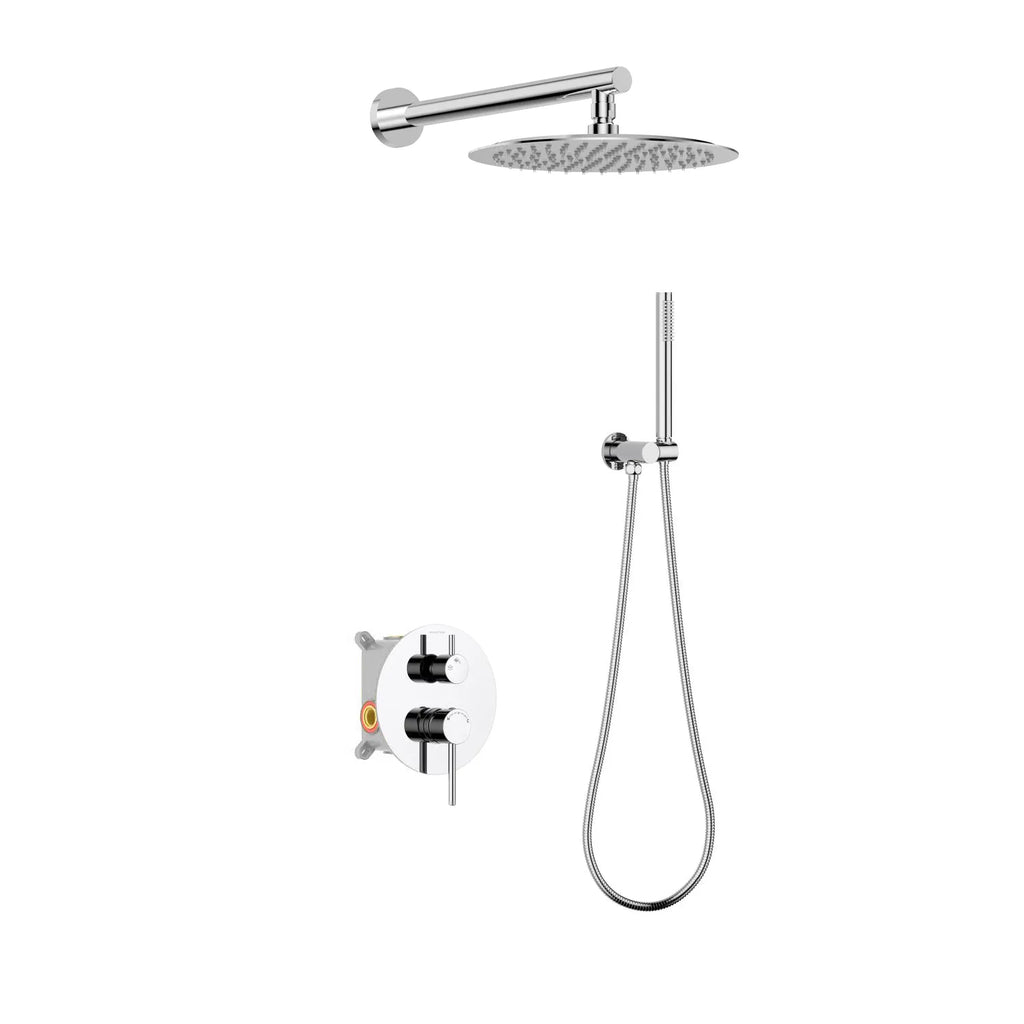

2-Way Wall-Concealed Shower System with Overhead Rain Shower & Hand Shower-AB512005

Solid Brass Construction – Premium low-lead brass valve body ensures durability and resistance to corrosion. (≤0.25% lead content for U.S., Australia, and New Zealand compliance.)
Spain CITEC 35 mm Ceramic Cartridge – Passed 500,000 cycle tests for superior reliability and non-leakage performance. Maintains consistent water temperature and pressure balance.
Single-Lever Metal Handle – Provides precise water flow and temperature control with a smooth operation feel.
2-Way Diverter – Easily switch between overhead rain shower and hand shower outlets with ergonomic diverter control.
Escutcheon Trim Plate – Ø180×3 mm SUS304 stainless steel plate for a refined and watertight wall finish.
Rainfall Overhead Shower – Ø200×2 mm stainless steel head with soft silicone nozzles for easy cleaning and a full rainfall experience.
Roof Shower Arm – Ø22×350 mm SUS304 stainless steel with G1/2" thread connection for secure ceiling installation.
Hand Shower Set – Single-function stainless steel hand shower delivers a comfortable, steady rain spray.
Brass Wall Bracket – Integrated G1/2" inlet/outlet design for strong support and easy connection.
Touch-Clean Soft Silicone Nozzles Wipe Clean In Seconds – clog-resistant for a consistently pure, even spray.
Explosion-Proof Hose – 1500 mm SS304 stainless steel flexible hose, tangle-free and pressure-resistant.
Easy Installation – Pre-assembled rough-in valve simplifies plumbing and reduces installation time and cost.

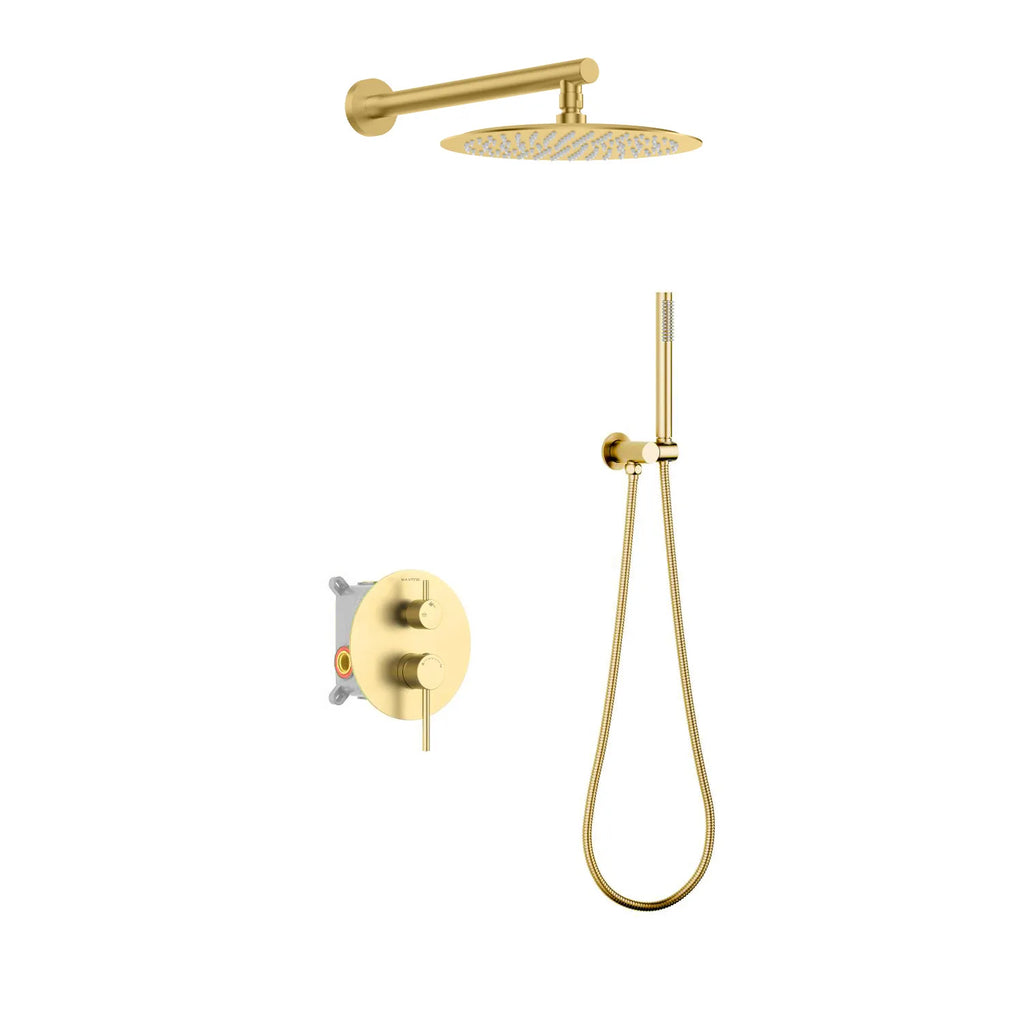

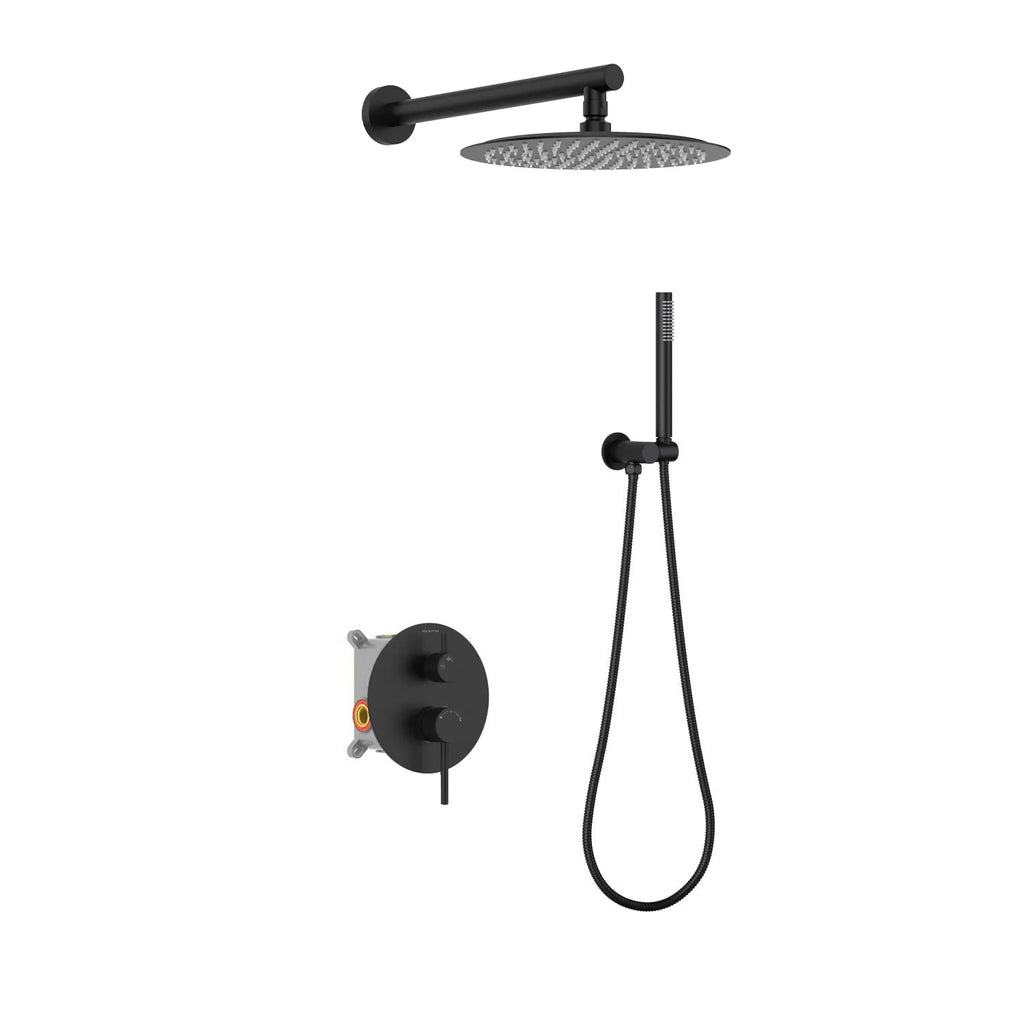

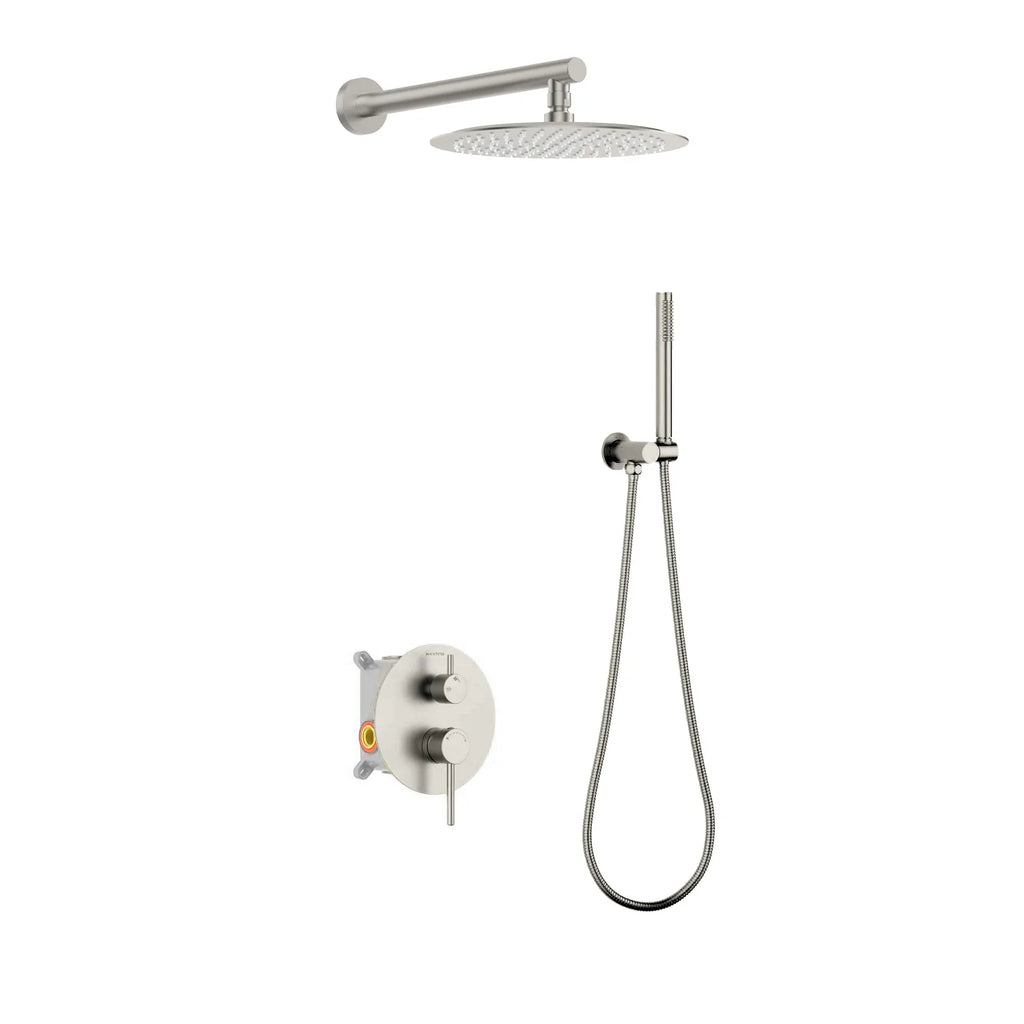

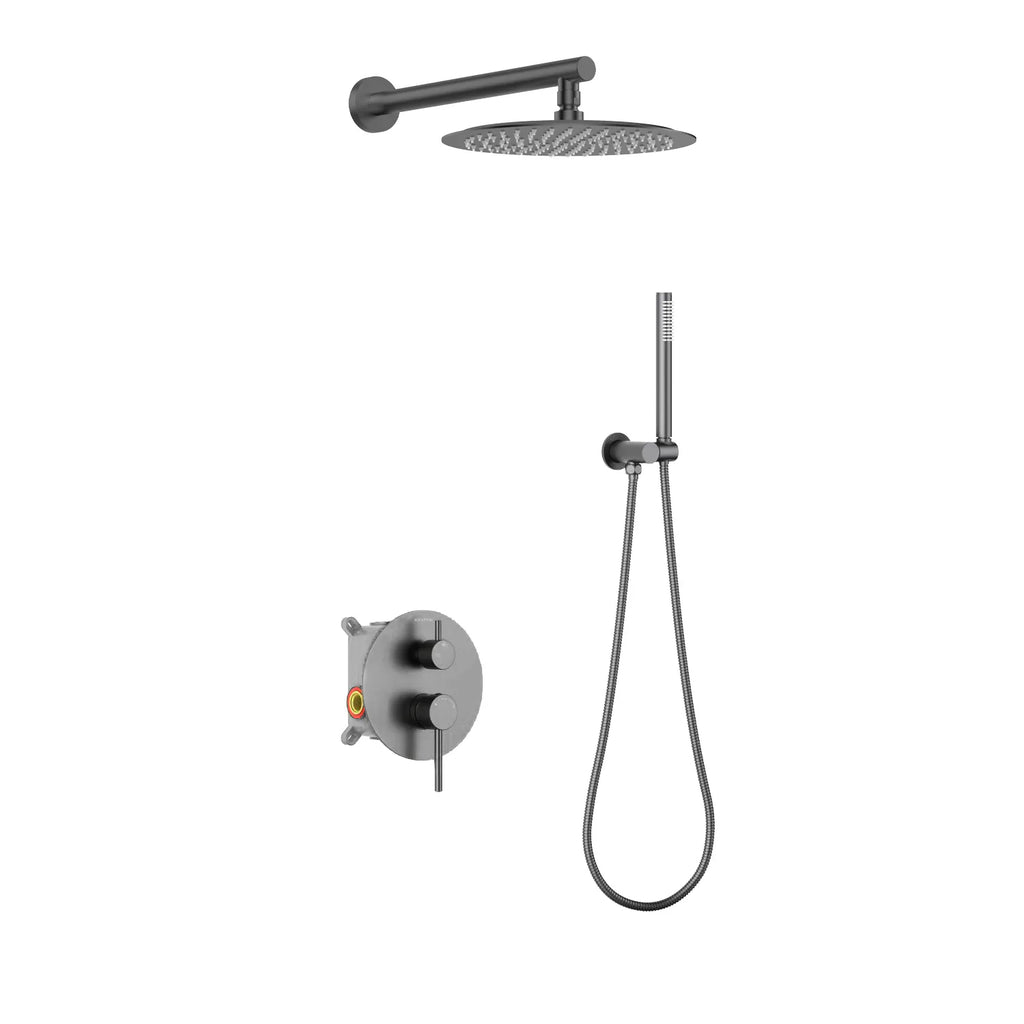

Surface Finishes – Chrome (CH), Brushed Nickel (BN), Brushed Gold (BG), Gunmetal (GM), Matte Black (MB).
Packing – Available in white or brown export box.

MODEL: AB512005BG

VIEW THE WHOLE COLLECTION

Original:

$811.45 USD

Product Feature
Q&A

The Maxtor AB512005 2-Way Concealed Shower System offers a seamless minimalist aesthetic with maximum performance. Built around a solid brass pressure balance valve and Spain CITEC cartridge, it delivers precise, consistent control of temperature and water flow. The Swiss Neoperl aerator, stainless steel rain shower, and hand shower set combine functionality and style for a truly indulgent shower experience.

Technical Specifications:

Model: AB512005
Type: 2-Way Wall-Concealed Shower System
Material: Solid Brass (Lead-Free ≤0.25%)
Cartridge: Spain CITEC 40 mm Pressure Balance Ceramic Cartridge
Diverter: 2-Function (Rain & Hand Shower)
Trim Plate: Ø180×3 mm SUS304 Stainless Steel
Overhead Shower: Ø200×2 mm SUS304 Rain Head, Silicone Nozzles
Shower Arm: Ø22×350 mm SUS304 Wall Arm (G1/2” Thread)
Hand Shower: Single Function SUS304 Stainless Steel
Hose: 1500 mm SS304 Explosion-Proof Flexible Hose
Wall Bracket: Brass with G1/2” Inlet & Outlet
Flow Rate: 2.0 GPM @ 60 PSI
Finish Options: CH / BN / BG / GM / MB
Packing: White or Brown Box

Applications

Residential and hotel bathrooms
Modern concealed wall installations
High-end renovation or architectural projects
Minimalist design spaces requiring a flush aesthetic

Redefine everyday comfort with Maxtor AB512005 — a refined concealed shower system blending performance, precision, and modern elegance.

Q1: What does “2-way” mean?

A1: It means the system offers two water outlets — one for the overhead rain shower and one for the hand shower.

Q2: Is the valve pressure-balanced?

A2: Yes — the Spain CITEC cartridge ensures stable temperature even if water pressure fluctuates.

Q3: Can the overhead shower be ceiling-mounted?

A3: Yes, it includes a Ø22×200 mm SUS304 ceiling shower arm with G1/2” connection.

Q4: Are the components corrosion-resistant?

A4: Yes, all visible parts are made of SUS304 stainless steel or PVD-coated brass for long-term protection.

Q5: What finishes are available?

A5: Chrome, Brushed Nickel, Brushed Gold, Gunmetal, and Matte Black.
