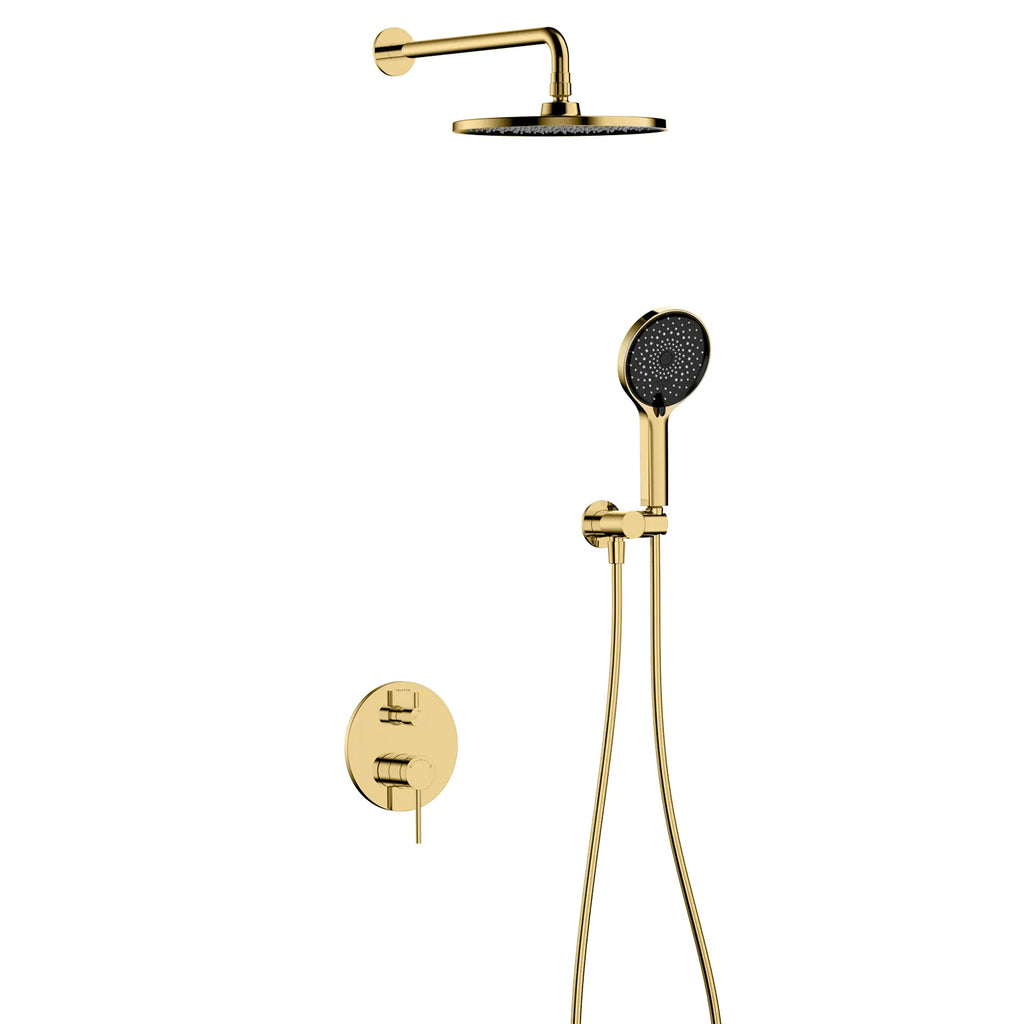

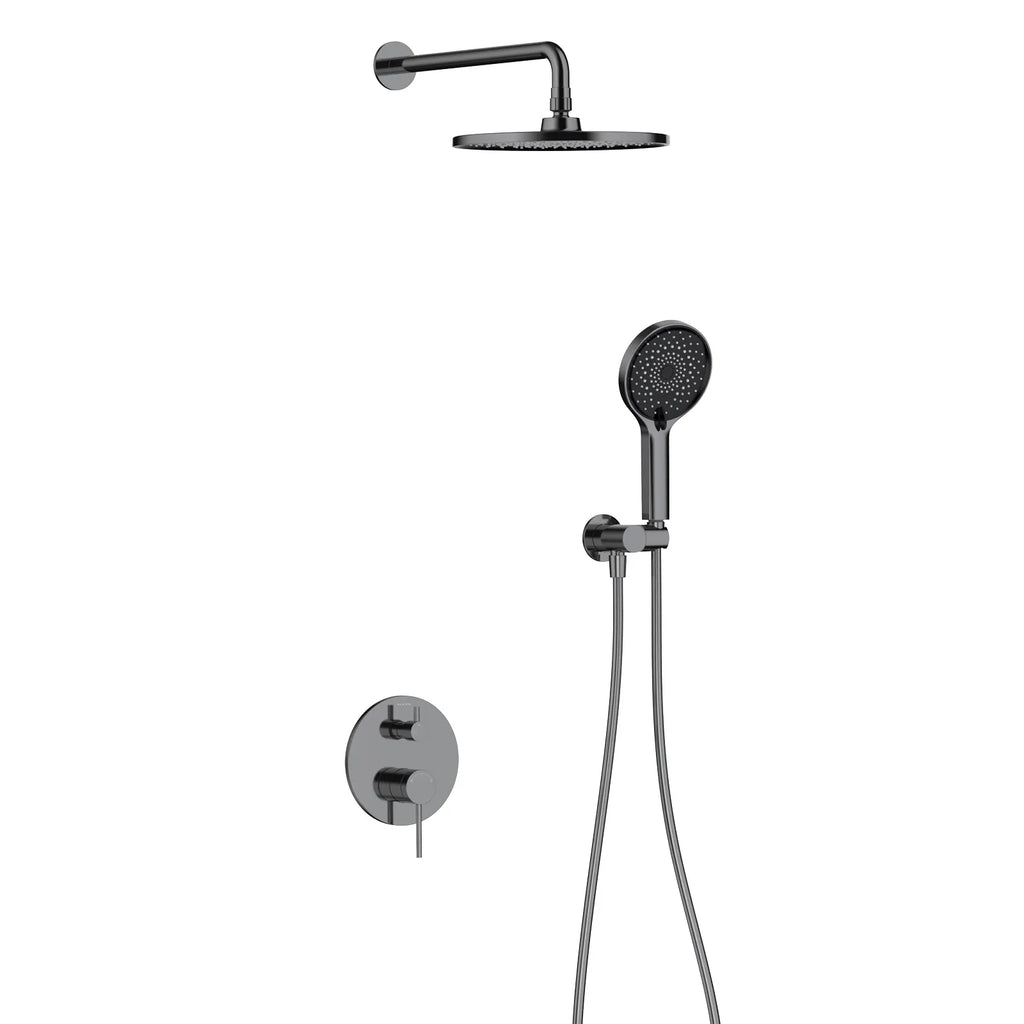

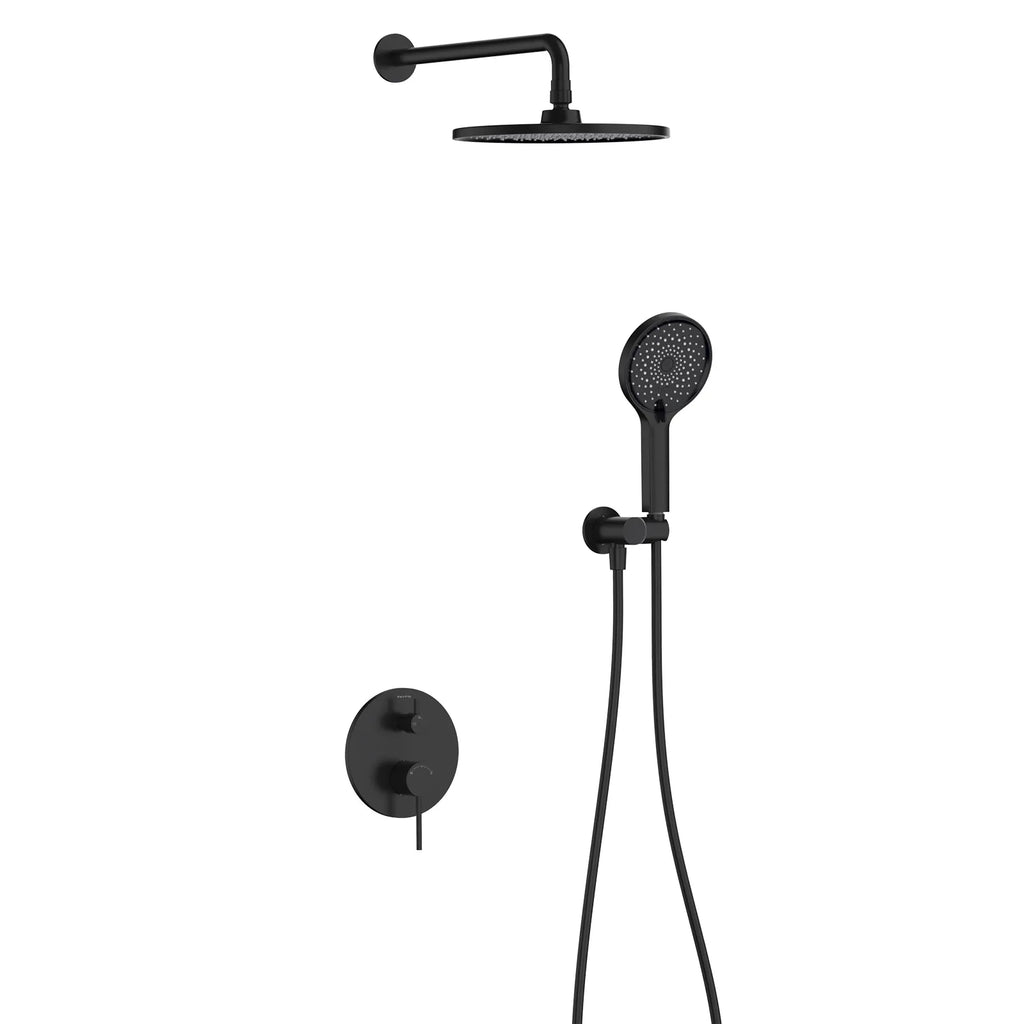

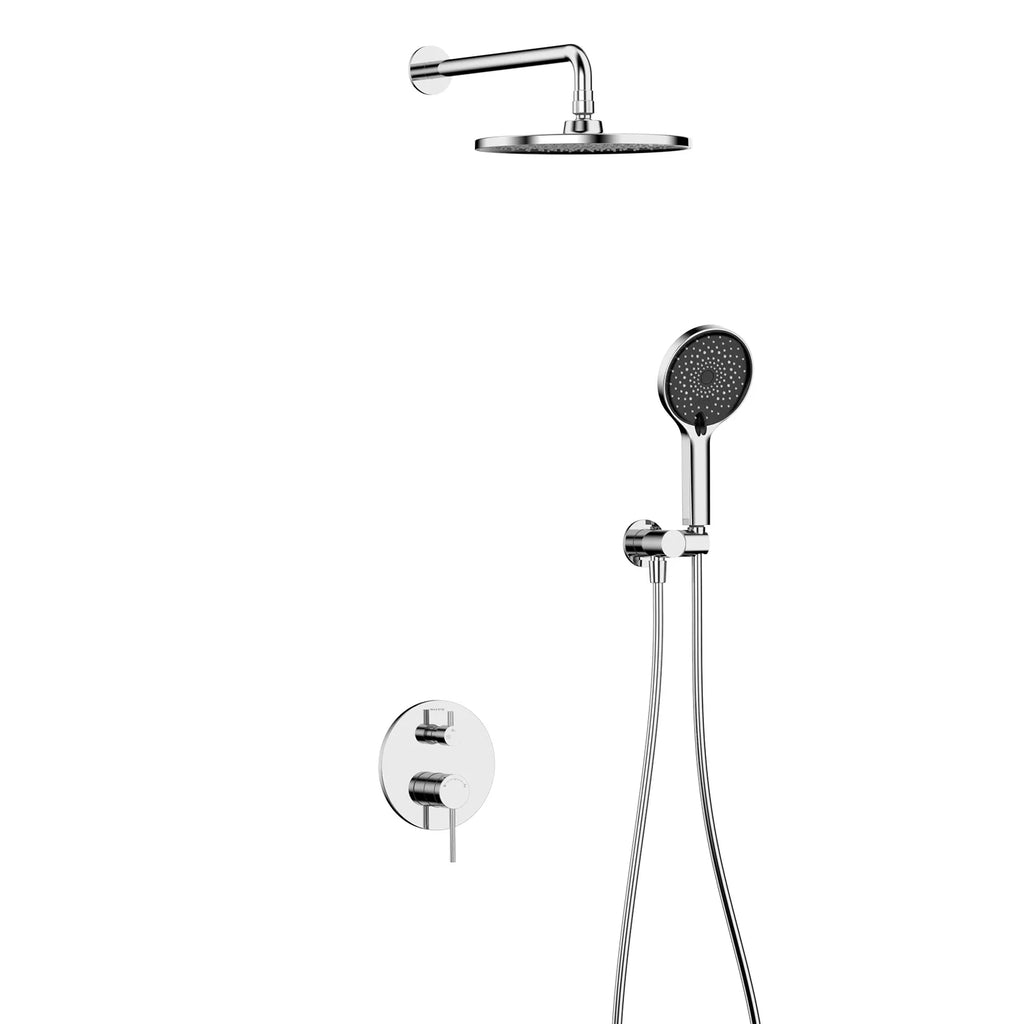

2-Way Wall Concealed Shower System with 10" Overhead & 3-Function Hand Shower

2-Way Wall Concealed Shower System with SUS304 Overhead Shower & 3-Function Hand Shower – AB502006

Clean Wall-Concealed Design – 2-way in-wall shower system keeps the working parts hidden, leaving only a slim round plate, rain head and hand shower on show for a neat, modern bathroom.
Solid Brass Valve with Box – Rough-in mixer body is made from solid brass and supplied with a protective box and trim kit, helping installers position the valve correctly and protect it during tiling.
Reliable Spain CITEC Cartridge – 35 mm ceramic cartridge has been tested to 500,000+ cycles to help prevent leakage and maintain smooth operation over years of daily use.
Easy Single-Lever Control – Metal handle offers precise control of both water flow and temperature so every shower feels just right.
Simple 2-Way Diverter – Metal diverter hand-wheel switches between overhead rain shower and hand shower outlet, ideal for both quick rinses and long, relaxing showers.
Brushed SUS304 Escutcheon – Ø155 × 3 mm SUS304 escutcheon plate gives a solid premium feel and covers the installation opening cleanly.
Comfortable 3-Function Hand Shower – ABS handheld shower offers three spray patterns to suit different moods, from gentle rinse to more focused spray.
Durable Solid Brass Fittings – Hand shower bracket and wall elbow are both solid brass with G1/2" inlet and outlet threads for a secure, long-lasting installation.
Full Stainless Steel Overhead Set – 350 × Ø22 mm SUS304 shower arm with G1/2" inlet/outlet and Ø250 × 12 mm ABS overhead shower (with brass swivel ball joint) create a generous 10" rain experience.
Touch-Clean Silicone Nozzles – Overhead shower uses soft silicone jets; simply rub with your fingers to remove limescale and keep the spray even.
Explosion-Proof Hose – 1500 mm SUS304 explosion-proof hose is flexible yet strong, suitable for family bathrooms and hotel use.
Adjustable Installation Depth – Mixer box allows installation depth from 60–92 mm, giving plumbers more freedom on different wall build-ups and saving rework time.
Time-Saving Installation – Valve box, G1/2" connections and clear dimensions help reduce plumbing labor and speed up project turnover.
Multiple Finishes – Available in Chrome (CH), Brushed Nickel (BN), Brushed Gold (BG), Gunmetal (GM) and Matte Black (MB) with durable electroplated / PVD finishes that pass strict salt-spray tests.
Project-Ready Packing – Each set is packed in a protective white or brown export box, easy for warehouse storage and delivery to site.

MODEL: AB402006BG

VIEW THE WHOLE COLLECTION

Original:

$638.53 USD

Product Feature
Documents & Specs
Q&A

Product Overview
AB502006 is built for people who like the look of a clean wall yet still want both a big rain shower and a flexible hand shower. The solid brass valve hides in the wall, protected by its box, while the single lever and 2-way diverter keep operation simple. Spain CITEC ceramic technology and SUS304 stainless parts help keep the shower running smoothly for years. For distributors and project buyers, it’s a straightforward way to add an “affordable luxury” concealed shower to a bathroom and kitchen room space solution lineup.

The MAXTOR AB502006 2-Way Wall Concealed Shower System combines a 10" rain shower, 3-function hand shower and solid brass in-wall valve into one compact kit. It is designed as an easy bathroom and kitchen room space solution for apartments, villas and hotel projects that want a clean look with dependable performance.

Model: AB502006
Type: 2-way wall concealed shower system with overhead shower and hand shower
Valve Body: Solid brass rough-in valve with protective box and trim plate kit
Cartridge: 35 mm Spain CITEC ceramic cartridge, tested 500,000+ cycles
Control: Single lever metal handle for flow and temperature
Diverter: Metal hand-wheel 2-way diverter – overhead shower / hand shower outlet
Escutcheon Plate: Ø155 × 3 mm SUS304 stainless steel
Overhead Shower: Ø250 × 12 mm ABS swivel rain shower head with brass joint ball and soft silicone nozzles
Shower Arm: 350 mm length, Ø22 mm SUS304 arm with G1/2" inlet and outlet threads
Hand Shower: 3-function ABS handheld shower
Hand Shower Bracket: Solid brass wall-mounted bracket
Wall Elbow: Solid brass elbow with G1/2" inlet and outlet
Hose: 1500 mm SUS304 stainless steel explosion-proof hose
Installation Depth: Adjustable mixer box depth 60–92 mm
Connections: Standard G1/2" hot/cold inlets and outlets
Finishes: CH / BN / BG / GM / MB (electroplated or PVD)
Standards (on request): Designed to align with EN and ASME shower mixer requirements; CE available
Application: Residential and commercial bathrooms, bathroom and kitchen room space solution projects
Packing: Individual white or brown box, export carton
Suggested Warranty: Mechanical lifetime warranty on cartridge & brass body; 5-year surface finish warranty under normal residential use

Applications

New-build apartments, condos and villas
Hotel and serviced apartment bathrooms
Renovation projects upgrading from exposed mixers to concealed showers
Showroom display programs needing a clean, minimalist concealed set in multiple finishes
Developer projects that want one reliable, repeatable concealed shower model across units

Implicit CTA + Demand-Oriented Message
Pair AB502006 with matching MAXTOR basin mixers and accessories in the same finish and you have a full set that’s easy for your customer to choose and easy for your installer to fit. Share your target quantity and market, and this concealed shower can become a key piece in your next project program—big-brand feeling, without the big-brand cost.

Q1: What is included in the AB502006 concealed shower set?

The set includes the solid brass valve with box and trim plate, Ø250 mm overhead shower, 350 mm SUS304 shower arm, 3-function hand shower, brass bracket, brass wall elbow and 1500 mm SUS304 explosion-proof hose.

Q2: Can the valve be adjusted for different wall thicknesses?

Yes. The mixer box allows installation depth from 60–92 mm, so plumbers can adapt it to different wall build-ups (tiles, backer boards, etc.) without guesswork.

Q3: Is this shower system easy to maintain?

The rain head has soft silicone nozzles for quick limescale removal, and the CITEC ceramic cartridge is designed for long-term use. Regular wiping with a soft cloth keeps the finish looking new.

Q4: Is it suitable for hotel or multi-unit projects?

Yes. The solid brass construction, stainless components and explosion-proof hose make it a good choice for hotel, apartment and villa projects where durability and low maintenance are important.

Q5: Which finishes are available?

Chrome, Brushed Nickel, Brushed Gold, Gunmetal and Matte Black are available so you can match the rest of your bathroom and kitchen room space solution fittings.
