3-Way Wall Concealed Shower System with Overhead Shower, Hand Shower &

3-Way Wall Concealed Shower System with Overhead Shower, Hand Shower & Tub Spout – AB503006

Complete 3-Way Shower & Bath Solution – One concealed system controls overhead rain shower, hand shower and tub spout, ideal for combined shower-bath spaces.
Solid Brass Valve with Mixer Box – In-wall faucet body is made from solid brass and comes with a mixer box and trim plate, helping protect the valve during installation and tiling.
Spain CITEC 35 mm Cartridge – High-quality ceramic cartridge tested over 500,000 cycles for smooth operation and long-term, leak-free performance.
Single Lever Control – Metal handle offers precise adjustment of both water flow and temperature, making everyday use simple for all family members.
3-Way Diverter – Metal diverter control directs water to the overhead shower, tub spout or hand shower outlet, supporting flexible bathroom and kitchen room space solution layouts.
SUS304 Trim Plate – Ø150 × 3 mm stainless-steel escutcheon plate sits tight to the wall, giving a clean, minimal look that suits modern bathrooms.
Comfortable Hand Shower – 3-way ABS hand shower provides a comfortable rain-style spray for easy rinsing and daily cleaning.
Durable Brass Fittings – Hand shower bracket with G 1/2" inlet/outlet and 185 mm solid brass tub spout are built for heavy use in family and hotel projects.
Swiss Neoperl Aerator – Tub spout uses a Swiss Neoperl aerator to create a soft, full jet that feels rich while helping to reduce splashing and water waste.
Generous Rain Overhead Shower – Ø200 × 12 mm overhead shower with soft silicone nozzles delivers a wide, even rainfall for relaxing showers.
Long Stainless Shower Arm – 350 × Ø22 mm SUS304 shower arm with G 1/2" threads brings the rain head out to the ideal position for comfortable showering space.
Explosion-Proof Hose – 1500 mm SUS304 explosion-proof hose offers flexibility and durability, even in high-traffic bathrooms.
Adjustable Installation Depth – Mixer box allows installation depth from 60–92 mm, helping installers adapt easily to different wall constructions and finishes.
Time-Saving Install – Clear G 1/2" connections and integrated box design help reduce plumbing time and lower project costs.

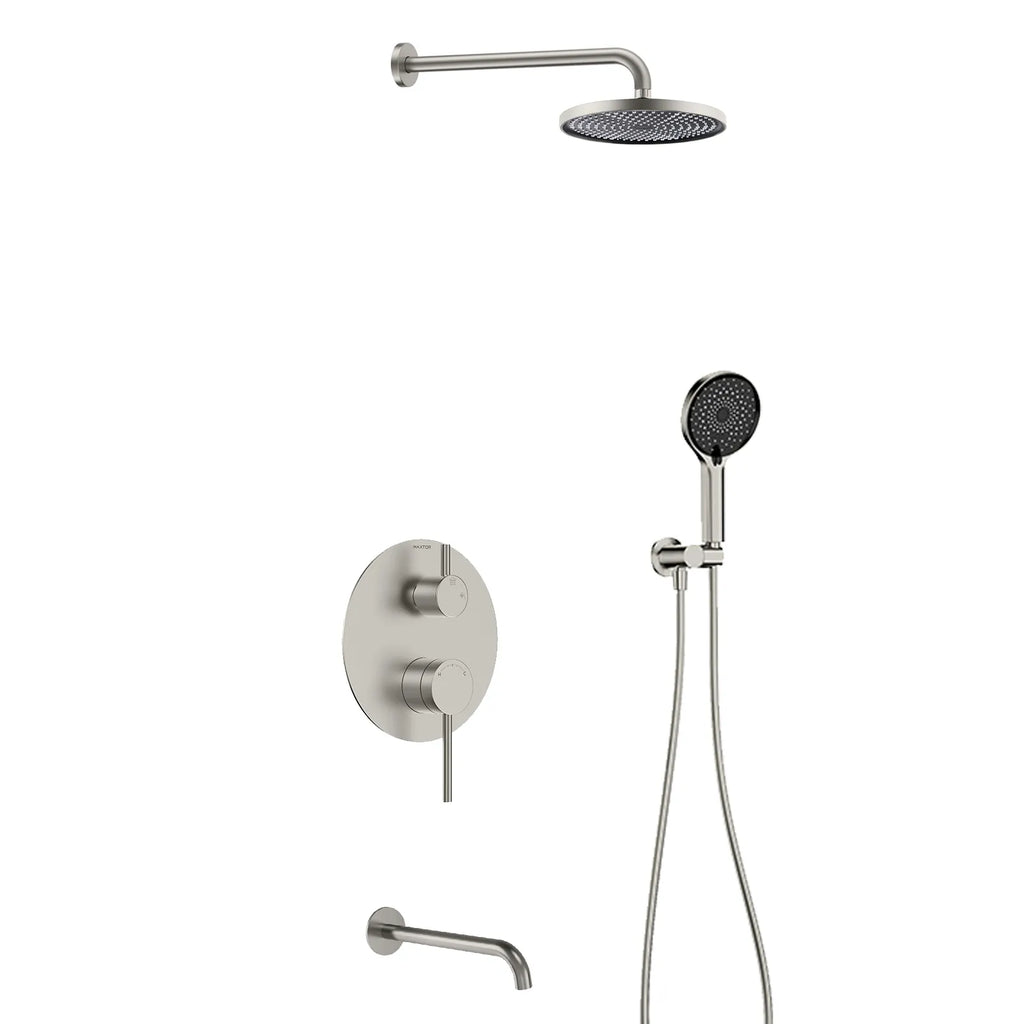

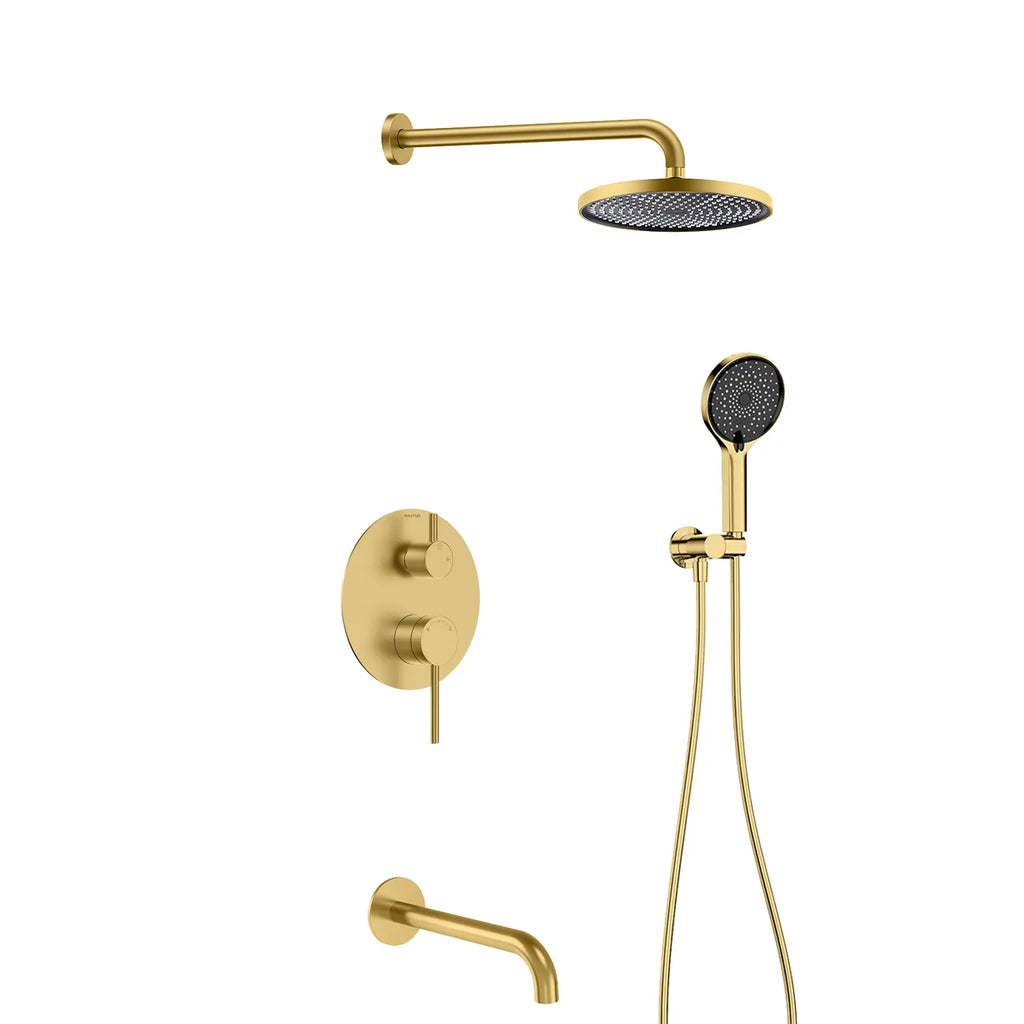

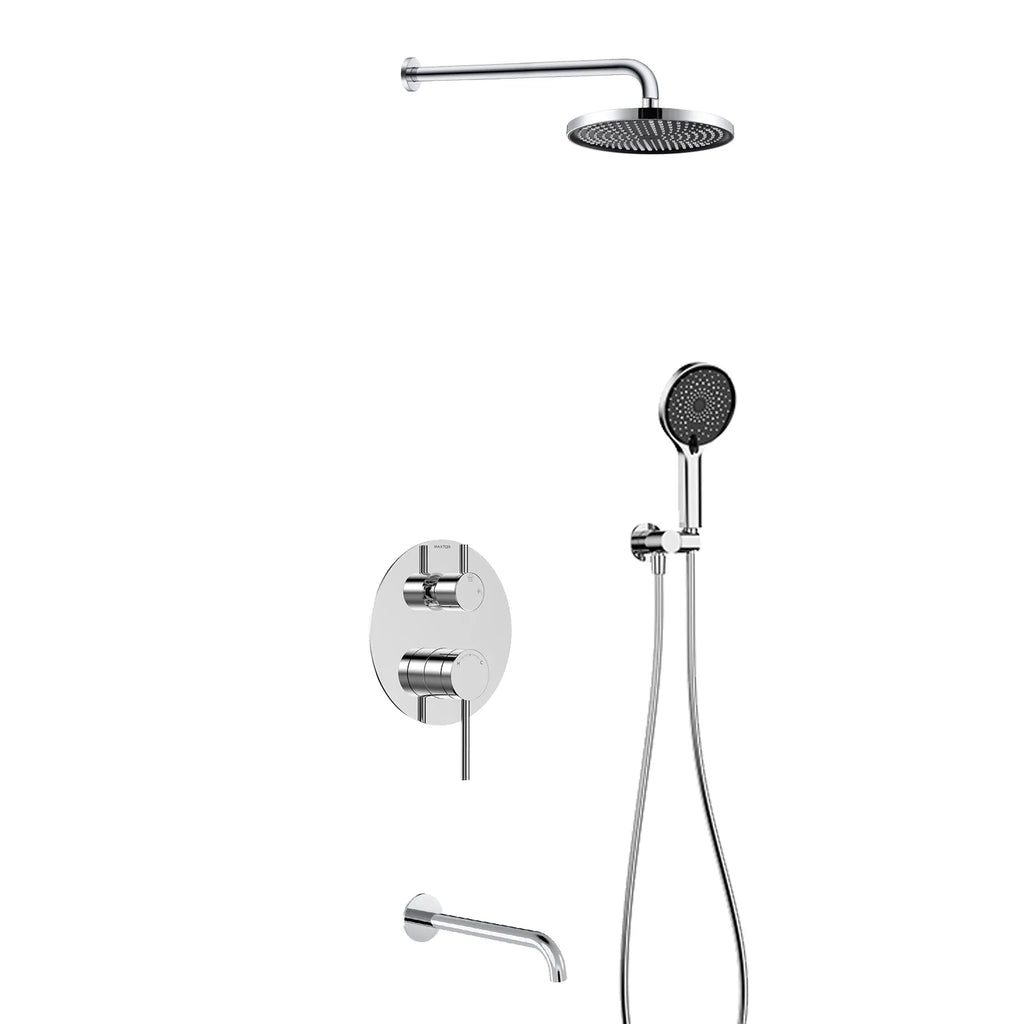

Multiple Finishes – Available in Chrome (CH), Brushed Nickel (BN), Brushed Gold (BG), Gunmetal (GM) and Matte Black (MB) with durable electroplated / PVD finishes.
Project-Ready Packaging – Each kit is packed in a white or brown export box, convenient for warehousing and site delivery.

MODEL: AB503006BG

VIEW THE WHOLE COLLECTION

Original:

$858.53 USD

Product Feature
Documents & Specs
Q&A

The MAXTOR AB503006 3-Way Wall Concealed Shower System is a compact in-wall solution that brings together an overhead rain shower, hand shower and tub spout in one clean design. With a solid brass rough-in valve, Spain CITEC cartridge and Swiss Neoperl aerator, it is built as an affordable luxury option for bathroom and kitchen room space solution projects.

Model: AB503006
Type: 3-way wall concealed shower & bathtub system – overhead shower, hand shower, tub spout
Valve Body: Solid brass shower faucet rough-in with mixer box and trim plate
Cartridge: Spain CITEC 35 mm ceramic cartridge, tested 500,000+ cycles
Control: Single lever metal handle for water flow and temperature
Diverter: Metal 3-way diverter – overhead shower / tub spout / hand shower outlet
Escutcheon Plate: Ø150 × 3 mm SUS304 stainless steel
Hand Shower: 3-way ABS handheld shower, rain-style spray
Hand Shower Bracket: Brass bracket with G 1/2" inlet and outlet
Tub Spout: Solid brass spout, 185 mm length, with Swiss Neoperl aerator
Overhead Shower: Ø200 × 12 mm shower head with touch-clean soft silicone nozzles
Shower Arm: 350 mm length, Ø22 mm SUS304 stainless steel arm with G 1/2" thread
Hose: 1500 mm SUS304 explosion-proof shower hose
Installation Depth: Adjustable mixer box depth 60–92 mm
Connections: Standard G 1/2" hot/cold inlets and outlets
Finishes: CH / BN / BG / GM / MB (electroplated or PVD)
Application: Residential and commercial bathrooms, combined shower-bath bathroom and kitchen room space solution projects
Packing: Individual white or brown box, export carton
Suggested Warranty: Mechanical lifetime warranty on cartridge & brass body; 5-year finish warranty under normal residential use

Q1: What is included in the AB503006 set?

It includes the solid brass concealed valve with mixer box and trim plate, Ø200 mm overhead shower, 350 mm SUS304 shower arm, 3-way ABS hand shower, brass hand shower bracket, 185 mm brass tub spout with Swiss Neoperl aerator and a 1500 mm SUS304 explosion-proof hose.

Q2: Can this be used for both showering and bathing?

Yes. The 3-way diverter lets you choose overhead shower, hand shower or tub spout, making it ideal for combined bath-shower spaces.

Q3: How difficult is installation?

The mixer box with adjustable depth (60–92 mm) and G 1/2" connections is designed to make installation straightforward and to save plumbing time on site.

Q4: Is the finish durable in hard-water areas?

The product uses high-quality electroplated or PVD finishes over brass and stainless steel. Soft silicone nozzles on the overhead shower help you quickly wipe away limescale and keep the spray pattern even.

Q5: Is this suitable for hotel or multi-unit projects?

Yes. The solid brass construction, Spain CITEC cartridge and Swiss Neoperl aerator deliver stable quality with low after-sales risk, which is ideal for hotel and developer projects.
