Concealed Brass Valve With Trim Kit Rain Shower Set AH502300

Concealed Brass Valve With Trim Kit Rain Shower Set AH502300

Solid Brass Valve with Trim Plate: Special horizontal installation design ensures strength and long-term durability.
Spain CITEC 35mm Cartridge: Tested 500,000 times to guarantee smooth operation and leak-free performance.
Single Lever Metal Handle: Provides precise water flow and temperature control.
Metal Diverter Control: Switch easily between overhead shower and hand shower outlet.
Premium SUS304 Components: 3pcs 85×85×3mm escutcheon plate for a stylish and secure wall finish.
SUS304 Stainless Steel Hand Shower: Modern square handheld sprayer with powerful spray.
250×250mm Overhead Shower: SUS304 rainfall shower head with self-clean silicone nozzles for a relaxing rain experience.
Adjustable Brass Swivel Ball Joint: Flexible shower angle adjustment for a personalized experience.
Explosion-Proof SUS304 Hose: 1500mm stainless steel hose provides durability and safety under high pressure.

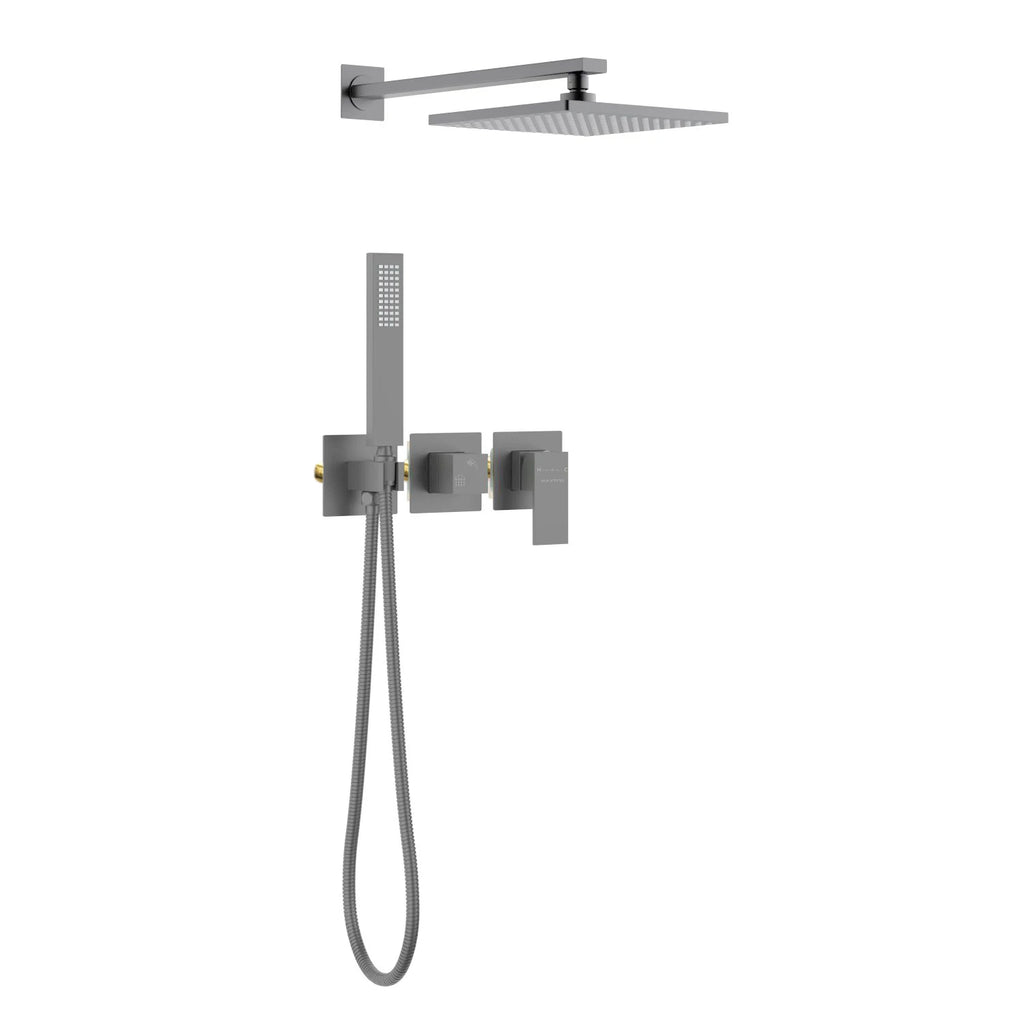

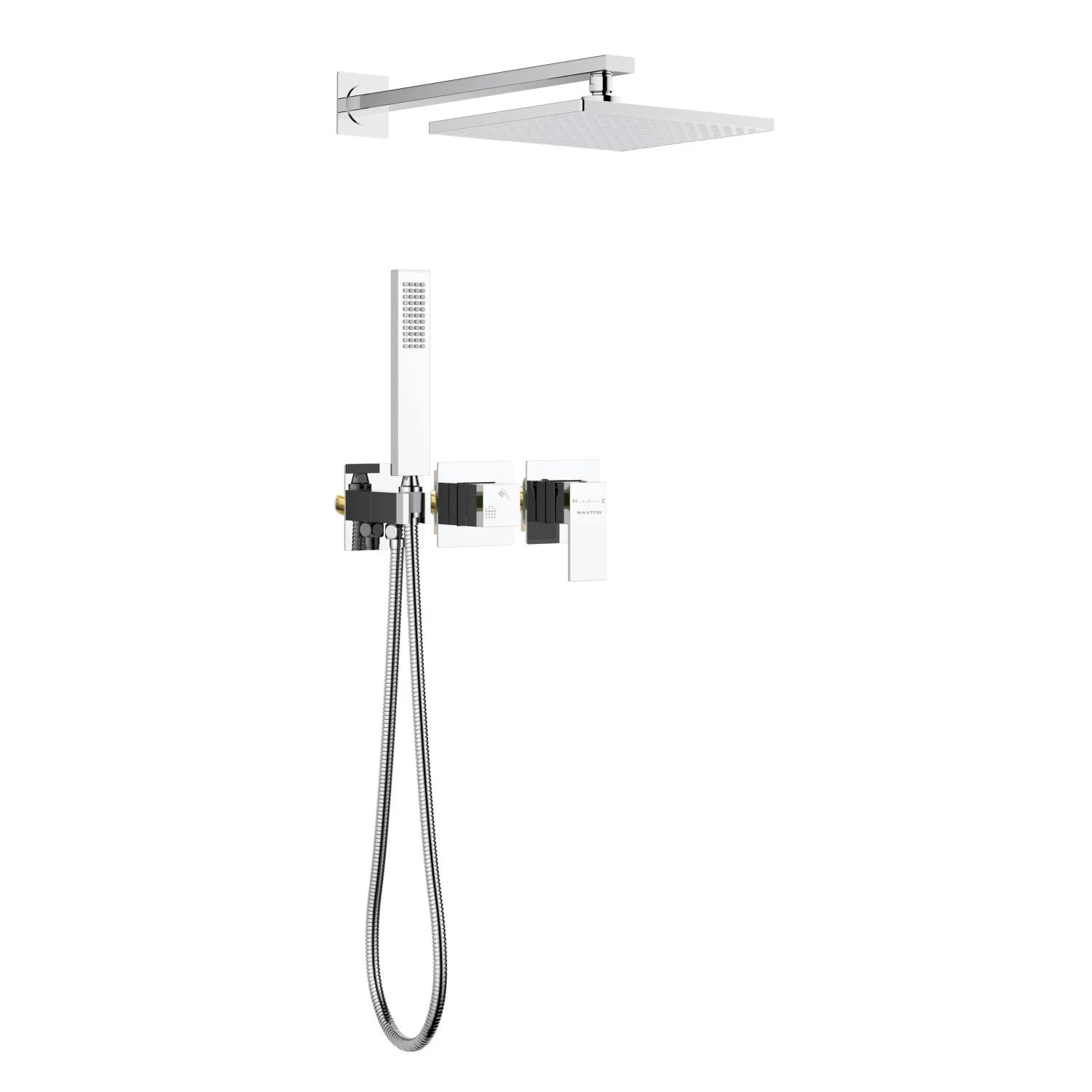

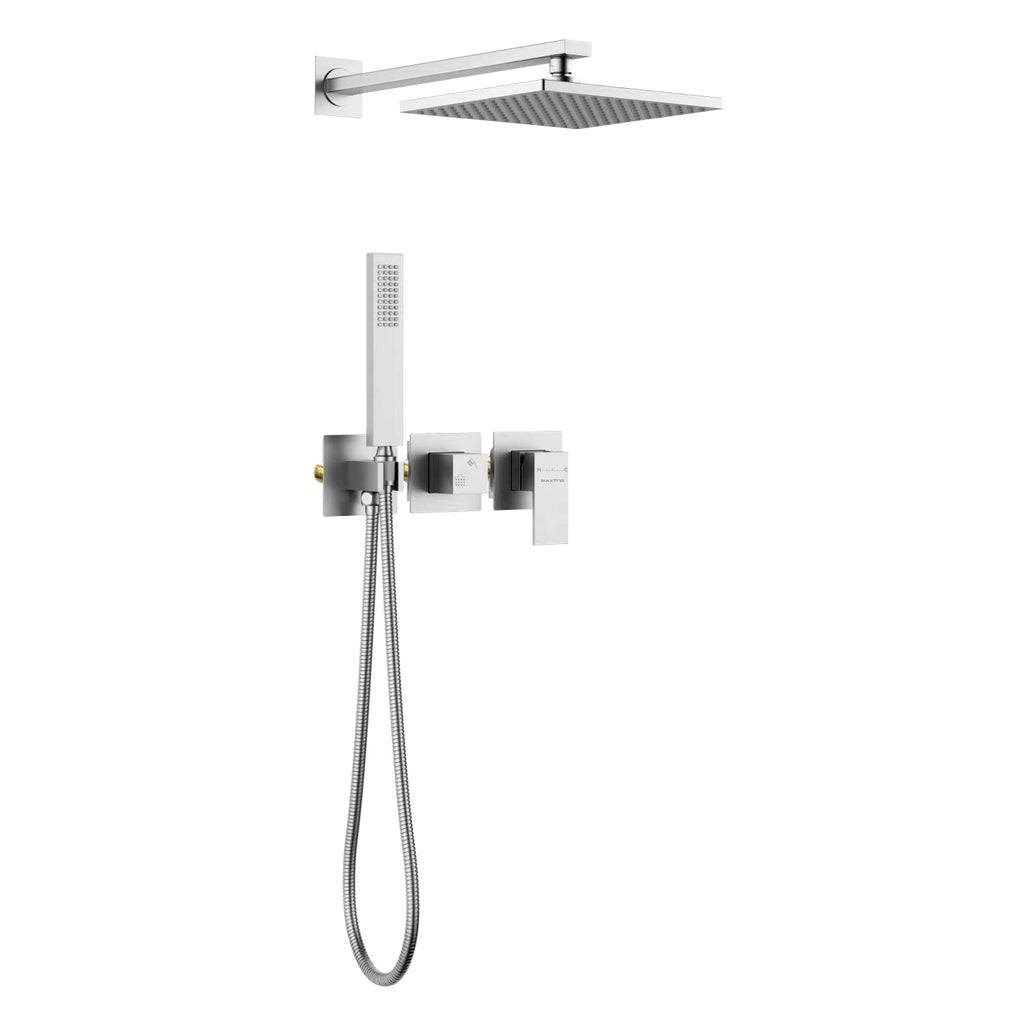

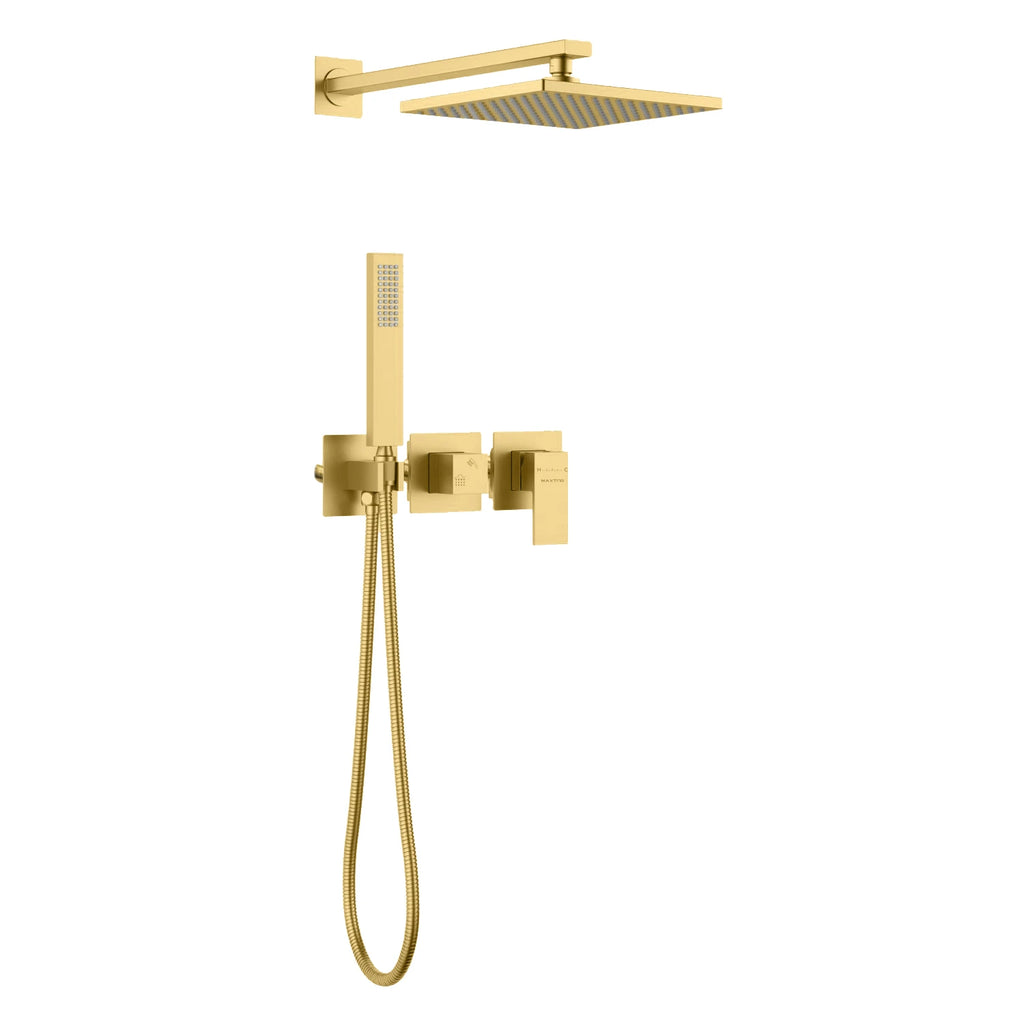

Multiple Finishes: Chrome, Matte Black, Brushed Gold, Brushed Nickel, and Gunmetal with PVD coating.

MODEL: AH502300CH

VIEW THE WHOLE COLLECTION

$901.37

Product Feature
Documents & Specs
Q&A

Short Description:

The MAXTOR AH502300 2 Way Wall Concealed Shower System combines modern square design with premium materials. Featuring a solid brass valve, Spain CITEC cartridge, SUS304 rainfall shower, stainless steel hand shower, and explosion-proof hose, this system ensures durability, precision, and a luxury shower experience.

Product Technical Parameters:

Model: AH502300
Function: 2 Way (Overhead Shower + Handheld Shower)
Valve Material: Solid Brass (horizontal installation, optional with box)
Cartridge: Spain CITEC 35mm ceramic cartridge, 500,000 cycle tested
Overhead Shower: 250×250×2mm SUS304 with self-clean silicone nozzles
Shower Arm: 400×35mm SUS304 with 62×62mm escutcheon plate
Handheld Shower: SUS304 stainless steel hand shower
Hose: 1500mm SUS304 stainless steel explosion-proof hose
Escutcheon Plate: 3pcs 85×85×3mm SUS304 stainless steel
Connection: Standard NPT 1/2” outlet
Finishes: Chrome, Matte Black, Brushed Gold, Brushed Nickel, Gunmetal (PVD coating)
Installation: Concealed wall mount, easy installation

Packaging:

Each set is packed with EPE foam and a sturdy white or brown box for safe transportation.

Warranty:

5 Years Finish Warranty (PVD coating)

Lifetime Mechanical Warranty (cartridge & brass body)

Certifications:

CE / ISO9001 Certified

Lead-free compliant (for US, AU, NZ markets)

Ah502300 drawing

Q1: What makes the AH502300 durable?

A1: It uses a solid brass valve, SUS304 stainless steel overhead and hand shower, and an explosion-proof hose for maximum longevity.

Q2: How precise is the water control?

A2: The Spain CITEC 35mm ceramic cartridge ensures smooth and accurate water flow and temperature control.
Q3: Does it come with all installation parts?

A3: Yes, it includes the valve, overhead shower, hand shower, hose, escutcheon plates, and shower arm.
Q4: What finishes are available?

A4: Chrome, Matte Black, Brushed Gold, Brushed Nickel, and Gunmetal, all with PVD coating for scratch resistance.
Q5: Is the hose safe under high pressure?

A5: Yes, the 1500mm SUS304 stainless steel hose is explosion-proof and designed for high-pressure use.
