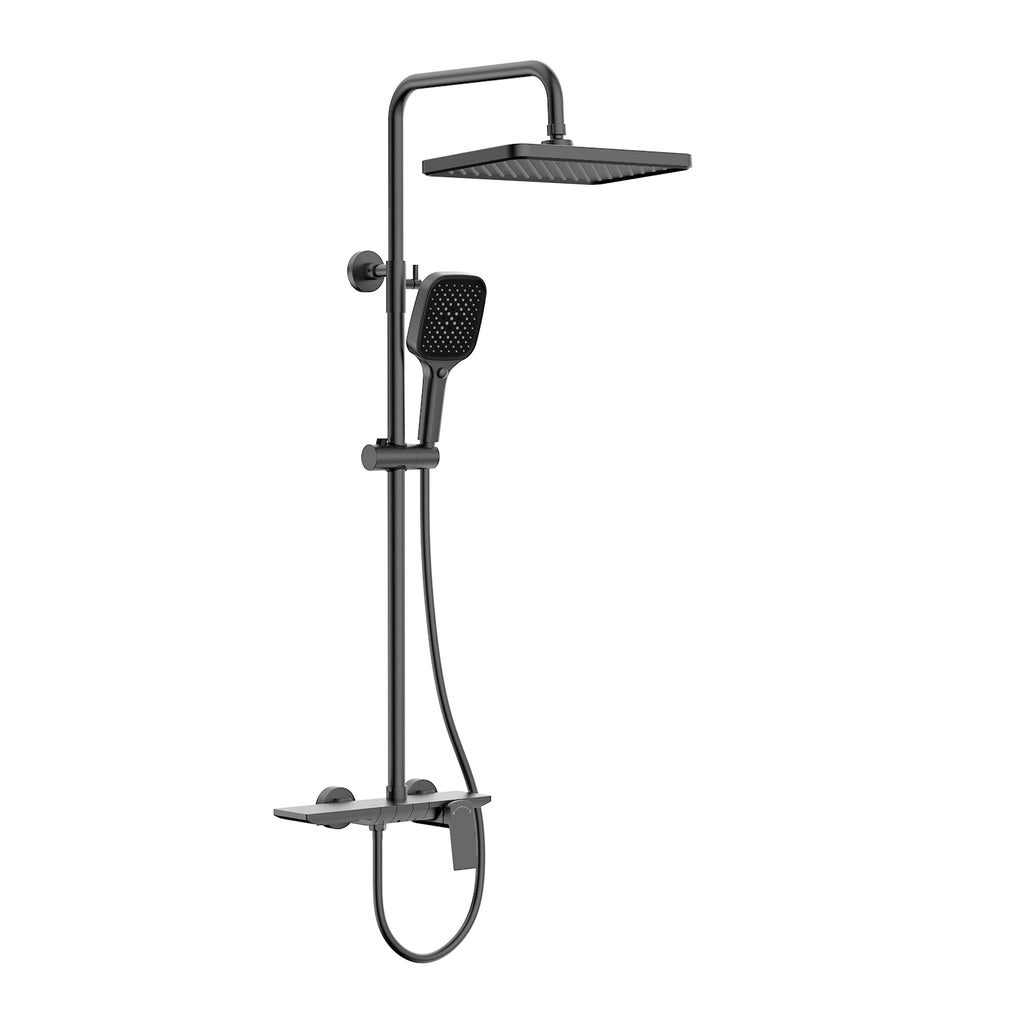

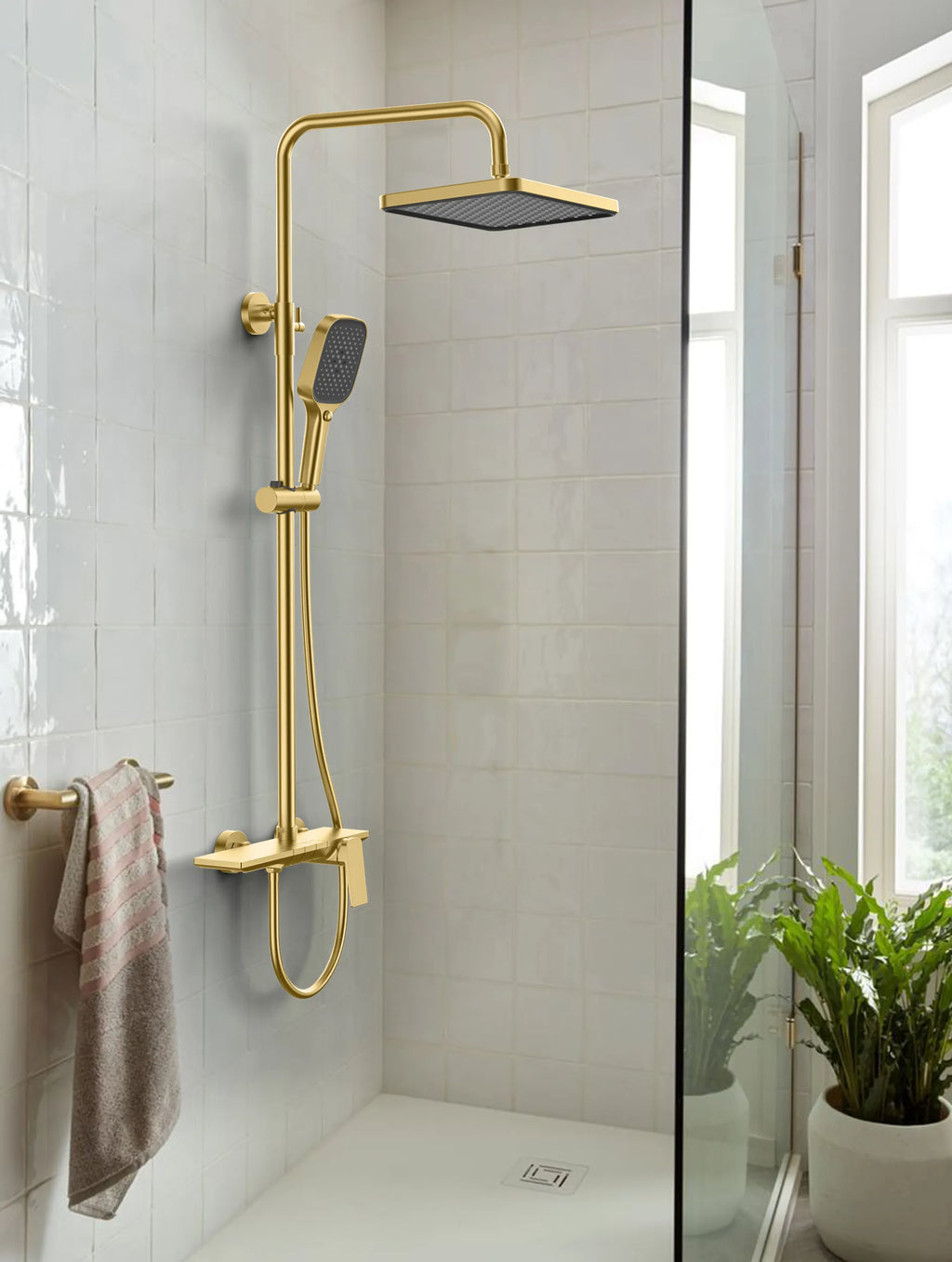

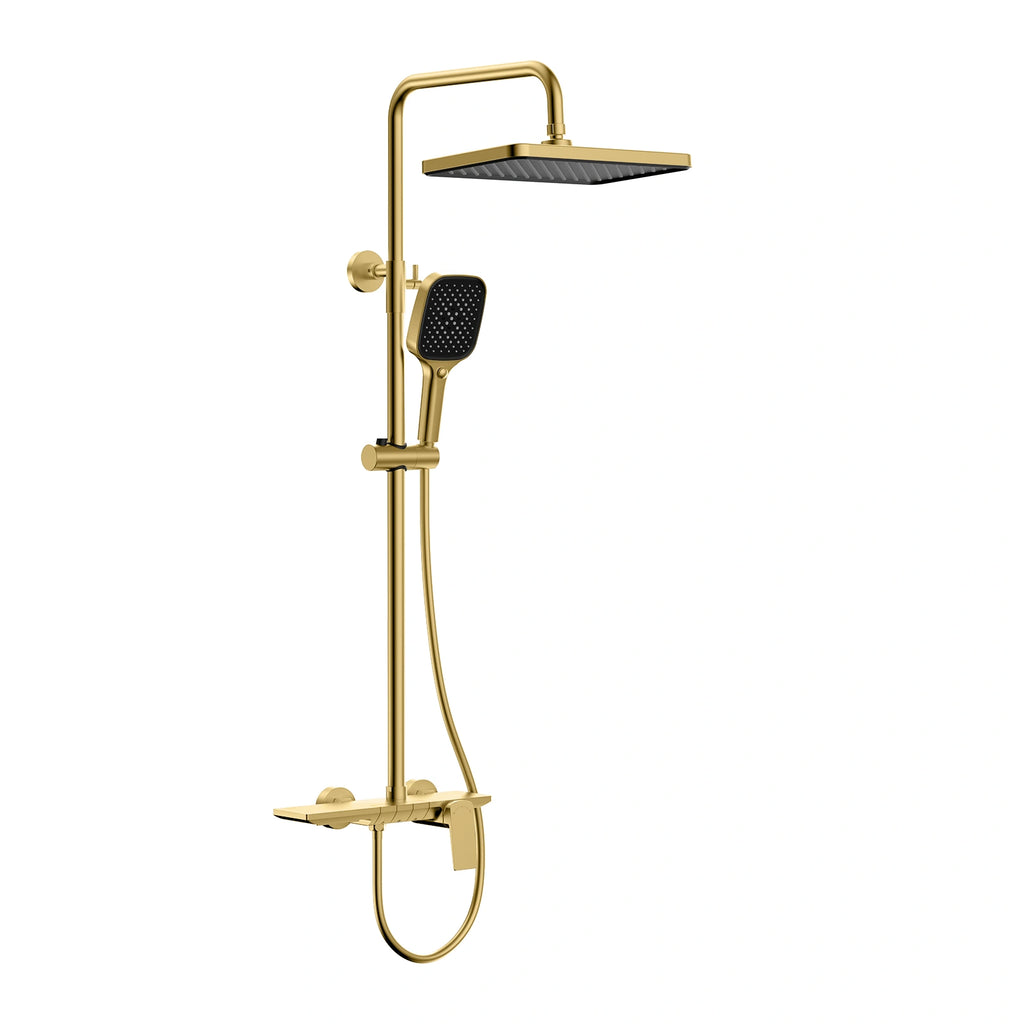

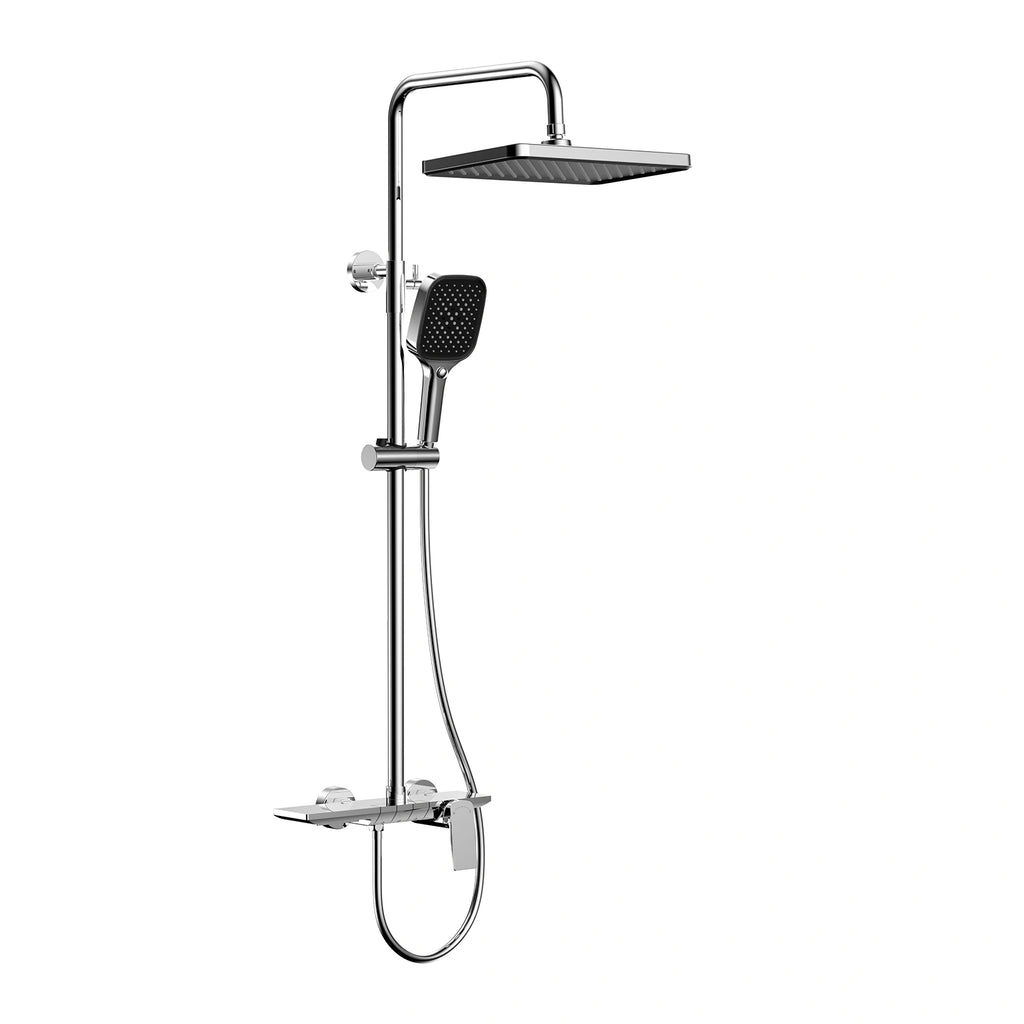

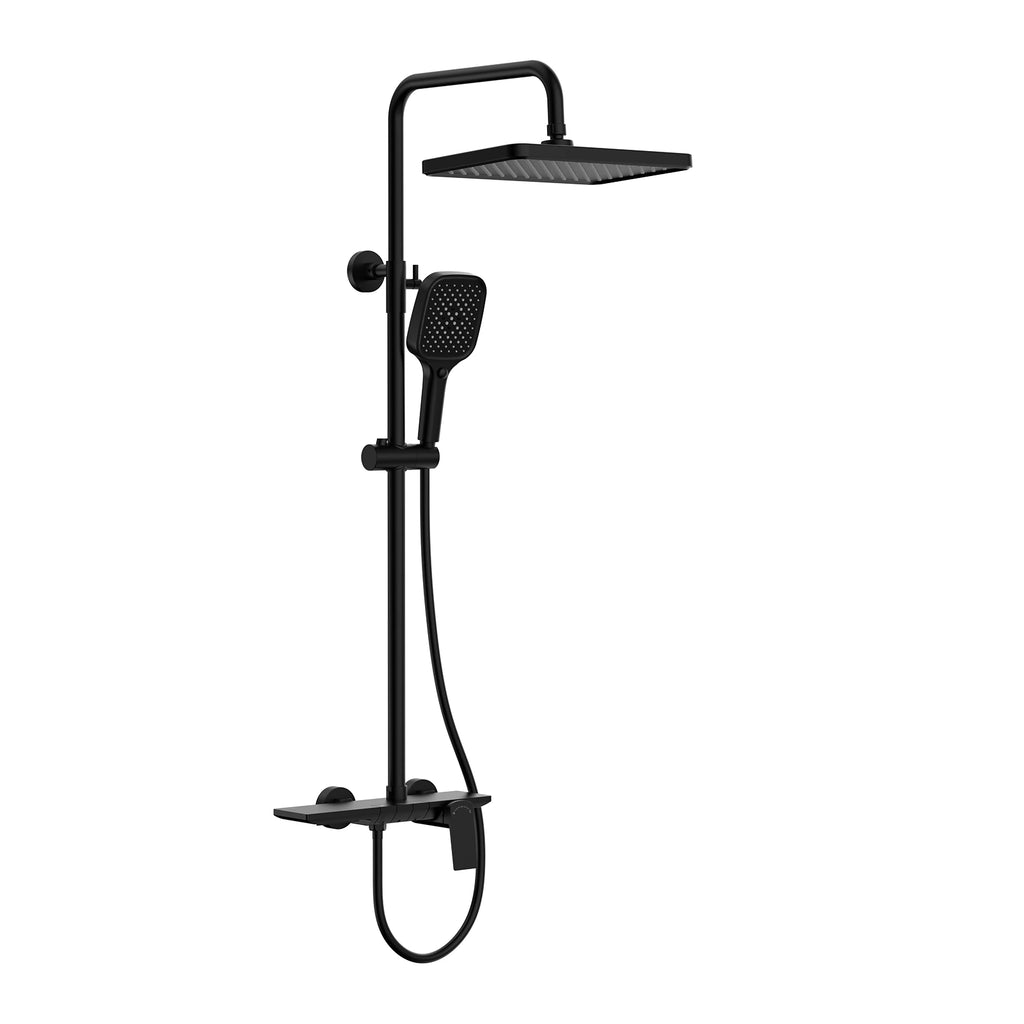

3 way shower column system featured overhead shower, hand shower and b

3 way shower column system featured overhead shower, hand shower and bathtub filler-AB403065

3 way exposed shower column system features overhead rain shower, 3-function handheld shower and swivel bathtub filler spout in one complete kit.
Solid lead-free brass mixer body and components, suitable for USA, Australia and New Zealand markets requiring ≤0.25% lead content.
35 mm Spain CITEC ceramic cartridge, tested to over 500,000 cycles for long-lasting, leak-free performance.
Single lever handle provides precise control of both water flow and temperature for everyday comfort.
Metal hand-wheel diverter lets you easily switch between overhead shower, hand shower and tub spout.
Ø25 × 778 mm fixed rail paired with Ø22 × (65–542) mm height-adjustable rail creates a stable, flexible shower column.
ABS height-adjustable hand shower bracket slides smoothly along the rail so every family member can find the perfect height.
3-function ABS handheld shower delivers comfortable rain, massage spray and mixed spray modes for a personalised shower experience.
320 × 210 × 12 mm ABS overhead shower provides a large coverage area and true rainfall sensation for spa-like relaxation.
Solid brass bath spout with unlimited swivel and 174 mm reach, equipped with Swiss Neoperl aerator for a soft, splash-reducing stream.
370 mm long shower arm positions the overhead shower further into the enclosure, giving more space and comfort under the spray.
1500 mm SUS304 stainless steel explosion-proof hose with EPDM inner tube ensures durable, safe water delivery to the hand shower.
Solid brass shower mixer wall elbow included for a neat, secure connection and easier installation.
Ø60 × 20 mm trim plated covers create a clean, finished look at the wall connections.
Available in premium finishes including chrome, brushed nickel, brushed gold, gunmetal and matte black to match modern bathroom styles.
Packed in a protective white or brown export box with EPE foam to minimise transport damage.

MODEL: AB403065GM

VIEW THE WHOLE COLLECTION

Original:

$1,380.16 USD

Product Feature
Documents & Specs
Q&A

This 3 way exposed shower column system offers a full showering solution with brass mixer, large overhead rain shower, ergonomic hand shower and swivel tub spout, ideal for modern family bathrooms and hotels.

Material: Solid lead-free brass mixer body and components, ABS shower heads, SUS304 stainless steel hose and rail parts.
Cartridge: 35 mm Spain CITEC ceramic cartridge, past 500,000 cycle testing.
Functions: 3 way diverter – overhead rain shower / hand shower / bathtub spout.
Overhead Shower: 320 × 210 × 12 mm ABS rain shower head.
Hand Shower: 3-function ABS handheld – rain, massage jet and mixed spray.
Slide Rail: Ø25 × 778 mm fixed rail + Ø22 × (65–542) mm height-adjustable rail.
Hose: 1500 mm SUS304 stainless steel explosion-proof shower hose.
Bath Spout: Solid brass swivel tub spout, 174 mm reach with Swiss Neoperl aerator.
Diverter: Metal hand-wheel diverter for overhead, hand shower and tub spout.
Control: Single lever handle for water flow and temperature adjustment.
Wall Elbow: Solid brass shower mixer wall elbow included.
Finishes: Chrome, brushed nickel, brushed gold, gunmetal, matte black.
Installation: Wall-mounted exposed mixer with column; compatible with standard 1/2" inlets.
Packaging: Supplied in white or brown box with EPE inner protection.
3 way exposed shower column system with overhead rain shower, 3-function hand shower and swivel tub spout in one complete kit.
Solid lead-free brass mixer with Spain CITEC 35 mm ceramic cartridge, tested to over 500,000 cycles for durable, leak-free use.
Large 320 × 210 mm rain shower head and 370 mm arm create a generous rainfall zone for hotel-style comfort.
Height-adjustable rail and sliding bracket make it easy to set the perfect hand shower position for every family member.
Solid brass tub spout with Swiss Neoperl aerator delivers a smooth, splash-reducing stream for fast, comfortable filling.
Available in chrome, brushed nickel, brushed gold, gunmetal and matte black to match contemporary bathroom décor.
Ready to upgrade to a hotel-style 3 way shower column with rain shower, hand shower and tub filler? Choose your favourite MAXTOR finish and refresh your bathroom now.

Ab403065 drawing

Q1: Does this shower column include both the overhead and hand shower plus tub spout?

A1: Yes. The set includes the exposed mixer, overhead rain shower, height-adjustable slide rail, 3-function hand shower, swivel tub spout, stainless steel hose and wall elbow.

Q2: Can I adjust the height and angle of the hand shower?

A2: Yes. The ABS hand shower bracket slides along the rail and tilts, so you can raise, lower or angle the hand shower for kids, adults or seated showering.

Q3: Is the shower system suitable for my existing plumbing?

A3: The mixer is designed for standard wall-mounted 1/2" connections commonly used in most residential bathrooms, making it compatible with typical plumbing layouts.

Q4: How do I switch between the rain shower, hand shower and tub spout?

A4: Simply turn the metal hand-wheel diverter on the mixer shelf. It directs water to the overhead shower, hand shower or tub spout as needed.

Q5: Is maintenance difficult for the overhead and hand shower?

A5: No. Both shower heads feature easy-clean nozzles—just rub them with your fingers to remove limescale and keep the spray pattern clear.
