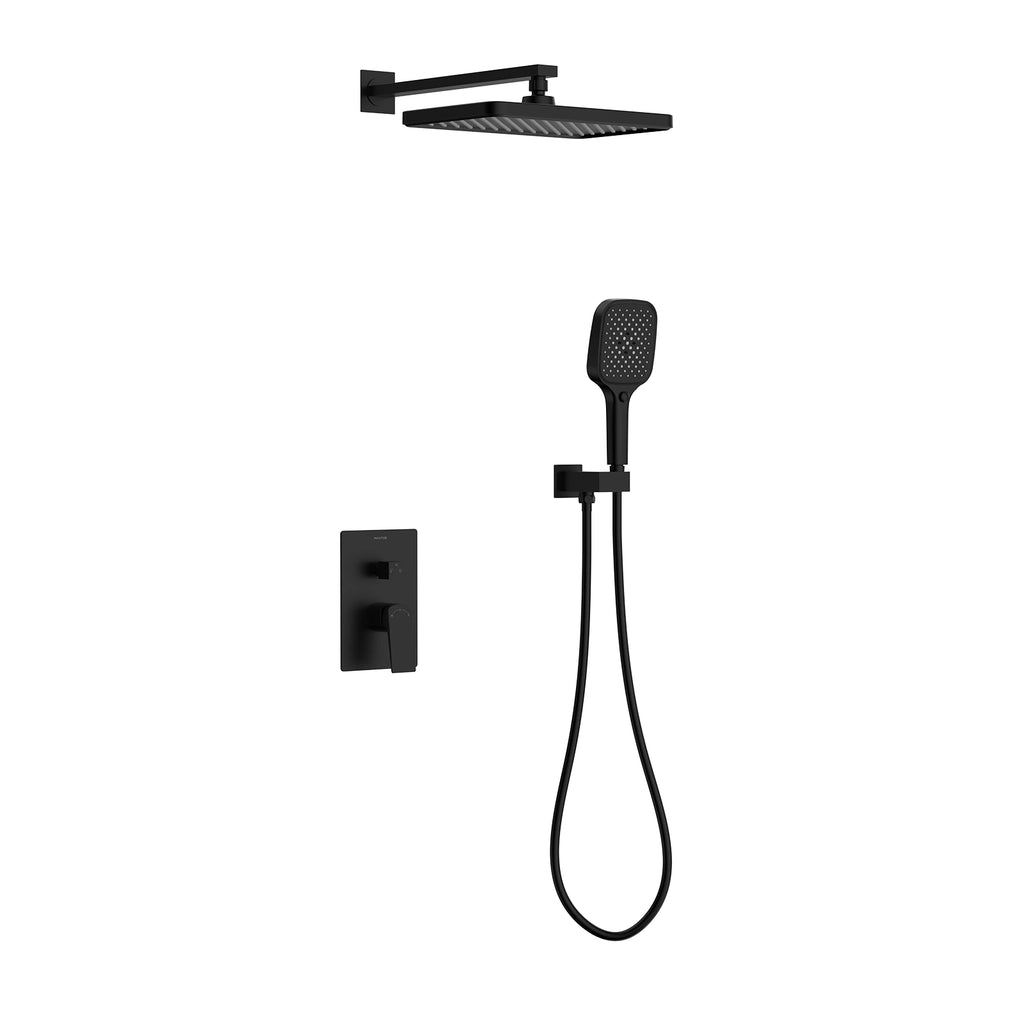

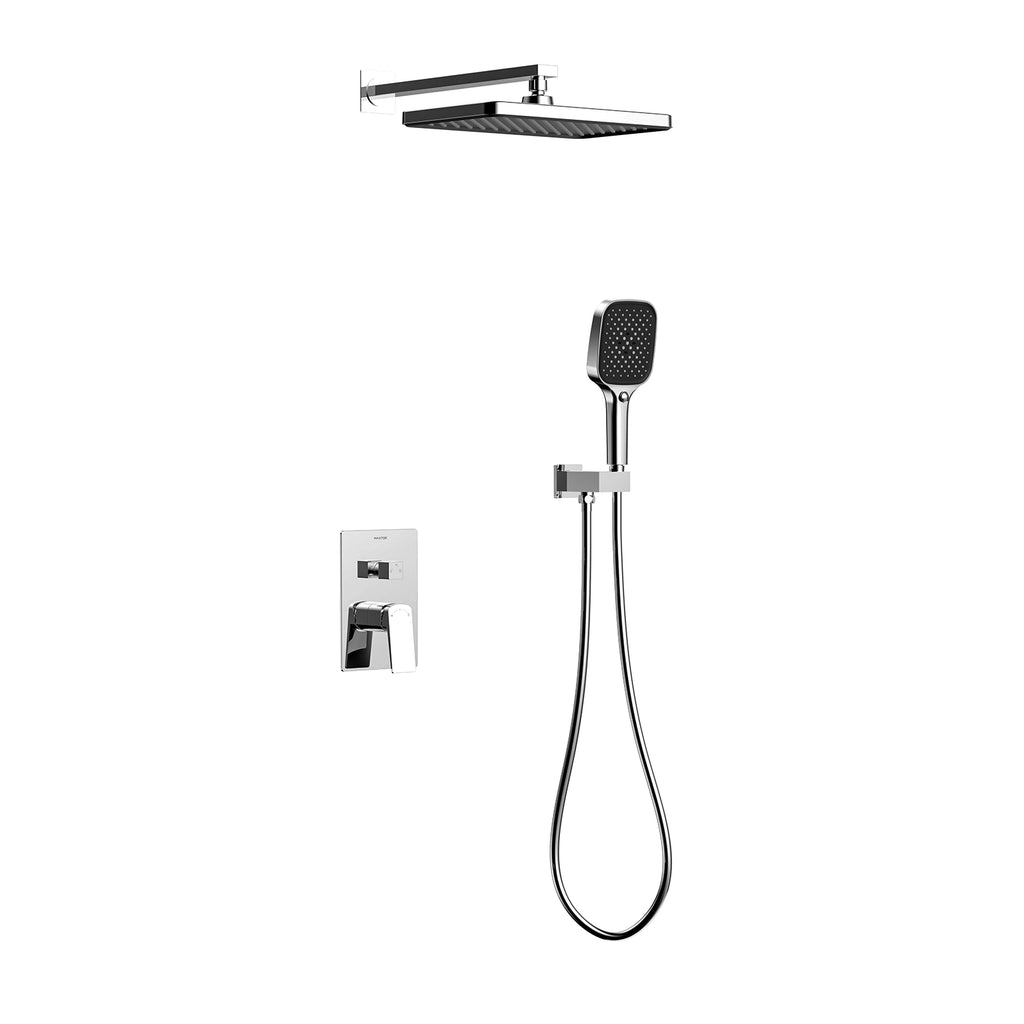

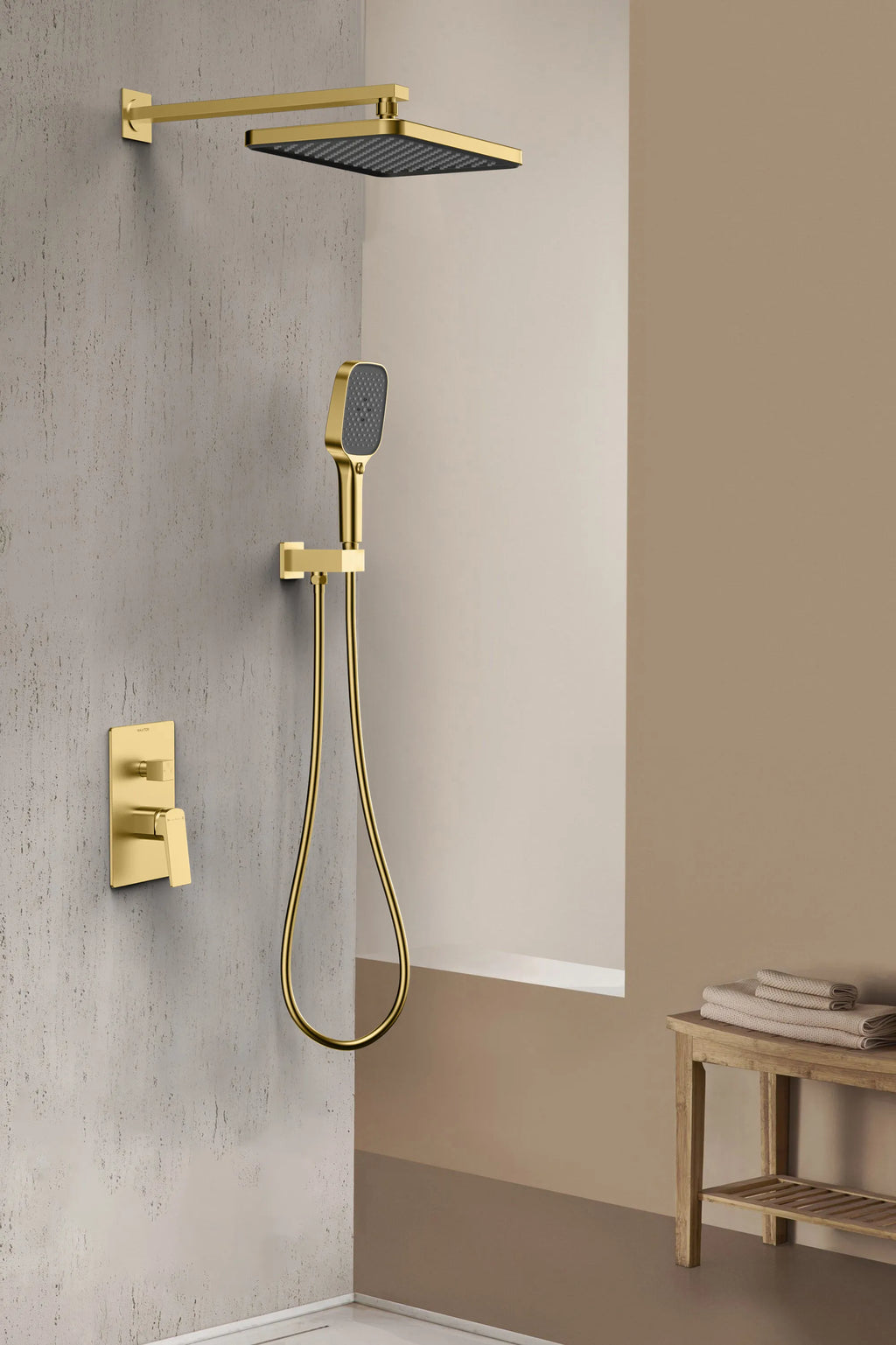

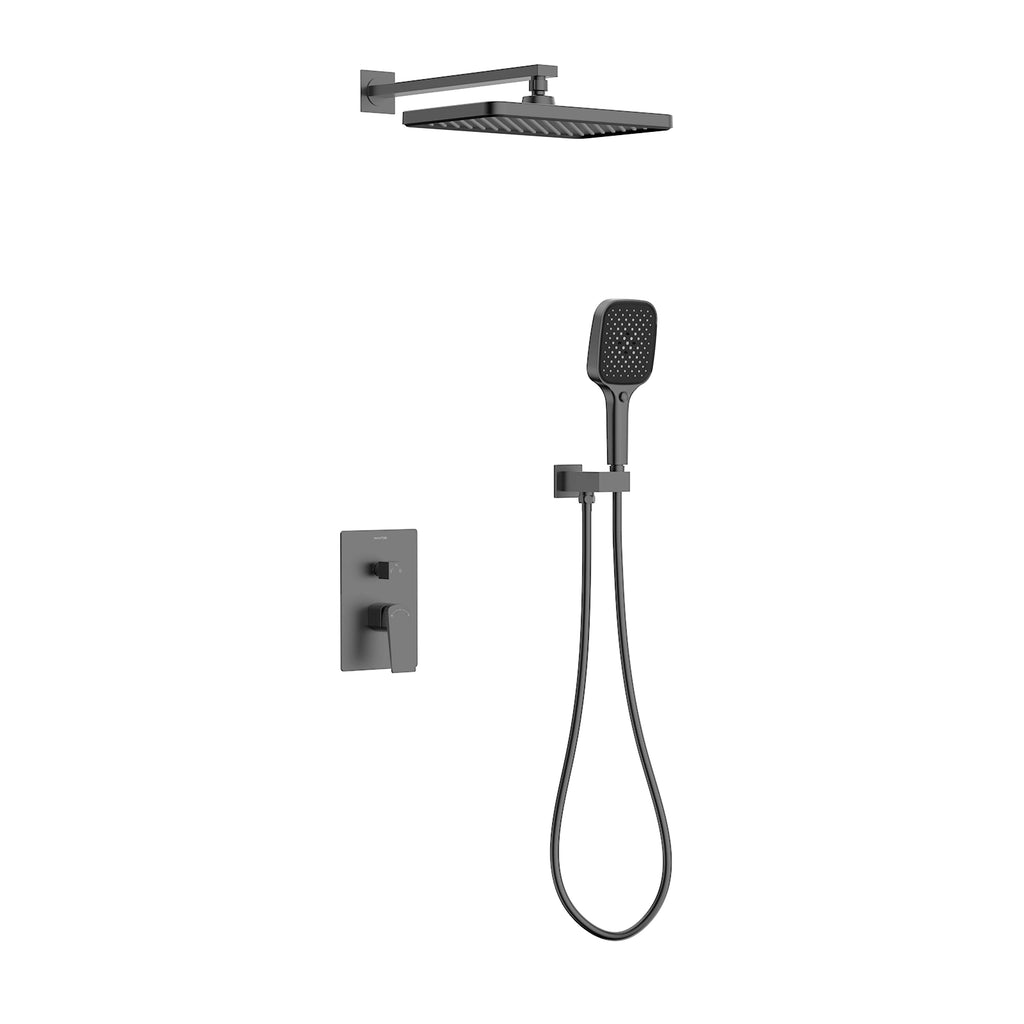

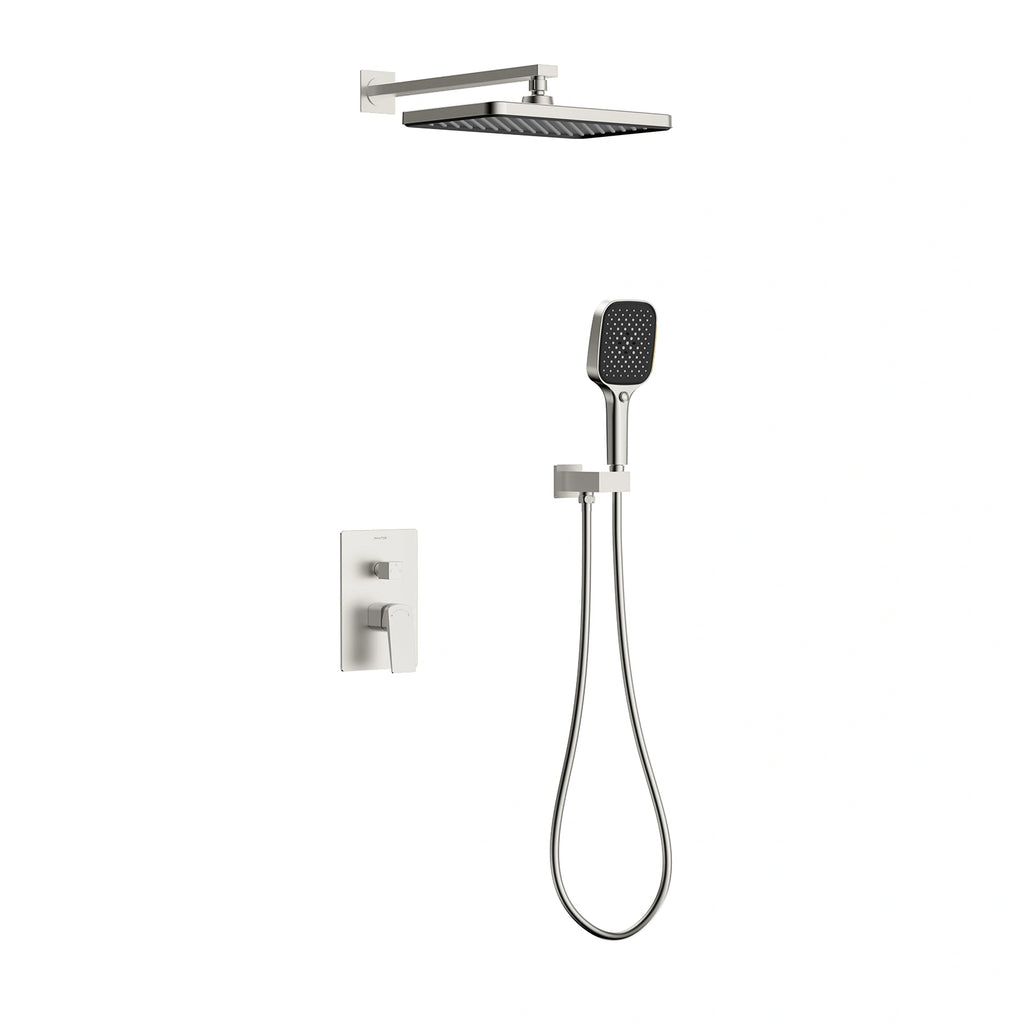

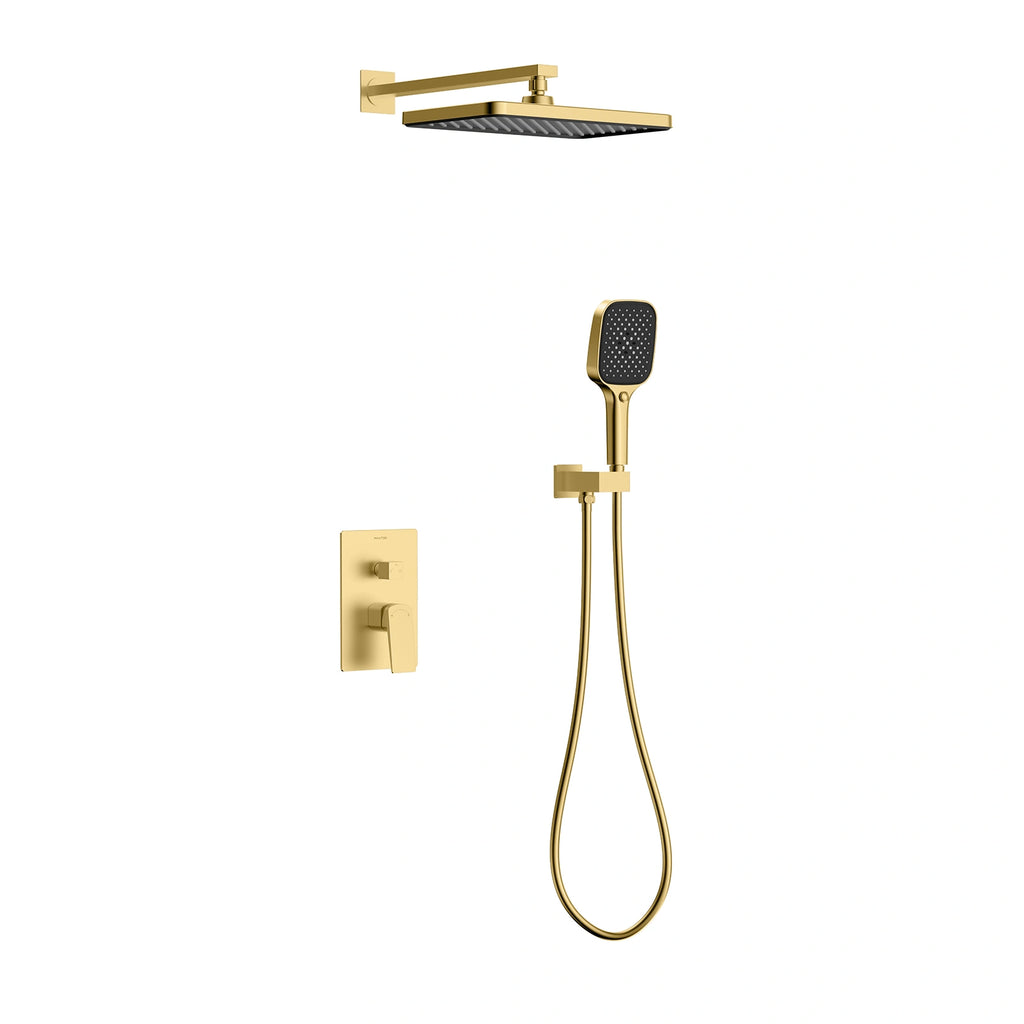

MAXTOR 2 Way Wall Concealed Pressure Balance Shower System with Overhead Rain Shower & Hand Shower-AB502065

2 way wall concealed shower system combines a square overhead rain shower with a convenient hand shower for everyday flexibility.
Solid brass rough-in shower valve with integrated box and trim plate kit, suitable for USA, Australia and New Zealand low-lead brass requirements (≤0.25% Pb where required).
Spain CITEC 35 mm ceramic cartridge, tested to over 500,000 cycles for long-lasting, leak-free performance.
Single lever metal handle provides precise control of both water flow and temperature for a comfortable showering experience.
Quality ceramic diverter with metal hand-wheel makes switching between overhead shower and hand shower smooth and intuitive.
200 × 150 × 2 mm SUS304 stainless steel escutcheon plate offers a slim, modern appearance that sits flush to the wall.
3-function SUS+ABS handheld shower features touch-clean soft silicone nozzles for easy limescale removal.
Solid brass hand shower bracket with G1/2" inlet and outlet keeps the handheld shower secure while matching the mixer trim.
22 × 380 mm SUS304 shower arm with G1/2" inlet and outlet threads supports the overhead shower safely and resists corrosion.
320 × 210 × 12 mm SUS304 stainless steel swivel overhead shower with brass joint ball delivers a wide rainfall spray for spa-like relaxation.
1500 mm SUS304 stainless steel explosion-proof hose provides flexible, kink-resistant water supply to the hand shower.
Adjustable mixer box installation depth from 60 mm to 92 mm adapts easily to most wall constructions and saves plumbing time.
Designed for simple, secure installation to reduce labor cost while delivering a clean, built-in architectural look.
Packed in a protective white or brown export box with EPE to minimize damage during transport and handling.

MODEL: AB502065GM

VIEW THE WHOLE COLLECTION

Original:

$965.44 USD

Product Feature
Documents & Specs
Q&A

This 2 way wall concealed pressure balance shower system pairs a solid brass rough-in valve and box with a wide stainless rain shower and 3-function hand shower, giving homeowners a minimalist built-in look and reliable, comfortable performance.

Material: Solid brass rough-in valve and trim; SUS304 stainless steel overhead shower, shower arm, escutcheon and hose; SUS+ABS hand shower.
Cartridge: 35 mm Spain CITEC ceramic cartridge, past 500,000 cycle testing for drip-free operation.
Functions: 2 way diverter – overhead rain shower / hand shower outlet.
Overhead Shower: 320 × 210 × 12 mm SUS304 stainless steel head with swivel brass joint ball and touch-clean silicone nozzles.
Hand Shower: 3-function SUS+ABS handheld – rain, massage spray and mixed spray.
Shower Arm: 22 × 380 mm SUS304 stainless arm with G1/2" inlet and outlet threads.
Valve Box: Brass pressure balance valve with protective box; adjustable installation depth 60–92 mm.
Hose: 1500 mm SUS304 stainless explosion-proof hand shower hose.
Bracket: Solid brass wall-mounted hand shower bracket with G1/2" inlet and outlet.
Control: Single lever metal handle for water flow and temperature; ceramic diverter hand-wheel for outlet selection.
Finishes: Chrome, brushed nickel, brushed gold, gunmetal, matte black (or as specified).
Installation: Wall concealed rough-in with trim plate; standard G1/2" plumbing connections.
Packaging: Supplied in white or brown export box with EPE inner protection.
Residential bathrooms upgrading from exposed shower mixers to a clean concealed rain and hand shower system.
Hotel and serviced apartment projects seeking a durable, easy-to-use built-in shower set with modern square design.
Renovation jobs replacing old concealed valves with a complete new box-and-trim kit to simplify installation.
Guest bathrooms or ensuites where a hand shower is needed for flexible rinsing and easier cleaning.
Design-focused bathrooms coordinating with MAXTOR square basin mixers, tub fillers and accessories in matching finishes.

MAXTOR 2 Way Wall Concealed Pressure Balance Shower System with Overhead Rain Shower & Hand Shower

Ab502065 drawing

Q1: Does this concealed shower system include everything I need for the shower area?

A1: Yes. The kit includes the brass rough-in valve with box, trim plate, overhead stainless rain shower, shower arm, 3-function hand shower, brass bracket and stainless hose.

Q2: Is the valve pressure-balanced and safe against sudden temperature changes?

A2: The Spain CITEC 35 mm ceramic cartridge and brass body are designed to provide stable mixing, helping to reduce sudden changes in outlet temperature when someone uses another tap.

Q3: Can this system be installed in a standard stud wall?

A3: Yes. The mixer box offers an adjustable installation depth from 60 mm to 92 mm, making it suitable for most stud walls and solid walls with tiles.

Q4: How do I switch between the overhead shower and the hand shower?

A4: Simply turn the ceramic diverter hand-wheel on the trim plate. It directs water either to the overhead rain shower or to the hand shower outlet.

Q5: Are the shower heads easy to clean and maintain?

A5: Both the overhead and hand shower use touch-clean soft silicone nozzles, so you only need to rub them with your fingers to remove limescale and keep the spray pattern clear.
